A studio rack for outboard gear is a 19-inch EIA-standard enclosure that mounts your preamps, compressors, EQs, reverbs and channel strips in vertical rack space, so they sit square, vent properly, and do not get levered against their rear connectors. One rack unit (1U) equals 1.75 inches, which is 44.45mm, and that single number is what makes the whole sizing conversation simple or impossible depending on whether you know it going in.
I have spent the last few months living with these racks in a small project studio, moving the same chain of preamps, a bus compressor and two channel strips between an open frame, a carpeted cabinet and a rolling case as the room changed. The gear never changed. What changed was depth, cooling and whether I could reach the knobs without standing up, and those three things are what this roundup is built around.
Outboard gear is the hardest thing in a studio to shelve properly. Every unit has its own heat output, its own transformer weight, and its own idea of how much rear clearance it needs for the cable to bend without loading the connector. Stack those units on a piano-style shelf and you get resonance, blocked exhaust vents and cables pulled tight behind. A real rack fixes all three at once, and choosing the right form factor matters more than the brand on the head.
While you are planning where this gear ends up, it is worth getting the monitoring side sorted too, since an outboard chain only helps if you can hear what it is doing. Our picks for the best studio monitors cover the other half of that signal path, and our studio headphone picks are the right way to audition a compressor while you are dialing it in without waking anyone.
Top 3 Picks for Best Studio Racks for Outboard Gear (October 2026)
Three racks earn the right to lead this list. The first is the deepest, most fully equipped case and it is where a full outboard chain ends up. The second is the value pick that most home studios should actually buy. The third is the best-rated shallow case in the group for wireless and IEM gear.
Gator GR-12L 12U Rack Case
- 19.25 inch threaded rack depth
- Includes 64 rack screws
- Removable front and rear covers
AxcessAbles 12U Open Rack
- 550 lb load rating
- 18 inch depth
- Lockable 3 inch casters included
Diandian 4U Shallow Rack Case
- Internal shock mount
- 4U with 9 inch mounting depth
- Microphone compartments included
All 10 Best Studio Racks for Outboard Gear at a Glance in 2026
Here is every rack in this guide with the numbers that actually decide a purchase: how much rack space it holds, how deep it goes and what it can carry. The depth figure is the one to check first, because a rack that is too shallow cannot be fixed with an adapter.
| Product | Specifications | Action |
|---|---|---|
| Gator GR-12L 12U Rack Case |
|
Check Latest Price |
 Sound Town 12U Plywood Road Case |
|
Check Latest Price |
| AxcessAbles 12U Steel Open Frame Rack |
|
Check Latest Price |
| Diandian 4U Shallow Rack Case |
|
Check Latest Price |
 Griffin 19U Rolling Rack Stand |
|
Check Latest Price |
 Gator GR-STUDIO-12U Wooden Cabinet |
|
Check Latest Price |
 VEVOR 12U AV Rack Stand |
|
Check Latest Price |
 RIVECO 12U Desktop Open Frame Rack |
|
Check Latest Price |

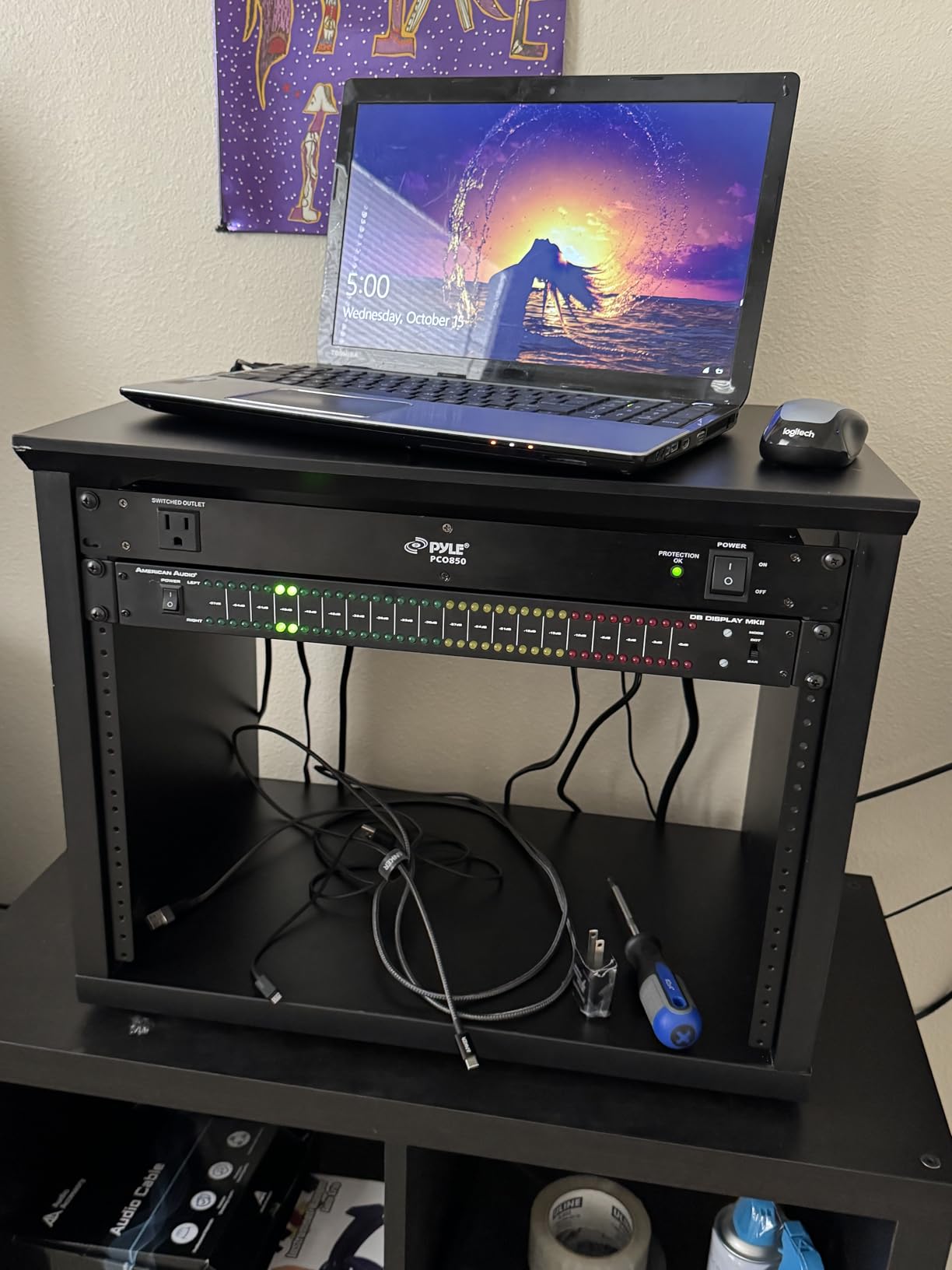

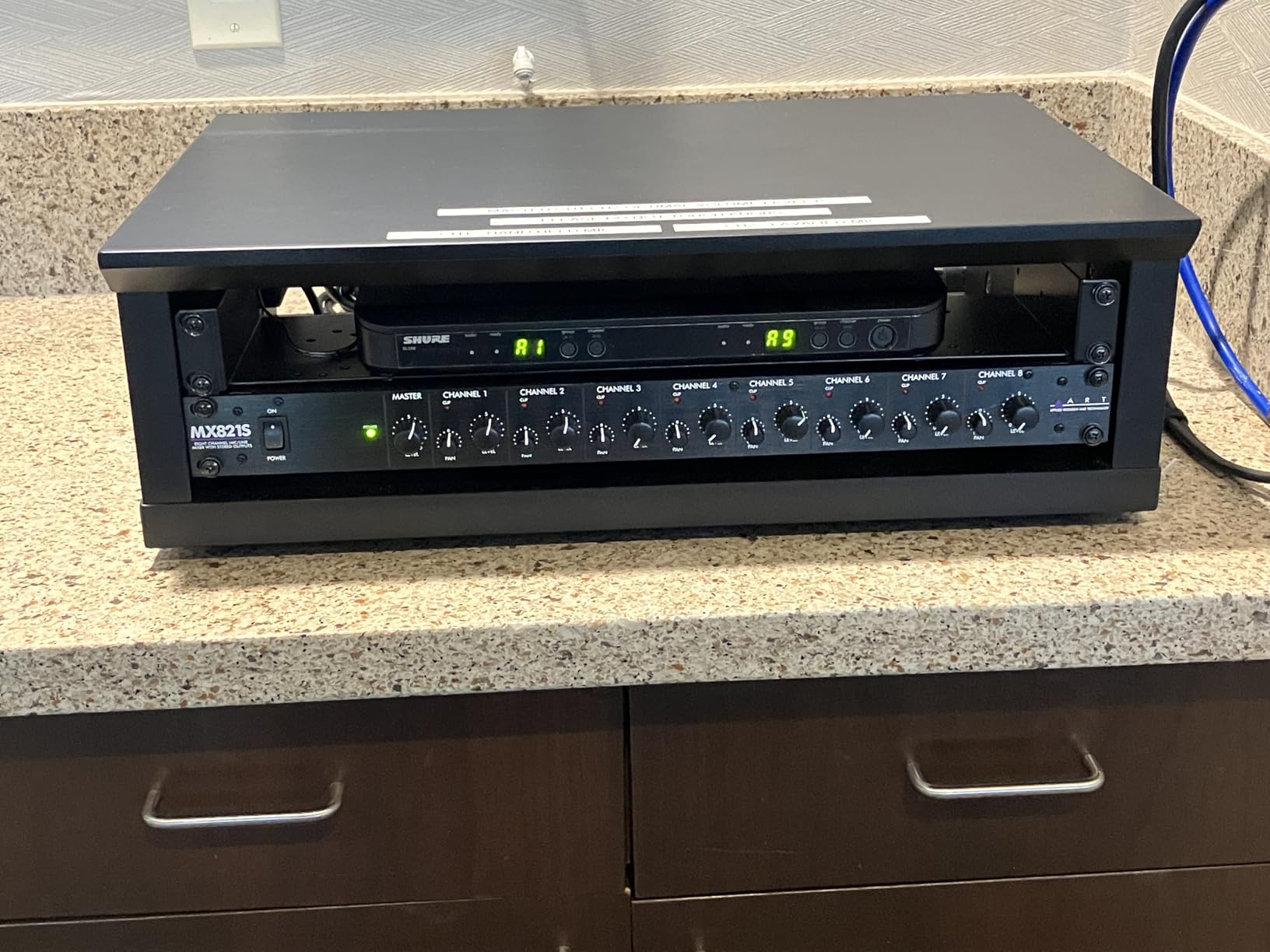

 Gator Frameworks Elite 2U Desktop Rack |
|
Check Latest Price |

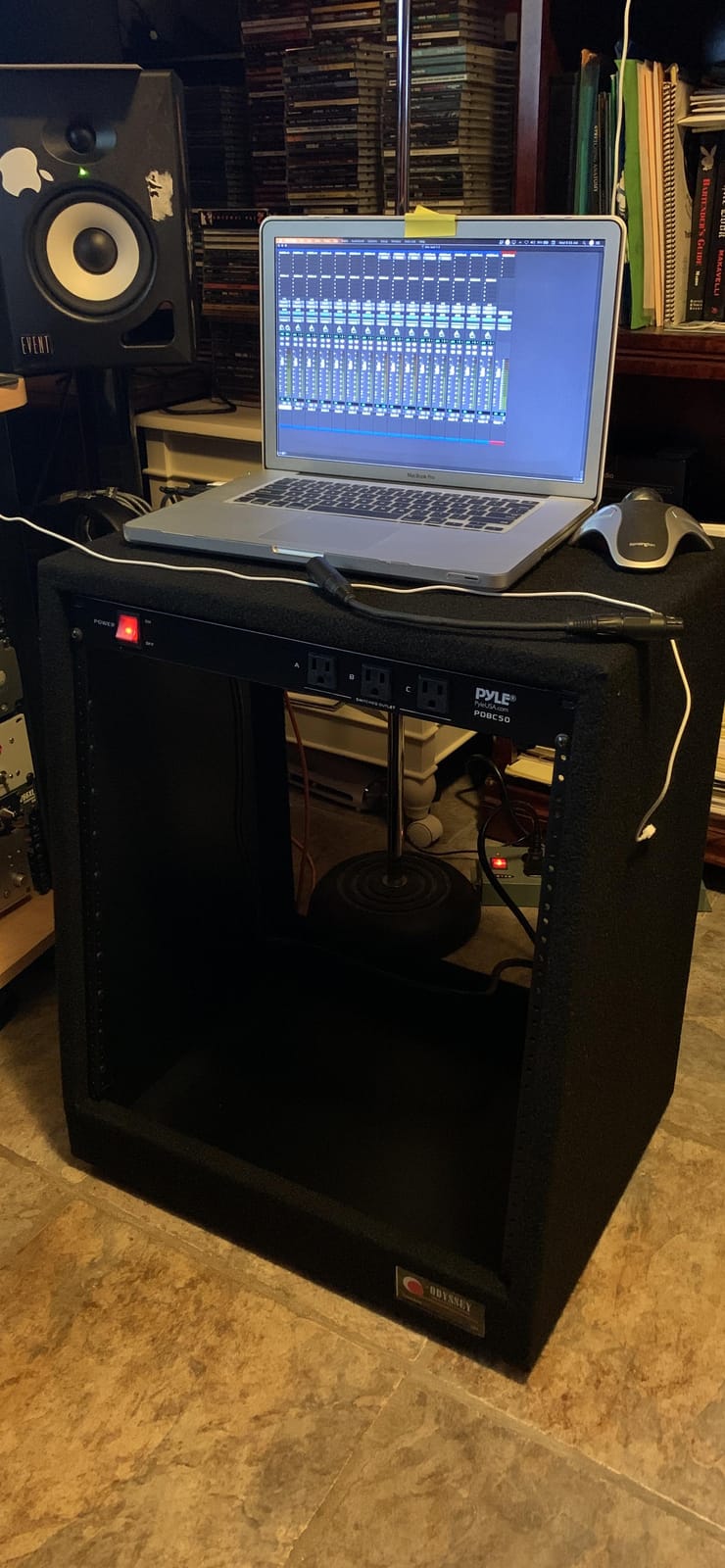

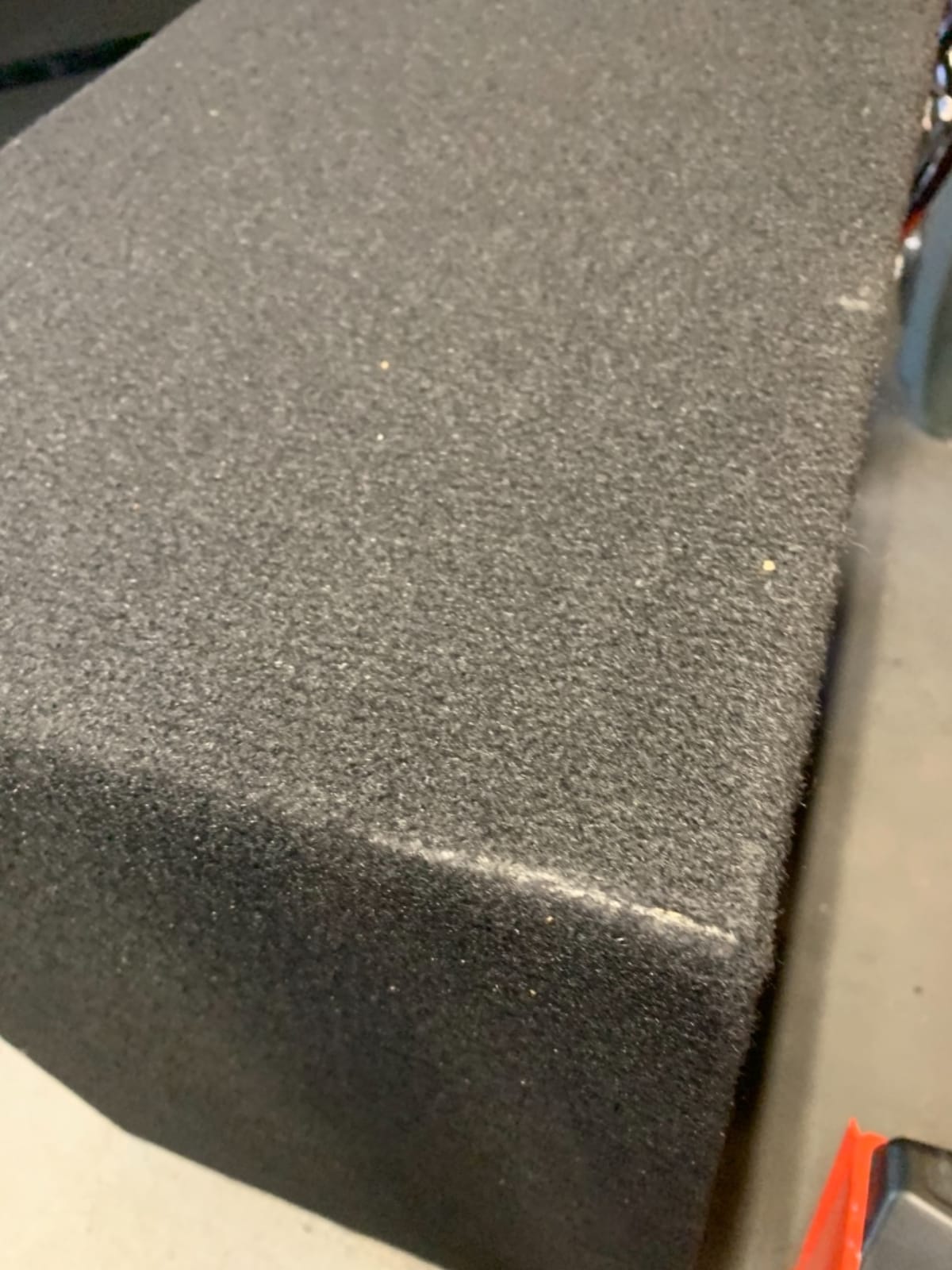

 Odyssey CRS12 Carpeted Slant Rack |
|
Check Latest Price |

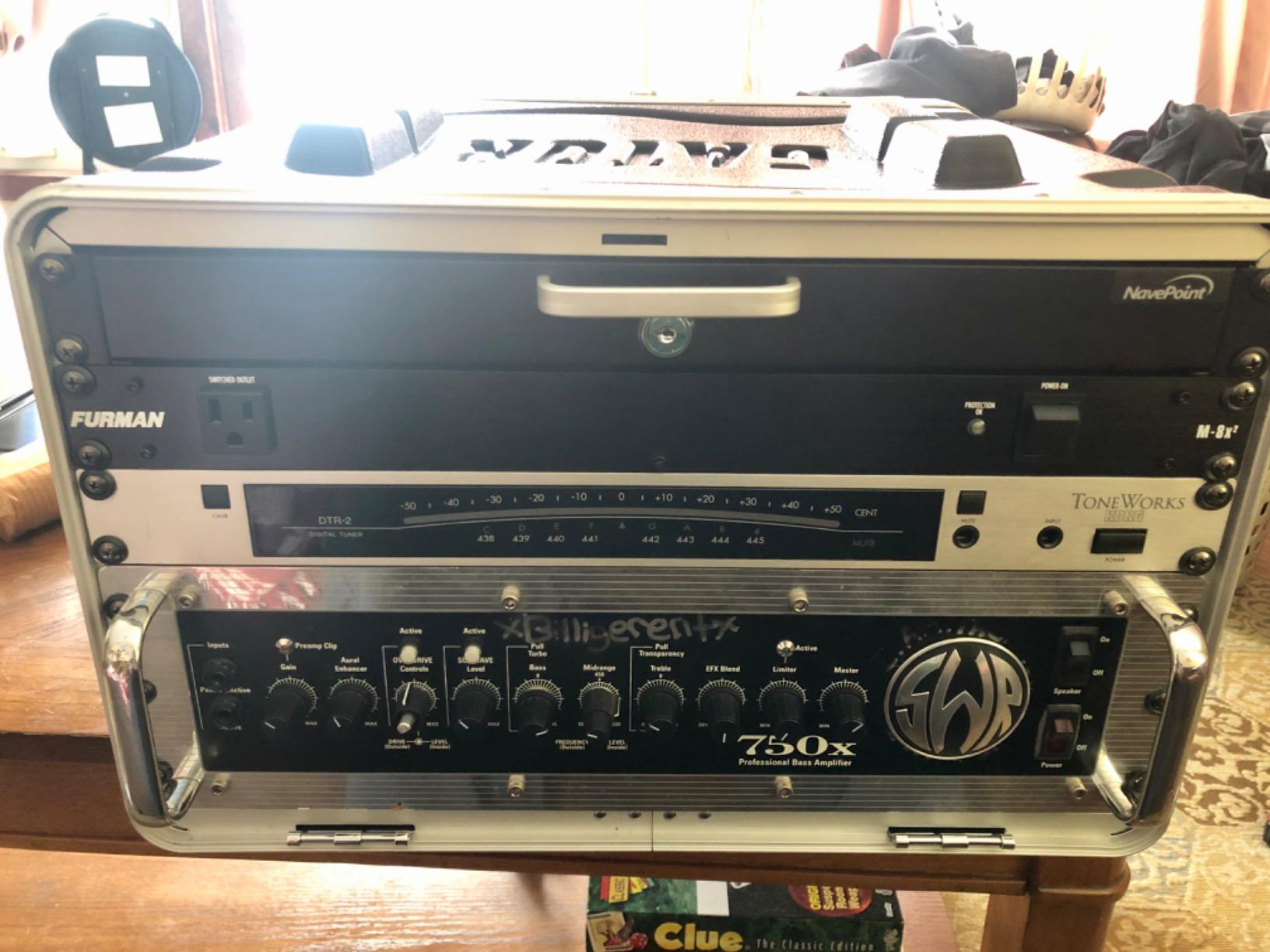

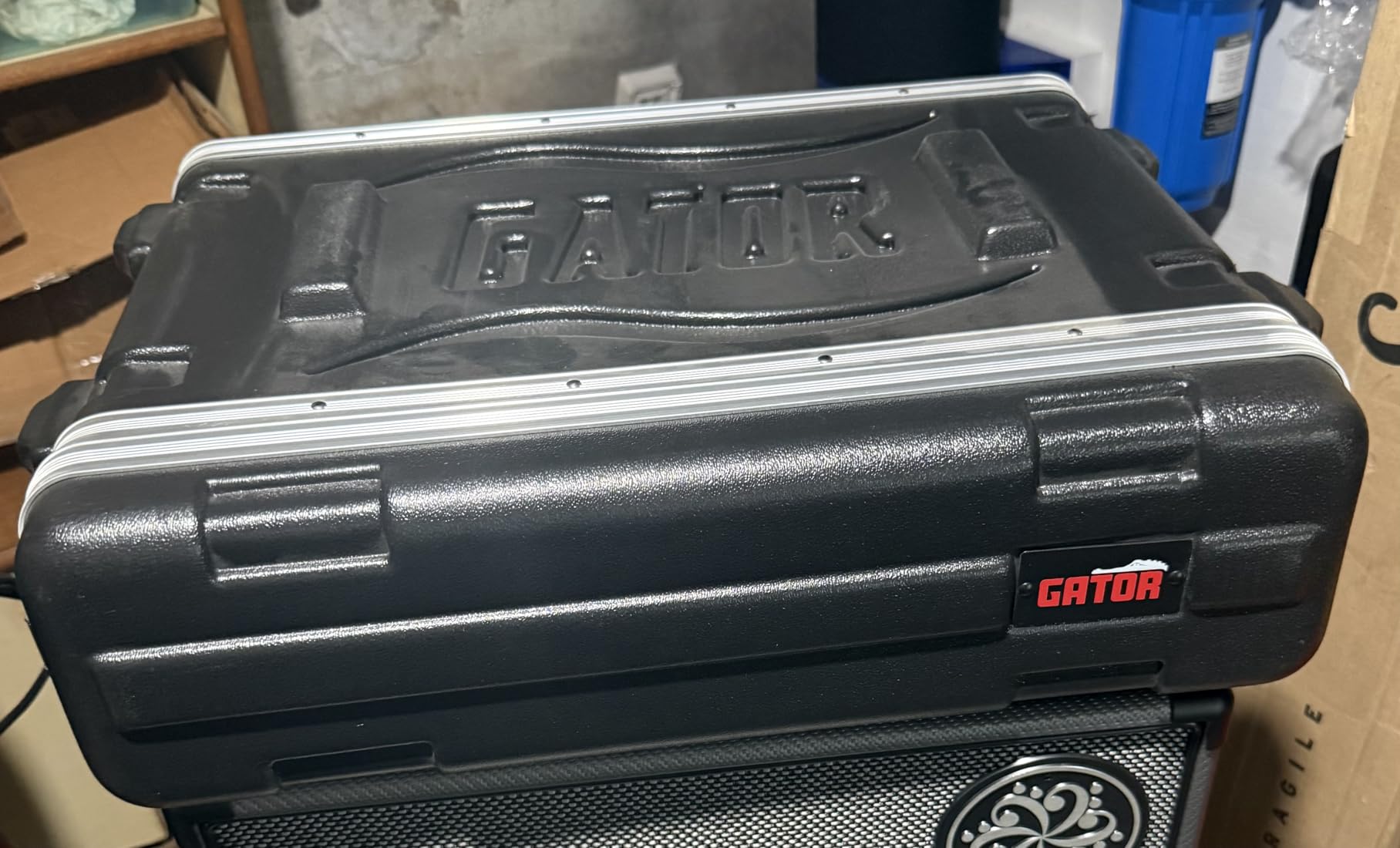

1. Gator GR-12L 12U Rack Case – Full Depth and Ready Screws
Gator Cases Lightweight Molded 12U Rack Case with Heavy Duty Latches, Standard 19.25″ Depth (GR-12L)
12U
19.25 inch rack depth
22 lb ABS case
64 rack screws included
Limited lifetime warranty
Pros
- Removable front and rear covers for fast rear patching
- Threaded field-replaceable steel rack rails at standard spacing
- Includes a full pack of 64 rack screws
- Deep 19.25 inch rails accept most outboard units
Cons
- Molded ABS shell protects less than a plywood cabinet
- 22 lb empty weight and full depth demand real floor space
This is the rack I ended up keeping. The 19.25 inches of rackable depth is the reason, and it is worth dwelling on: almost every shallow shelf-style rack in a home studio runs out to somewhere between 11 and 13 inches, which is not enough for a lot of the preamps, reverbs and channel strips people already own.
The rails are threaded and field replaceable rather than a pressed steel strip with plastic inserts, so a stripped hole is not a dead rack. That matters more than it sounds when you are re-racking the same unit four times while you rearrange the room, which is roughly what I did over two months.
One pack of 64 rack screws is included. That is more than most racks in this guide include and it removes the single most common reason a new rack sits half-built in a corner for a week. The front and rear covers are both removable, so the back of the chain is reachable without dragging the whole case into a different position.
Weighing in at 22 pounds empty, it is not a case you carry up stairs one-handed, but it is light for a full-depth 12U enclosure. The twist latches are heavy duty and I have not had to re-seat a cover after moving the rack twice across the same floor.
What fits this rack that will not fit a shallow one
Anything up to roughly 19 inches deep with standard 19-inch rack ears, which covers the majority of full-size outboard preamps, most 2U compressors and EQs, and channel strips. The removable rear cover means you can leave the case closed in a shared room and still get to the back for a re-patch without moving it.
The 12U count is the real limit on the whole build. Plan for six rack spaces of gear and six of breathing room, because a rack filled edge to edge with analog gear runs warmer than a half-empty one.
When to skip it
Skip it if the room is tight. At 22.75 inches deep by 19 inches wide by 21 inches tall, it claims a real square of floor and it will not tuck under a desk. It is also the wrong case if your gear is delicate enough that you want a solid wooden shell around it rather than a molded one.
Also skip the idea that this is a case you can move while loaded and casually. The covers and latches protect in a vehicle, but rolling a fully loaded 12U case across a threshold is still the moment a rack tips.

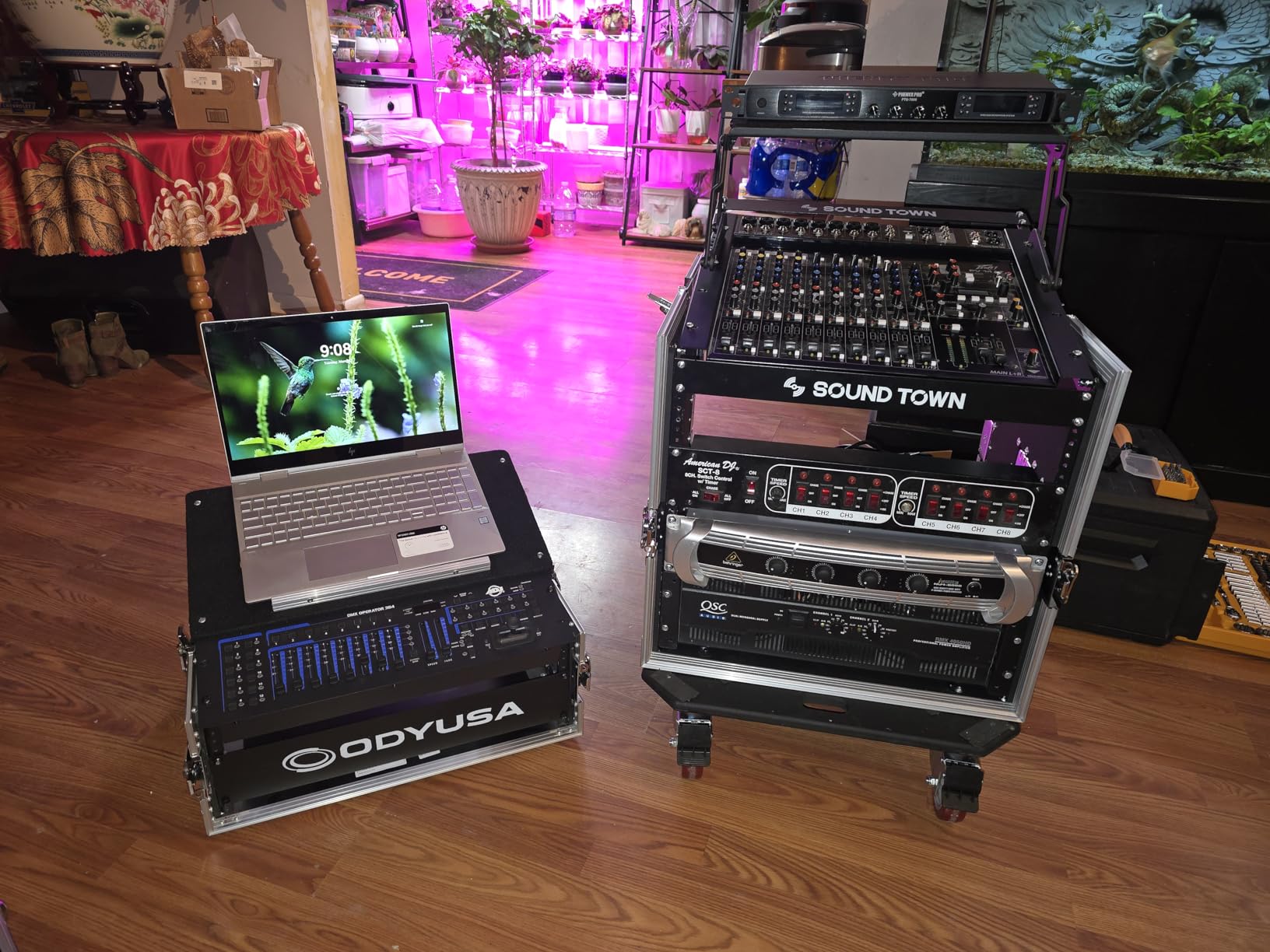

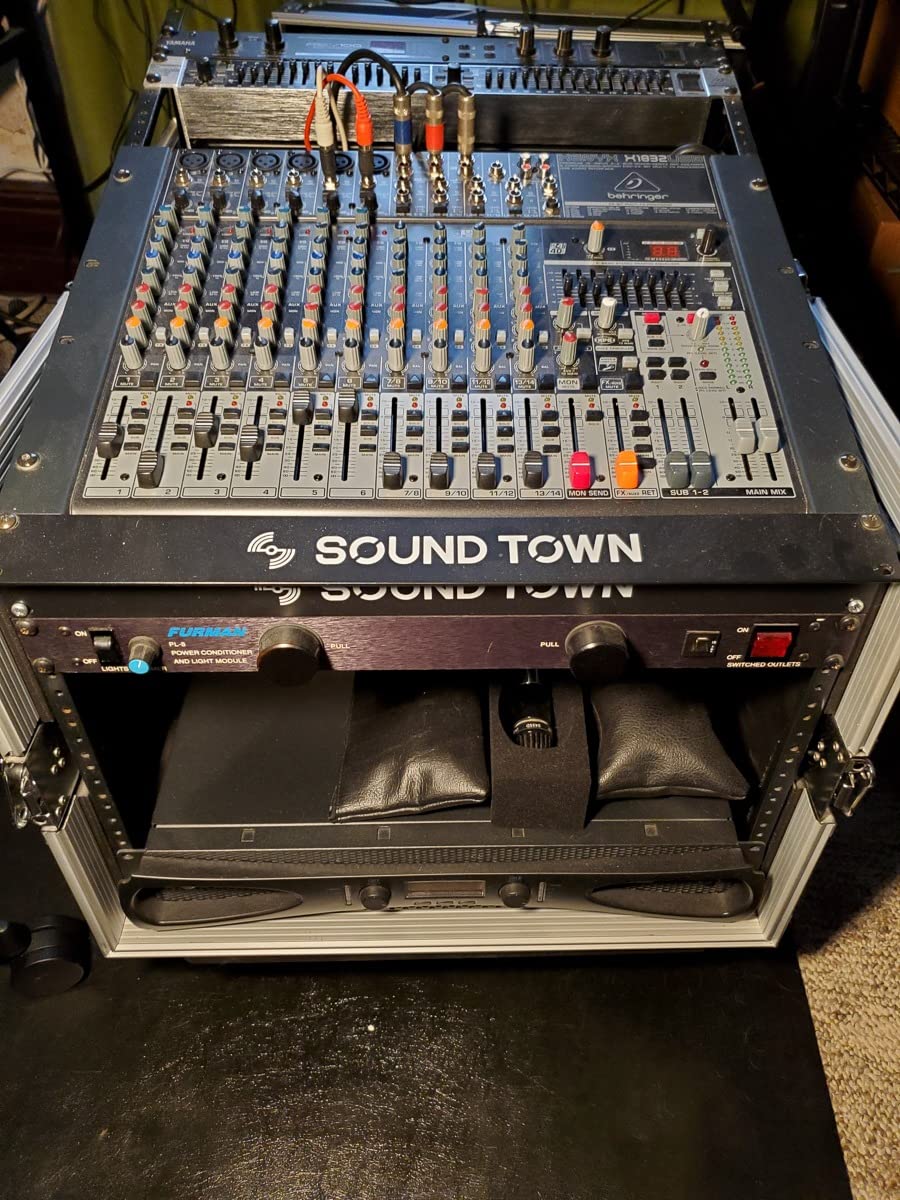

2. Sound Town STMR-S12UWT 12U Plywood Case – Built to Move
Sound Town Enhanced 1/2″ (12mm) Plywood 12U PA DJ Rack/Road Case with 11U Slant Mixer Top, 20’’ Rackable Depth, DJ Work Table and Casters, 12-Space ATA Case, Pro Tour Grade (STMR-S12UWT)
12U plus 11U slant top
20.2 inch rackable depth
Half inch plywood
Steel corners and casters
Pros
- Half inch plywood with aluminium edges and steel corners
- 20.2 inch rackable depth with lids on
- 11U slant mixer top with seven tilt positions
- Casters and recessed rubber-grip handles
Cons
- Bulky road-case format takes real floor space
- The slant top uses space that could have held rack gear
This one is built differently from most of the studio racks here. It is a tour-grade road case rather than a studio rack, with half inch plywood, aluminium edging and steel corners, and the first number on the spec sheet that matters for outboard work is 20.2 inches of rackable depth with the lids on.
Take the lids off and you drop to 17.8 inches, which is still deeper than most home studio racks and still clears a lot of 2U outboard hardware. That distinction between covered and uncovered depth is unusual to see stated so plainly.
The 11U slant mixer top is where this case earns its keep for a mobile rig. Seven preset tilt angles plus a fold-out side table means the mixer sits at a working angle and you are not holding a laptop on a music stand next to it. For a fixed studio that top is simply space you are not using for rack gear, and you need to plan around that honestly.
Compared with the 9mm plywood used in many standard cases, the half inch build here is the reason to trust it in a van. Four casters and recessed rubber-grip handles are fitted as standard, so moving a loaded cabinet is a two-person job rather than a negotiation with floorboards.
Why a mobile rig should pick this one
Editors who load out to location regularly will not get the protection from an open frame no matter how stiff the steel is, and this is the most aggressively built for a vehicle of the ten we reviewed. The plywood and steel corner package is what survives a load-in, not just a load-out.
It also solves a workflow problem. Having the mixer on an angled top at a set height means the same person can patch and monitor without crouching, which on a small crew is the difference between a fast setup and a slow one.
When a fixed home studio should pass
Pass if the rack will live in one spot. The bulk and the road-case hardware add nothing to a static installation, and the mixer top is dead space for a signal chain that is just preamps, a compressor and an EQ.
Pass if floor area is tight, because the depth that makes it touring-ready is exactly what makes it awkward in a small control room. Decide the room first, then the rig.

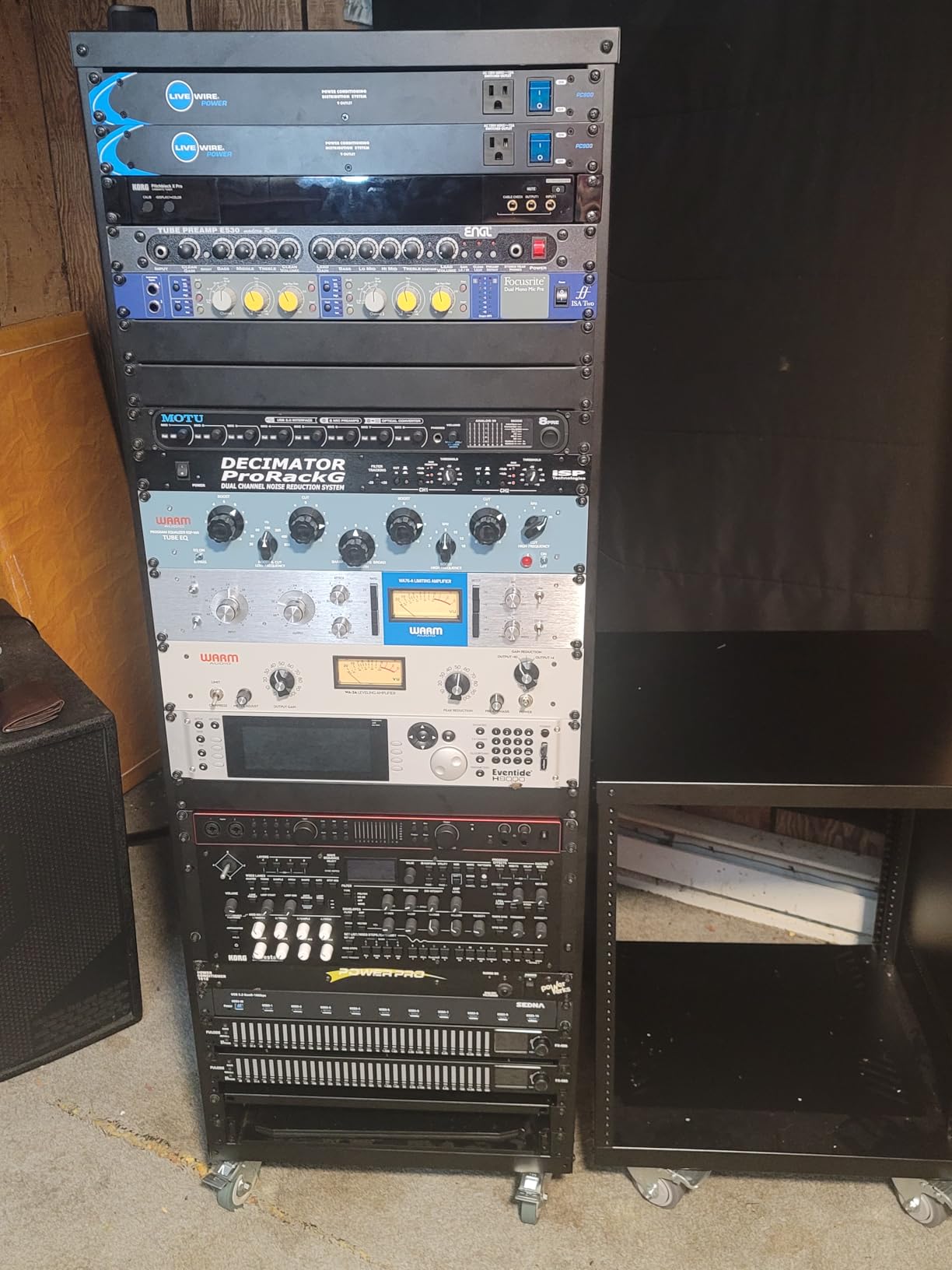

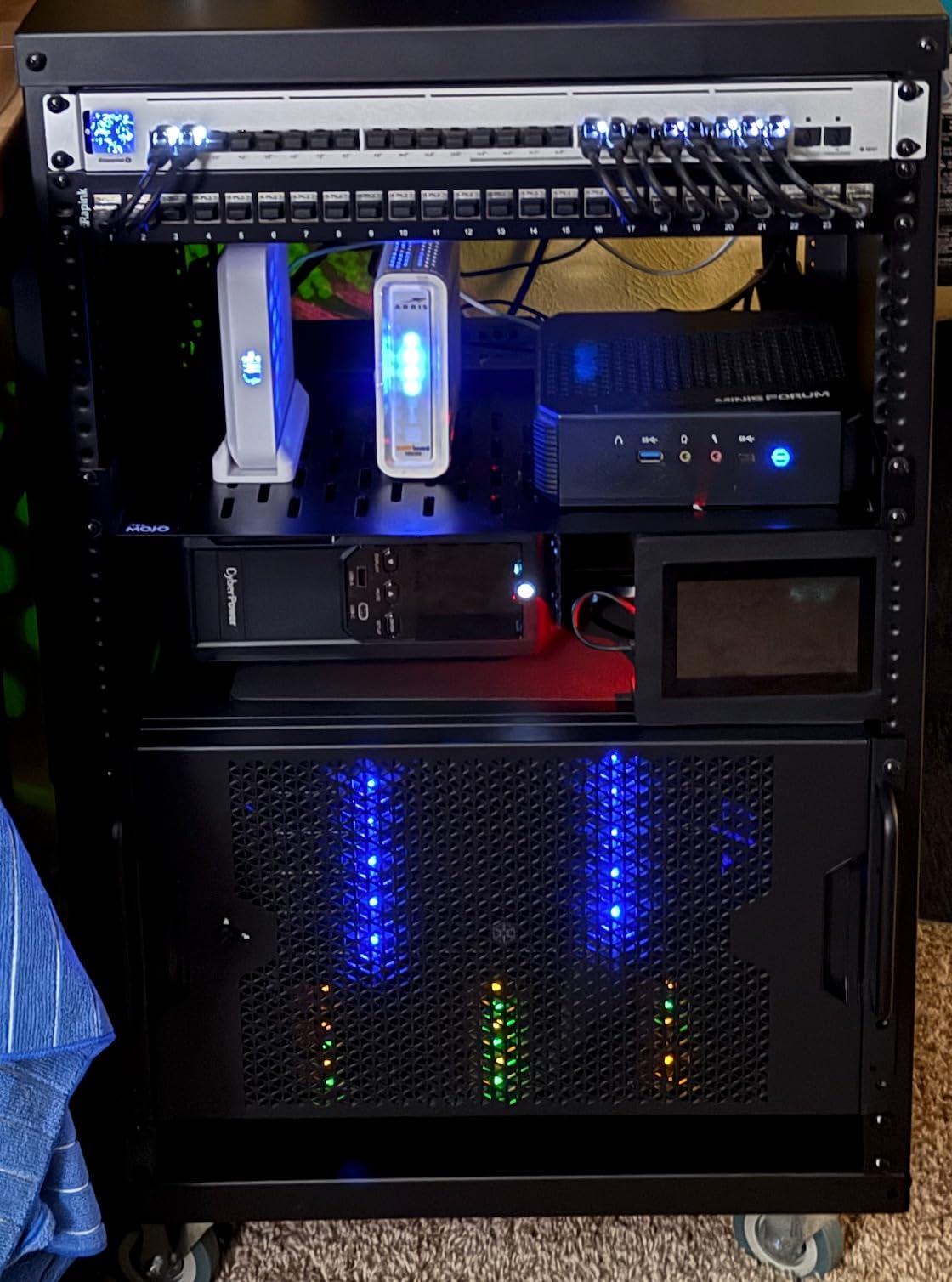

3. AxcessAbles RK12U 12U Open Frame – The One Most Studios Should Buy
AxcessAbles 12U Network Rack with Wheels – 500lb Capacity, 18″ Depth | 19-Inch Open Frame AV Rack Case with 3” Caster Wheels | Screws, Spacer, Tool Included
12U
550 lb load rating
1.5 mm alloy steel
18 inch depth
Lockable 3 inch casters
Pros
- 1.5 mm steel frame rated to carry a fully loaded outboard chain
- 18 inch depth clears most 2U outboard hardware
- Preinstalled lockable 3 inch industrial casters
- 34 rack screws
- a 1U blank and a tool included
Cons
- Bare open frame gives no physical protection if the rack is bumped
- 18 inch footprint is deeper than a compact studio cabinet
If you take one recommendation from this guide, take this one. An 18-inch-deep 12U open frame rated to 550 pounds, on lockable industrial casters, with the fasteners in the box, covers the majority of real outboard builds and it is the hardest to outgrow.
Open frame is a feature, not a compromise, for this use. You get 360-degree access to the front and back, so re-patching a signal chain does not mean sliding a unit halfway out to reach its rear connectors. With dense analog gear that runs warm, airflow on all sides is worth more than a pretty shell.
Reviewers consistently single out the steel frame stiffness for the money, and the 1.5 mm alloy steel is the reason the load rating is as high as it is. At 36 pounds empty it is heavy enough not to walk across a carpet when a channel fader gets nudged, which is a real problem with lighter open racks.
Three inch casters are preinstalled and lockable. That matters more than it looks: a rolling rack on small casters gets caught on carpet pile and tips, and being able to lock it is the difference between a rack you can move and one you leave where it is.
How to know 12U is the right size
Count the gear you own now, not the gear you plan to own. Six rack spaces of preamps, a compressor, an EQ and a channel strip will fill 10U on its own, and 12U leaves room for blank panels and a shelf without a second purchase.
Depth is the number to check next. At 18 inches, this rack accepts most 2U outboard units straight out of the box, which is where shallow desktop racks start refusing gear.
Who should skip the open frame
Skip it in a live room where a stray bag or a chair is a normal event. There is nothing between the gear and the impact, and outboard transformers are the first thing to suffer.
Also consider whether a full rack of 1U and 2U hardware is the right build at all. If you have two or three pieces, a small desktop rack keeps the signal chain at arm’s reach and off the floor entirely.

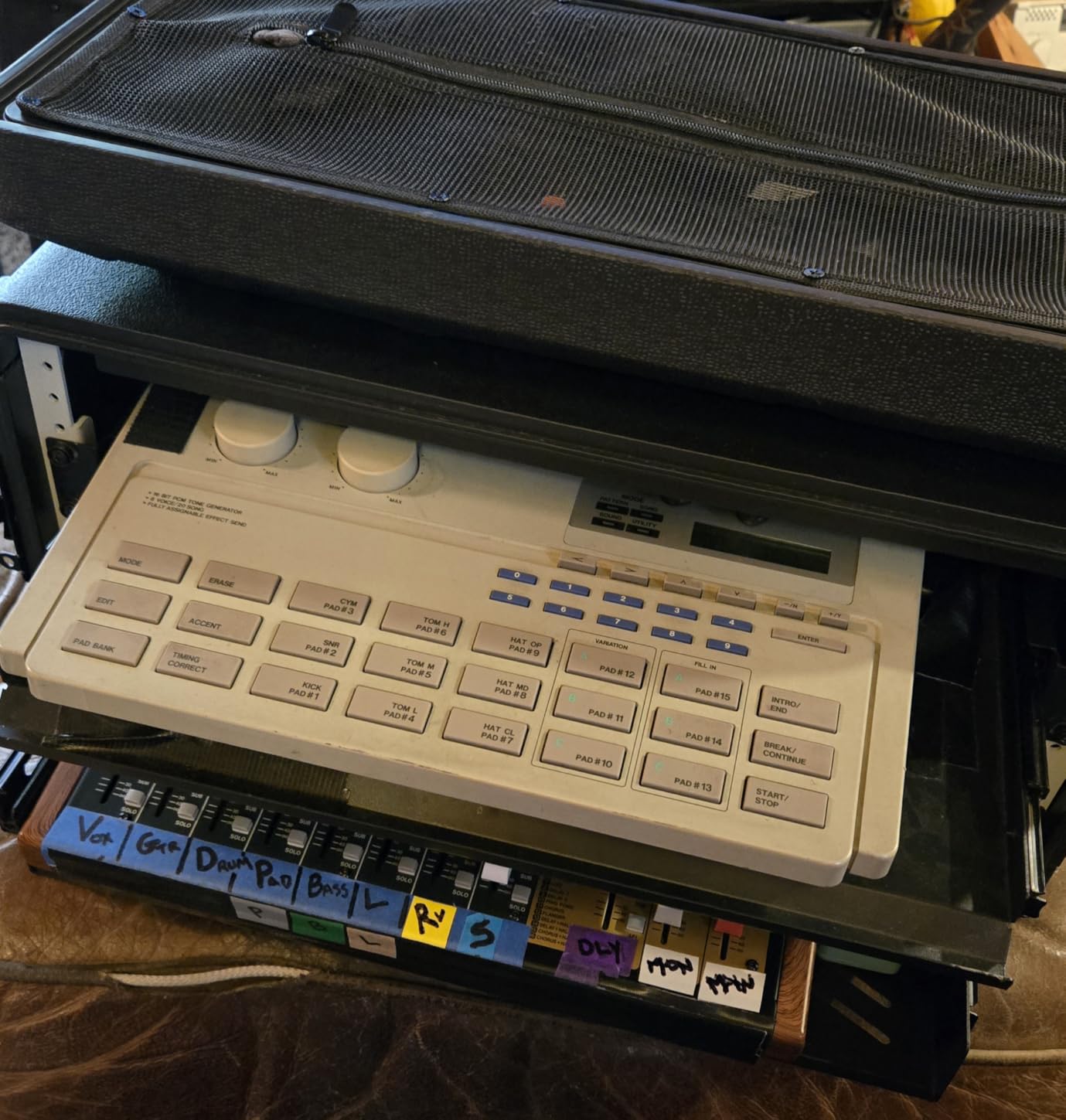

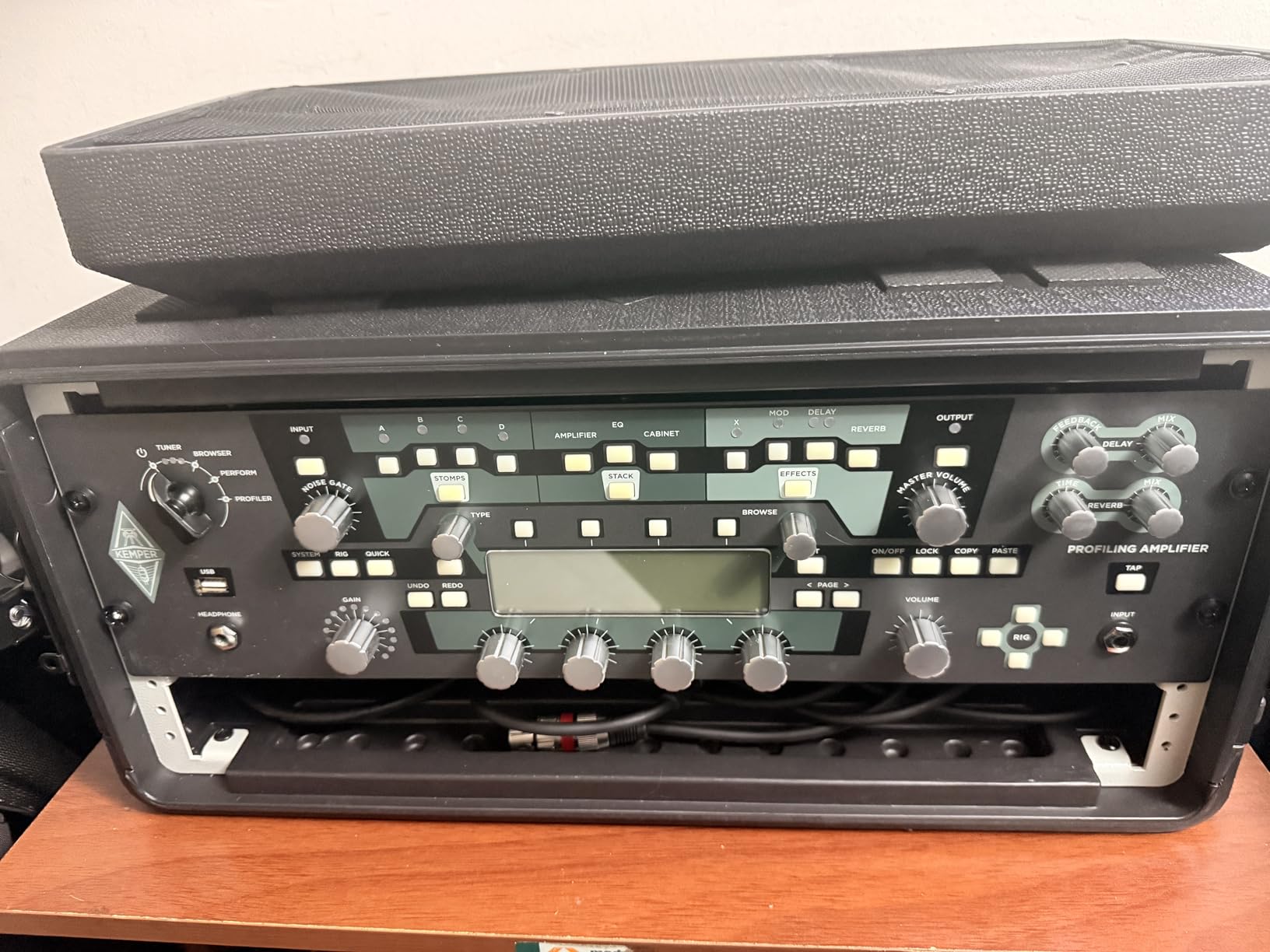

4. Diandian PL-2U260D 4U Case – Best Rated and Built for Wireless
Diandian 4U Rack Case Shallow 11″ Depth, Rackmount Flight Case Shock Mount
4U
9 inch mounting depth
HDPE shell with shock mount
12.1 lb
Rack screws included
Pros
- One of the highest average ratings in this group at 4.6
- Internal shock mount dampens vibration during transport
- Microphone compartments and rear mesh storage included
- Light at 12.1 pounds for a protective case
Cons
- Only 4U
- so it holds accessories rather than a signal chain
- Cubic 19 inch footprint wastes floor space for the rack space it gives
This is one of the highest rated racks in the guide at 4.6 across 323 reviews, and the reason it holds that score is that it is honest about what it is. It is a compact pro audio case for wireless systems, in-ear monitor racks, small amps and processors, not a miniature studio rack.
Four rack spaces is genuinely limiting if you are building an outboard signal chain. Where it is very good is a wireless rig: a 4U case next to the stage box holding receivers, a distro and a couple of small amps, then carried to the rehearsal room and back.
The internal shock mount is the feature that gets mentioned most in reviews, and it is what separates this from a plain plastic box. Rugged high density polyethylene, reinforced rails and recessed latches take a lot of handling before anything inside shifts.
Removable front and rear covers open up the whole case, and the built-in microphone compartments plus rear mesh storage are the reason people keep buying it a second time for a different job.
What actually fits inside 4U
Rackable wireless receivers, in-ear monitor racks, compact signal processors, small amplifiers and a controller will all fit, and the included rack screws mean you can mount them straight away. Two shallow amps plus a distro is a realistic and very common build.
The 9 inch mounting depth is the number to check against your gear. It suits compact wireless and IEM hardware comfortably, and it will reject anything with a deep transformer or a large heat sink, which is most vintage outboard.
Why it is not an outboard rack
At 19 by 19 by 19 inches, the cubic footprint is a lot of floor space for four rack spaces, and the 12.1 pound empty weight is not nothing to carry up a stair. It is efficient for transport, not for a permanent chain.
If your outboard gear is a compressor and an EQ, buy the rack space you need and use a case like this for the wireless side of the studio. Trying to make four rack spaces hold a full signal chain is how people end up stacking gear on the floor next to the rack instead.

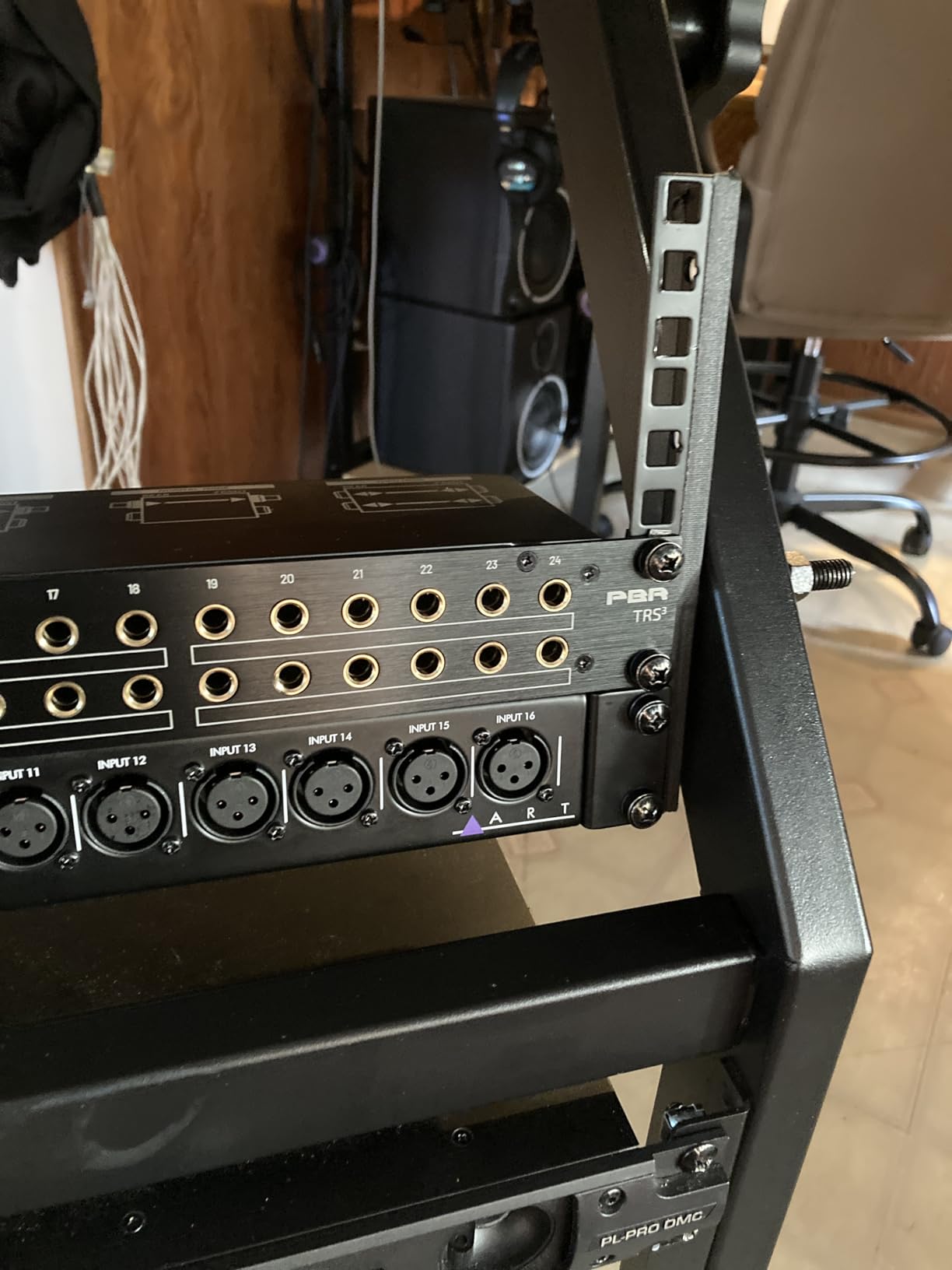

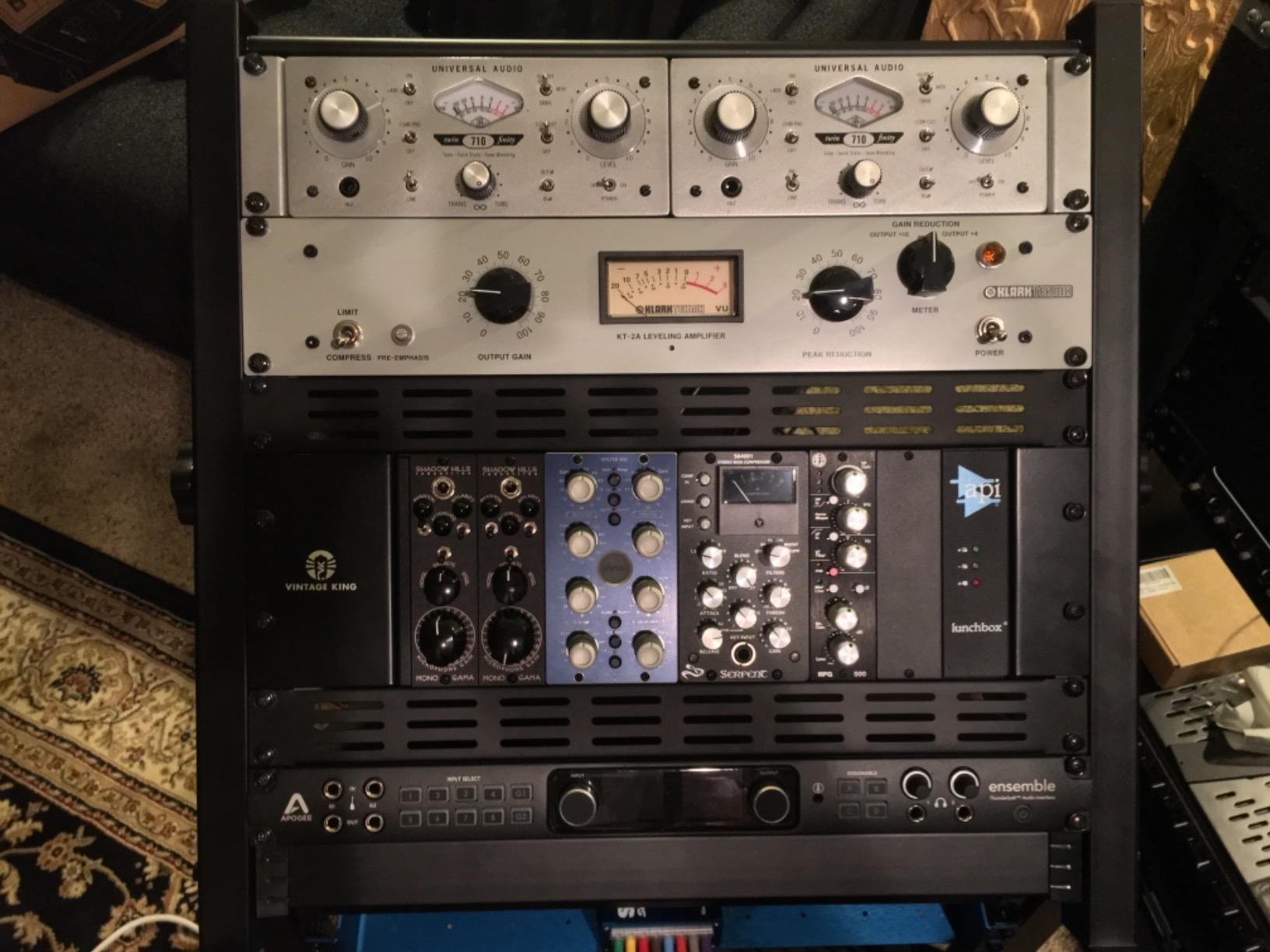

5. Griffin MD-WS993 19U Rolling Stand – Sit Down and Adjust
GRIFFIN 19U Rack Mount Rolling Stand (StudioZ PROSteel Series) & Adjustable Mixer Platform Rails – Cart Holder for Audio Music Recording Cabinet – Stage Equipment DJ Gear Storage Case for Amplifier
19 space steel stand
Adjustable tilt mixer platform
Four casters, two lockable
26 lb
1 year warranty
Pros
- All-steel frame owners load with a full outboard chain
- Low profile lets you dial controls from your chair
- Adjustable platform tilt with padded rail strips and metal lips
- Standard American hole spacing with 20 M6 screws included
Cons
- Assembly complaints about misaligned or paint-filled bolt holes
- No rear rails so usable rack space is less than a two-post rack
- Casters can mark carpet and screw holes will not take standard cage nuts
This stand exists for one ergonomic reason: you can sit at your desk and reach the outboard gear. The platform above the rack tilts toward you and the rack itself sits low, which removes the standing up, leaning over, adjusting one knob, sitting back down cycle that a tall rack turns into a hundred times a session.
The bottom rack section gives you nine space of standard American rack holes. That is not a lot of rack space, and it is the main compromise here, but for someone who works seated with a short signal chain it is the right trade.
The top mixer platform has ten space mounts and takes mixers up to 36 inches wide, 27 inches long and 3 inches deep, rated to 175 pounds without casters. Side knobs let you set the angle flat or slanted, and the padded rail strips with metal end lips stop a mixer sliding off when you lean on it.
Reviewers put a lot of weight on the frame. It is all steel, 26 pounds, and the casters glide smoothly with two of the four lockable, so the whole assembly can be parked next to the desk and rolled aside when you are not using it.
What nine rack spaces will and will not hold
It holds a vocal chain, or a compact mix bus: a preamp, a two-channel compressor, an EQ and a couple of utility units with blank panels filling the rest. For a musician tracking vocals this is the most useful nine rack spaces in the guide.
It will not hold a deep vintage preamp plus a bus compressor plus channel strips without running out. The 19.75 inch overall depth is generous, but the rack space count is the binding constraint here.
The assembly issue worth knowing before you order
The 4.2 rating reflects recurring assembly complaints, and the specific issue is alignment: some units arrive with misaligned or paint-filled bolt holes that make building the frame genuinely frustrating. Allow an evening rather than an hour, and check the holes before you start loading it.
Two more things to plan around. The included screws are larger than standard M6 and you are not given a full replacement set, and the stand does not accept standard cage nuts, so plan to buy your own fasteners if you need them. Casters are the part most likely to need replacing and they can mark carpet, so put a mat under them.

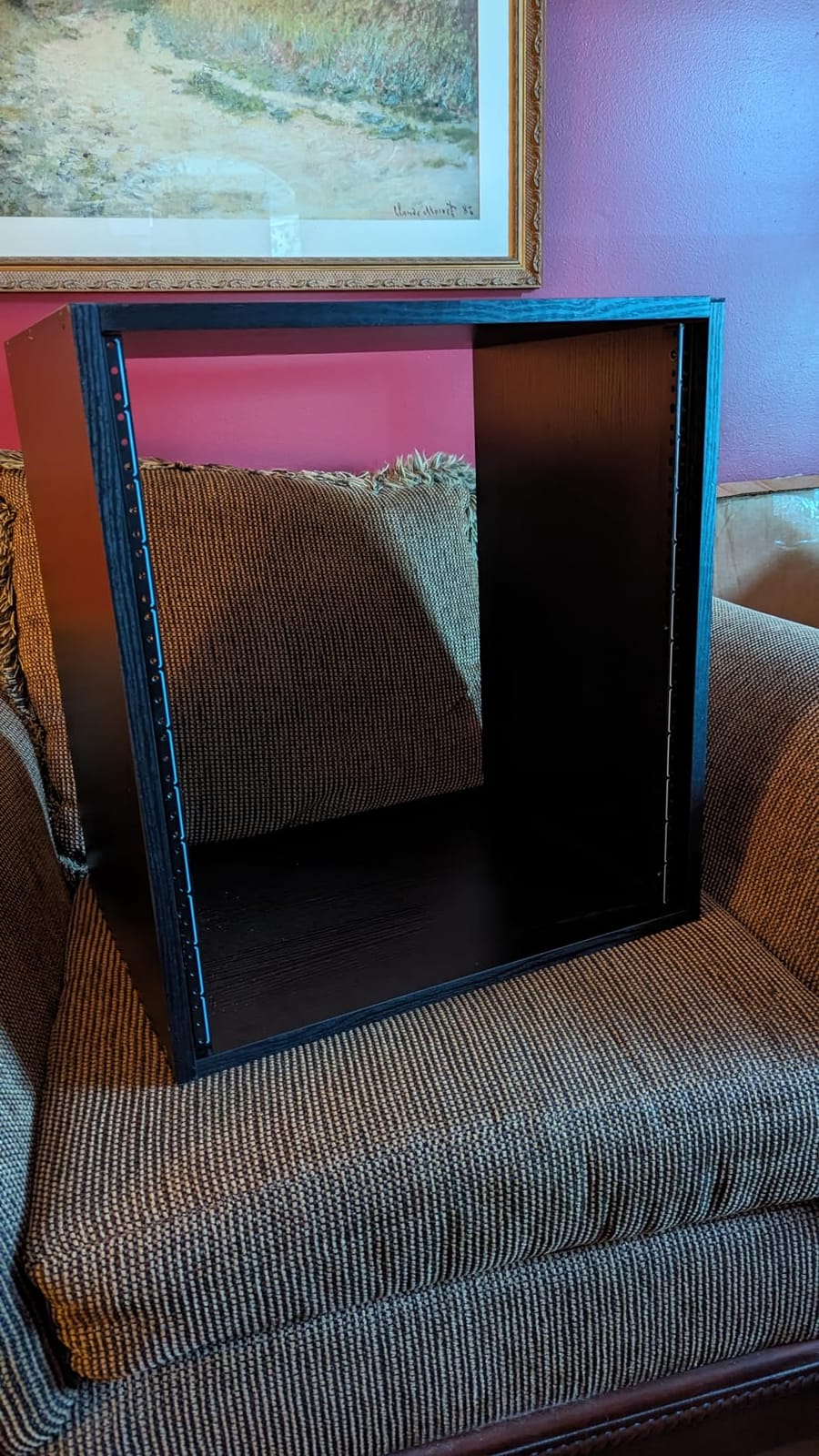

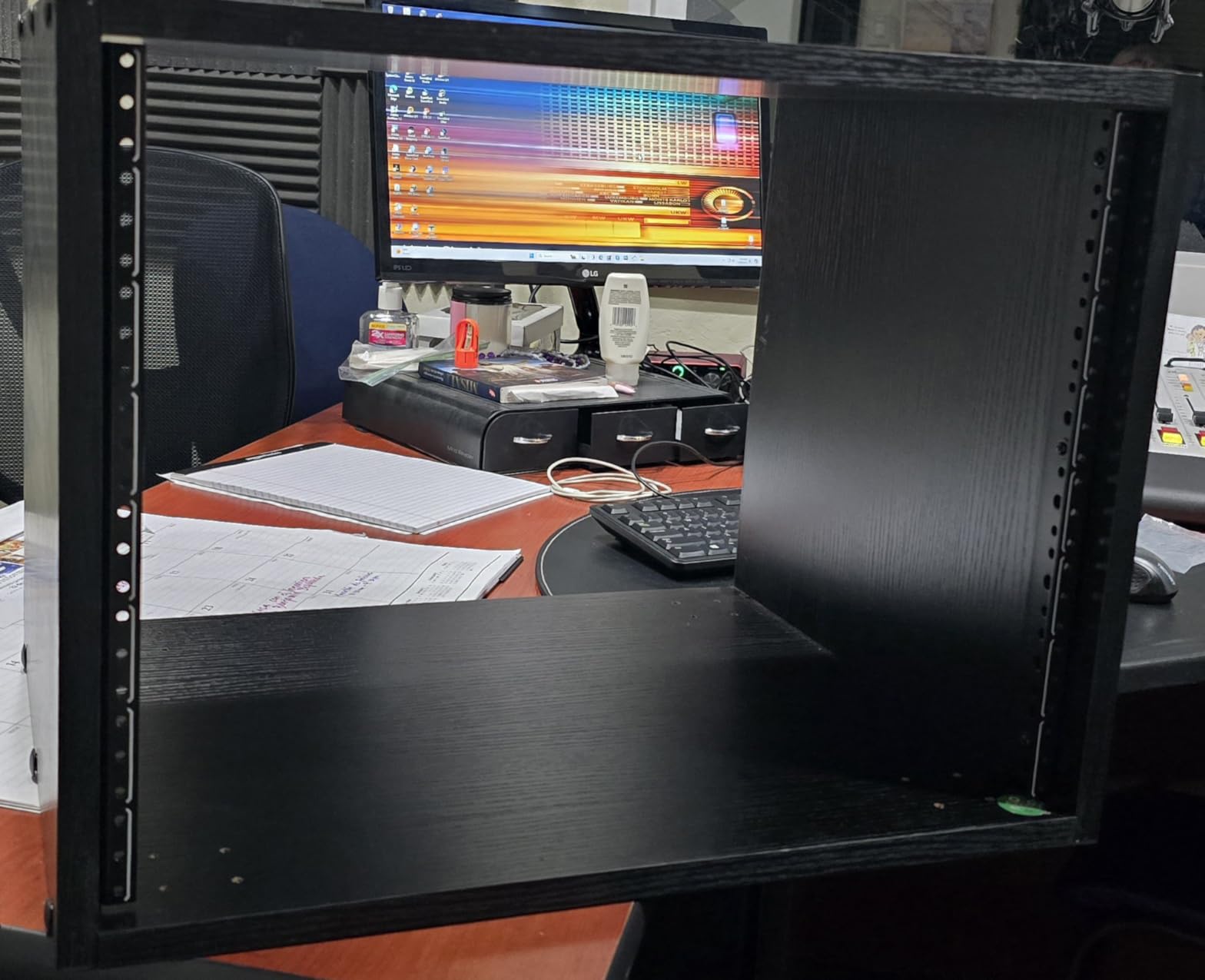

6. Gator GR-STUDIO-12U Wooden Cabinet – Built to Stay Put
Gator Cases Content Creator Series Wooden Studio Rack Case with 15.25″ Rackable Depth, 12U (GR-STUDIO-12U)
12U
15.25 inch rackable depth
Black oak laminate cabinet
3.2 mm rolled steel rails
26.8 lb
Pros
- Looks like furniture rather than a road case
- Stays stable once loaded with the rack set slightly in
- Quick four-panel assembly with pre-drilled holes
- Stackable in 4U
- 8U
- 12U and 16U
Cons
- Build is particle board with loose veneer despite the MDF description
- Arrives flat with no assembly instructions and no rack screws
- 26.8 lb and exposed screws make it awkward to move once built
This is the cabinet to buy if the rack is furniture. Black oak laminate on a 12U frame reads as part of the room rather than a flight case parked in the corner, which matters when the rack is visible from a listening position.
The rack rails are 3.2 mm rolled steel and the cabinet is listed at 16.3 mm MDF with a semi-gloss finish, on a 2-year warranty. Stackable sizes in 4U, 8U, 12U and 16U mean you can add a second cabinet later without ending up with a mismatched pair.
Depth is 15.25 inches rackable, and the rack is set slightly into the front so protruding knobs are less likely to catch a sleeve or a cable. That is a small decision that matters in a room where people walk past the rack.
Assembly is a quick four-panel job with pre-drilled holes, so the cabinet can be standing and loaded inside an evening. At 26.8 pounds it is stable and heavy in the right way once there is gear in it.
What a 15.25 inch depth accepts
Most 1U and 2U outboard hardware, including channel strips, small preamps, most 2U compressors and EQs, and patch bays. It is deeper than a shallow desktop rack and shallower than the full-depth cases at the top of this list.
Measure your deepest unit before you commit. If the answer is more than about 15 inches, this is the wrong cabinet and no amount of careful packing will change that.
The honest warnings in the reviews
The 4.0 average comes from a consistent set of complaints rather than one bad batch. The most common is that the panel is coarse particle board with loose vinyl veneer rather than the MDF the listing describes, which affects how it sounds when you knock on it and how it wears over years.
It also arrives flat with no instructions, and rack screws are not included because the hole size does not match common 19-inch rack screws. Budget for a pack of M5 screws and a bit of patience, and inspect the panels on arrival because chipped veneer and scratches show up now and then.

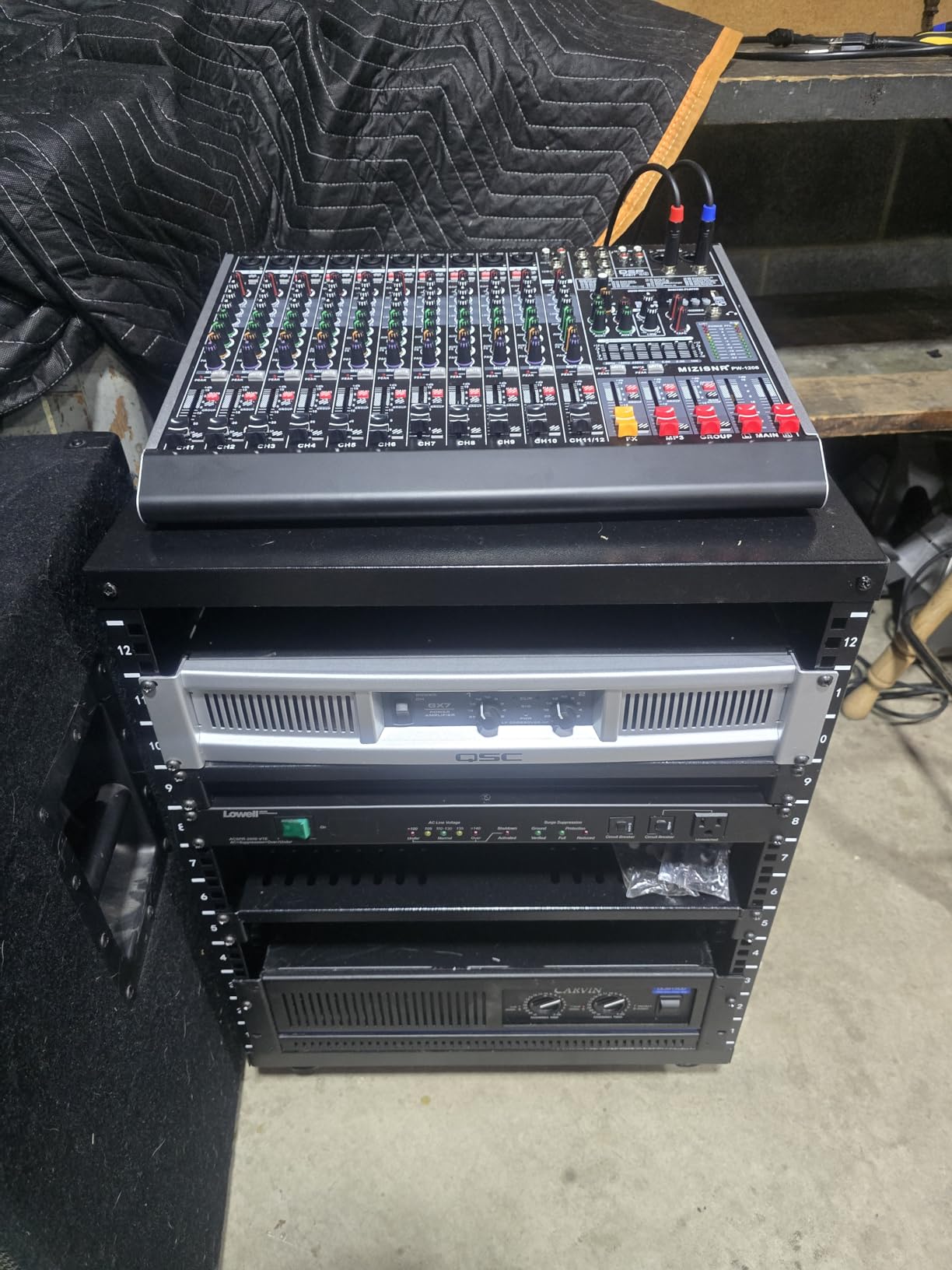

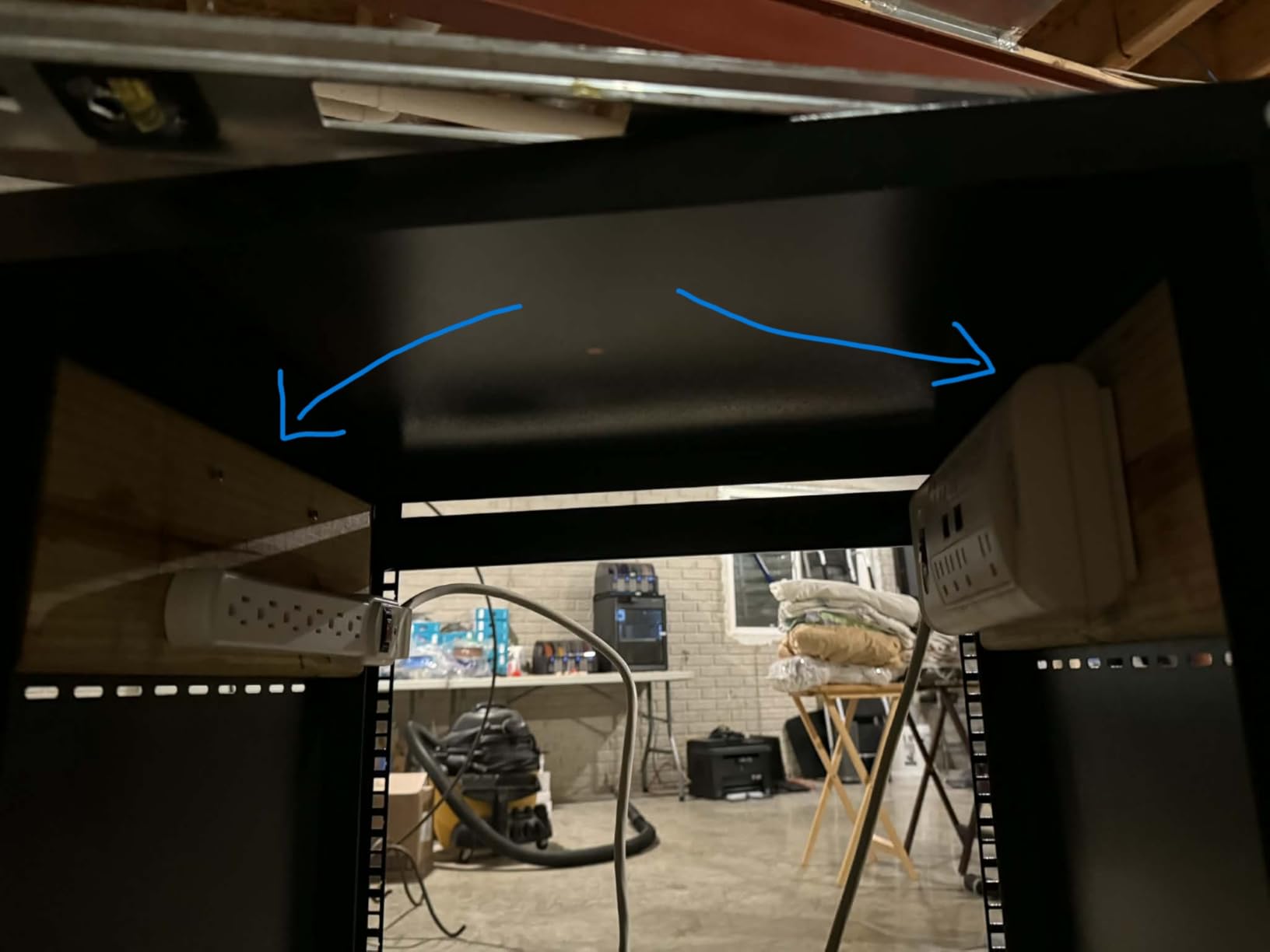

7. VEVOR SPT-605-12 12U AV Rack – Straightforward and Cheap
VEVOR 12U AV Rack Stand with Caster Wheels, Component Rack Cabinet Recording Studio Racks, Removable Side Panels, Universal Network Server Case, Special Vents for 19” Audio Video Rack Mounting
12U
Up to 18 inch depth
500 lb rated Q235 steel
Lockable casters
33.1 lb
Pros
- Q235 carbon steel frame rated to 500 pounds
- 18 inch depth with open front and back
- Removable side panels with vent slots and a top shelf
- Includes 40 screws
- 12 cage nuts
- casters
- wrench and manual
Cons
- Screw hole alignment can be poor and holes may strip if forced
- Most of the included cage nuts and bolts are used up by the frame itself
- Two-person assembly to square the frame
This is the straight answer to a straightforward need: twelve rack spaces, eighteen inches of depth and a frame rated to 500 pounds, with casters in the box. For a home studio or a small church or classroom A/V room, that covers a real outboard chain without any drama.
Open front and open back make wiring fast, and the removable side panels have vent slots, which is the right call for dense analog gear. The top shelf gives you somewhere to put a laptop, a patch lead bundle or a small interface.
Owners consistently report the carbon steel frame being sturdier than expected, and the 500 pound rating is genuinely useful when a chain includes power amplifiers. At 33.1 pounds empty it stays put once loaded.
The lockable casters roll well and stay where you put them, which answers the most common complaint about budget rolling racks. A two-person assembly to square the frame is the honest expectation.
Why the 18 inch depth is the reason to choose it
Depth is what makes a cheap rack work or fail, and 18 inches clears the majority of 2U outboard hardware without any modification. Many cheaper open frames in the same bracket are 12 to 13 inches deep and will simply not take the gear you own.
The open front and back layout also means you can reach rear connectors on a fully loaded rack, which matters when your patching changes from session to session.
Where the money shows
Fit and finish, not strength. Reviews point to misaligned screw holes, cage nuts that loosen and included mounting screws that are too short for some equipment. Check the holes before mounting anything and keep spare fasteners.
Also note the included hardware: 40 M5 screws and 12 M6 cage nuts is plenty for the frame but leaves relatively little for your gear. Two people and one evening is a fair estimate for assembly, and the packaging occasionally arrives crushed, so inspect it on delivery.

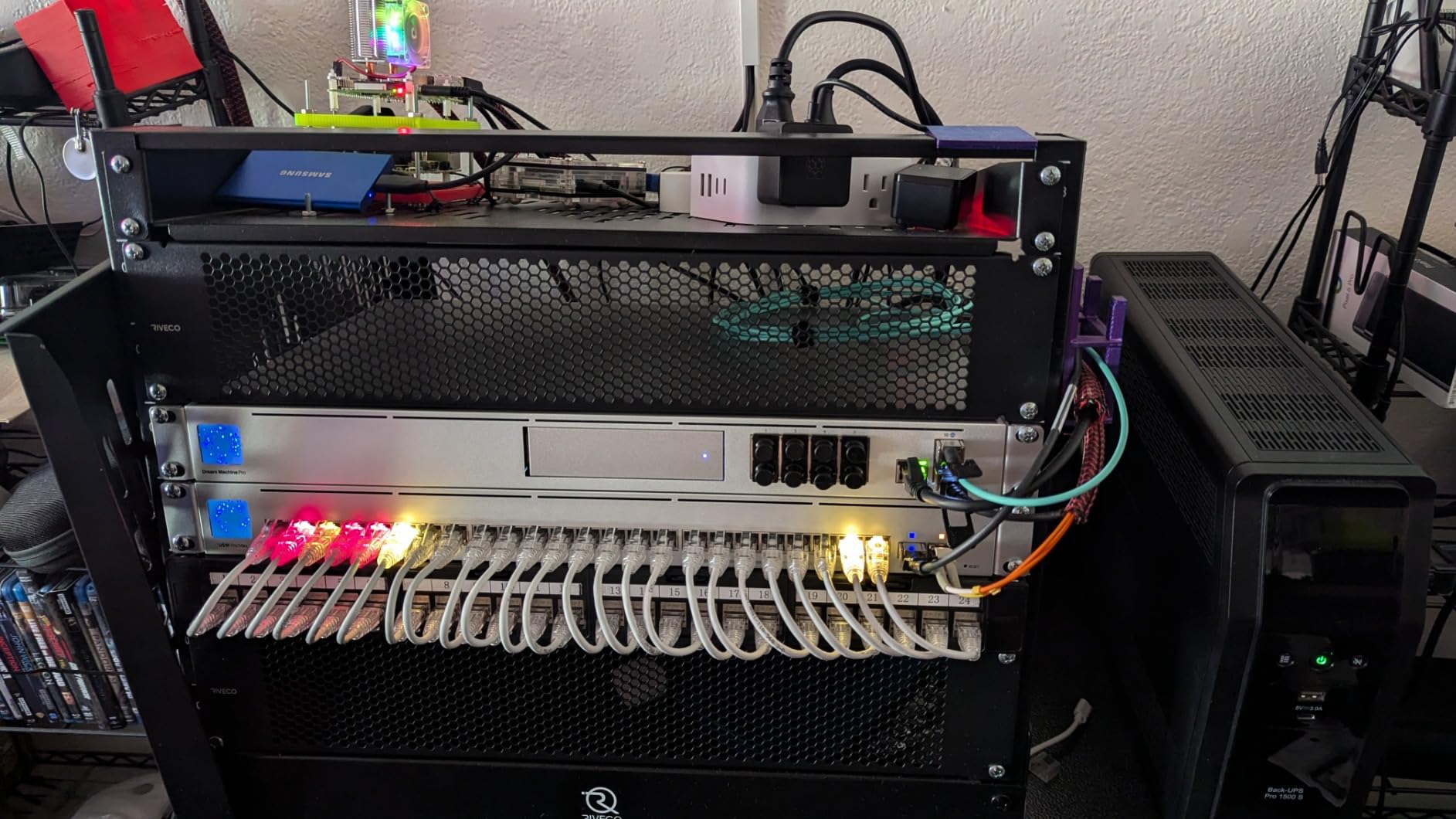

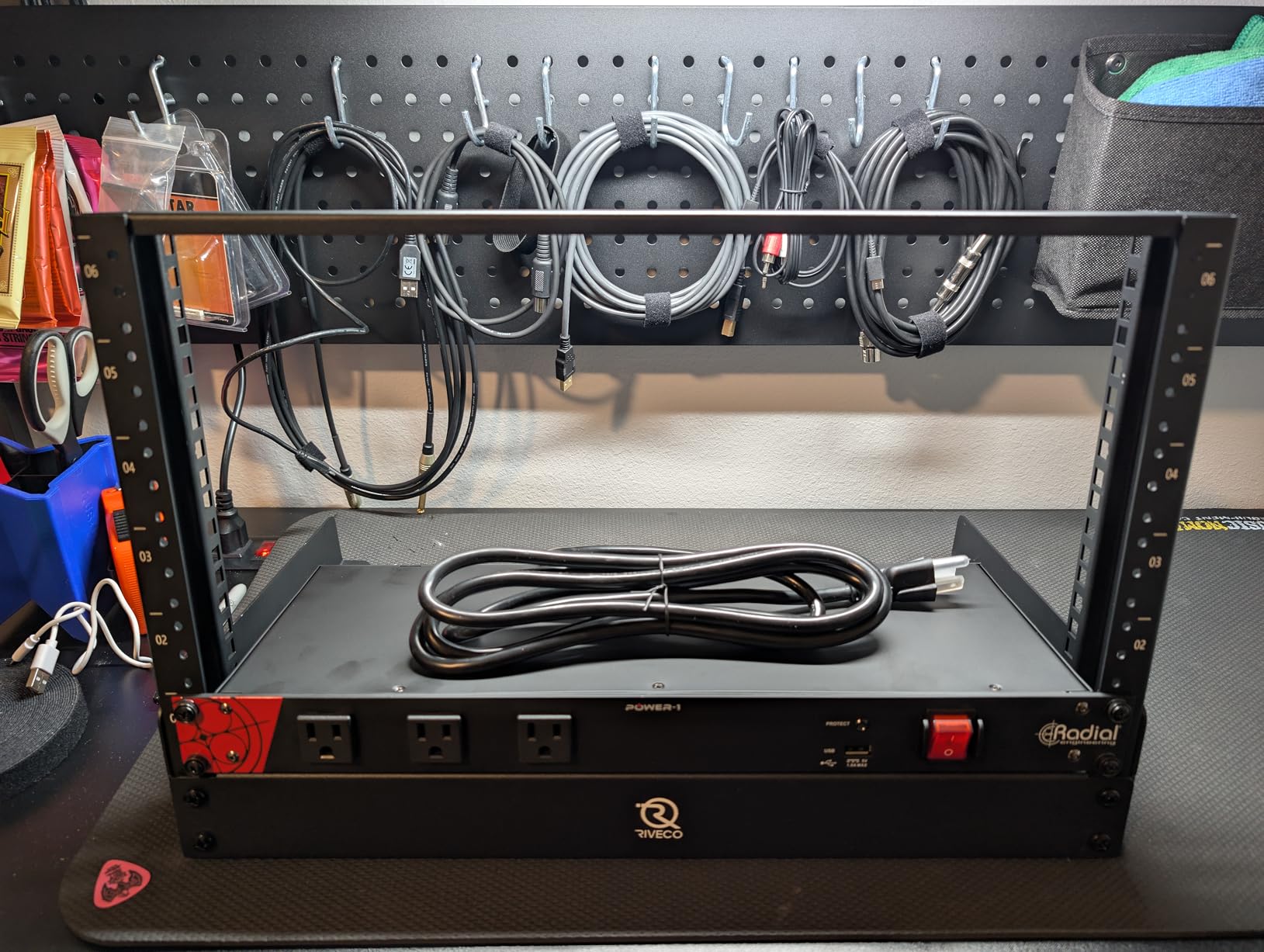

8. RIVECO LEAN12U 12U Desktop Rack – Small Footprint, Real Stability
RIVECO 12U Desktop Rack for Audio & Network Devices 19 Inch 2 Post Open Frame Shelf with Reinforced Beam, Free Standing Racks for IT Server Sound AV Music Recording Equipment
12U
11.79 inch depth
2.0 mm cold-rolled steel
Extra reinforcing beam
2 year warranty
Pros
- Added horizontal beam gives genuine torsional rigidity for a light frame
- Compact enough for a desk top or a corner
- 2.0 mm cold-rolled steel with a scratch-resistant powder coat
- Includes assembly screws
- cage nuts and clear U markings
Cons
- Shallow 11.79 inch depth limits it to compact gear
- Listed maximum weight of 6.6 lb suits light outboard
- No enclosure so gear is exposed to dust and impact
The defining feature is the extra horizontal beam across the top of the two posts. On a light open frame that single brace is the difference between a rack that racks and a rack that walks across the desk when you pull a fader, and it is the reason this is rated 4.6.
At 11.79 inches deep it fits on a desk top or in a corner without taking over the room, and the 360-degree open frame means you can reach the front and back of anything you mount. Clear U markings on the posts speed up planning a layout in front of the rack.
Construction is 2.0 mm cold-rolled steel with a powder coat finish that resists scratching, which matters more than it sounds when you slide a unit in and out. Assembly screws and cage nuts are included, so unlike several racks in this guide you can build and load in one session.
The 2-year warranty is longer than most in this category. Reviewers use it for compact outboard chains, network gear and home lab builds, and the shallow depth is the limitation they name every time.
What the 11.79 inch depth will hold
Compact and shallow outboard hardware: 1U channel strips, patch bays, small interfaces, headphone distributors, blank panels and shallow 1U shelves. Anything with a deep transformer or a rear-mounted heat sink is a stretch.
Use the beam and the frame together and it behaves like a much heavier rack, which is what makes a desk-top unit viable. Just keep power amplifiers off it.
When the low weight rating decides it
The listed maximum weight is 6.6 pounds, which suits lightweight outboard and nothing else. If your chain includes tube gear or a power amp, this is the wrong rack regardless of how good the frame is.
There is also no enclosure at all, so dust settles on top of your gear and a knock goes straight into it. In a clean home studio with light gear that is a fair trade. In a busy live room it is not.
9. Gator Frameworks Elite 2U Desktop Rack – Two Spaces, Done Properly
Gator Frameworks Elite Series 2U Desktop Studio Rack – Black
2U
One inch plywood
12.75 inch front rail to rear lip
100 lb load
18.5 lb
Pros
- Real one inch plywood instead of particle board
- Furniture-grade finishes including walnut brown and natural maple
- Non-slip feet hold the rack steady while you work the controls
- Limited lifetime warranty
Cons
- Limited ventilation through the top
- bottom and sides
- Rail spacing is slightly under 17.75 inches so wide components may not fit
- Predrilled holes can be misaligned and too tight
Two rack spaces sounds like nothing until you count what a two-unit chain can do. A single-channel compressor and a two-channel EQ, or a compact preamp and a small interface, cover a lot of outboard processing for a bedroom or project studio.
What you give up for that compactness is everything else. At 18.5 pounds this is a solid block of furniture rather than a wire rack, and the one inch plywood is the single most-praised feature in reviews. People notice solid construction immediately on a desk.
The 12.75 inch measurement from front rail to rear lip is the number to check. It is measured from the mounting surface to the back of the unit, so it is an honest usable depth rather than an outside dimension, and it clears most 2U outboard hardware.
Load capacity is rated at 100 pounds, which is far more than two units of outboard gear will ever produce, and non-slip feet keep the rack from sliding when you reach across it to turn a knob. The limited lifetime warranty is the best warranty in this group.
Why two rack spaces can be the right answer
If your entire outboard chain is two units, a 12U rack is mostly empty space with a larger footprint and a higher budget. Two rack spaces at desk height keeps the compressor where you can hear and adjust it, next to the interface driving it.
Reviewers like the finishes for home studios that double as living spaces, where a black box on a stand breaks the room but a maple-finished rack reads as furniture.
The two limits worth knowing
Ventilation is limited through the top, bottom and sides, so in a fully loaded two-unit rack with warm analog gear, leave the spaces around each unit open rather than boxing it in.
Rail spacing measures slightly under 17.75 inches, so some wider components will not fit, and the predrilled holes can be misaligned and too tight, which strips screw heads if you force them. Fit the gear loosely first, check the hole pattern, then tighten.
10. Odyssey CRS12 Carpeted Slant Rack – The Angled Face
Odyssey CRS12 12 Space Carpeted Studio Rack
12U
13 inch top and 16 inch bottom depth
Three-quarter inch plywood
Angled face
Open back
Pros
- Highest average rating in this group at 4.7
- Slanted face keeps controls visible and reachable from your chair
- Solid three-quarter inch plywood with a fully carpeted exterior
- Open back makes rear patching and cable routing straightforward
Cons
- Fixed 25 inch tall floor-standing footprint with no casters
- The slanted face cannot be used flat for larger top-surface gear
- Limited colour and finish options
This rack holds the highest average rating in the guide at 4.7, and the reason is a single design decision: the 12-space face is slanted. Instead of standing up to adjust a compressor gain, you lean forward slightly from your chair and the knobs are already facing you.
Construction is three-quarter inch plywood with a fully carpeted exterior and a black painted interior, and it carries a limited lifetime warranty. The carpet is not decoration. It is why the cabinet does not ring when you touch it and why it survives being next to a drum machine in a small room.
Depth is asymmetric, and this is the detail that catches people out. You get 13 inches at the top and 16 inches at the bottom, so the units in the lower rack spaces have noticeably more room for deep gear and rear cabling than the ones at the top.
There is no panel at the front or the back, which makes rear patching and cable routing straightforward and keeps the geometry simple. A clean four-panel build and the carpeted exterior mean it disappears into a room rather than dominating it.
How to plan around the slanted face
Put your most-used units in the middle rack spaces where the angle is most useful, and put deep amplifiers in the bottom spaces where you have 16 inches rather than 13. Work out the layout before you load it, because gear is much easier to place once.
The slant is also a warning for anyone planning to set a large mixer or a wide surface unit on the top, because the face is not flat. Plan the top of the rack as storage, not as a work surface.
When the fixed footprint is the wrong call
It stands at 25 inches tall with no casters and no tilt adjustment, so it is a permanent piece of furniture. If you need to roll the rack to the live room or clear the floor for something else, this is not that rack.
The 13 inch top depth also rules out several deep 2U units, and the listing offers very few colour or finish options. Confirm your deepest gear is under 13 inches before you commit, because that is the one limit here with no workaround.
What Is 12U in Inches? Rack Unit Size Chart
One rack unit is 1.75 inches tall, which is 44.45 millimetres, and that is the EIA-310 spacing used by every 19-inch rack in audio. Twelve rack units therefore equal 21 inches of mounting height, and a 2U unit equals 3.5 inches. Multiply your rack space by 1.75 and you have the opening you need.
Rack space tells you the height a unit occupies. It tells you nothing about how deep the unit is or how much it weighs, and those two numbers are what separate a rack that fits your gear from one that does not.
| Rack space | Height in inches | Height in mm | Typical use with outboard gear |
|---|---|---|---|
| 1U | 1.75 in | 44.45 mm | Channel strip, headphone amp, patch bay, blank panel |
| 2U | 3.5 in | 88.9 mm | Compressor, EQ, gate, most single-channel outboard |
| 3U | 5.25 in | 133.35 mm | Two-channel preamp or processor |
| 4U | 7 in | 177.8 mm | Four-channel preamp, small power amp head |
| 6U | 10.5 in | 266.7 mm | Rackmount mixer, stereo processor |
| 8U | 14 in | 355.6 mm | Compact mixer plus utility units |
| 10U | 17.5 in | 444.5 mm | Small channel strip rack |
| 12U | 21 in | 533.4 mm | Full home studio outboard chain |
| 16U | 28 in | 711.2 mm | Larger studio chain or small format console |
| 18U | 31.5 in | 800.1 mm | Console plus processing |
| 20U | 35 in | 889 mm | Large studio or live rack |
| 24U | 42 in | 1066.8 mm | Touring rack or full console room |
The standard rack sizes in the audio world run 4U, 6U, 8U, 10U, 12U, 16U and 21U for consumer and studio cabinets, and 24U or more for touring frames. For outboard work, 12U is the most common home studio size, and 8U is enough for a compact two-unit chain plus headroom.
One caution on measurement. A cabinet that is 21 inches tall overall is not 12U of usable space, because the panels and top take up part of that figure. Always check the stated rack space count rather than the outside height.
Rack Depth Compatibility for Outboard Gear
Depth is the number that decides whether a rack works, and it is the one people get wrong. The table below is a planning tool, not a specification sheet for any particular product. Measure the actual depth of your own units, add a couple of inches for cable bend, and compare that figure against the usable depth of the rack you are considering.
Measure from the front mounting flange to the back of the unit including any protruding connectors, not the depth printed on a box. If your deepest unit comes to 16 inches, a 12 inch rack cannot hold it and no adapter will change that.
| Outboard category | Typical rack space | Plan for at least | Notes |
|---|---|---|---|
| 500-series lunchbox chassis | 3U to 5U | 6 in | A different format from 19-inch gear. It does not mount in a standard rack, so it needs its own carrier and it cannot share rack space with generic units |
| 1U channel strip or utility unit | 1U | 12 in to 14 in | Usually shallow, but check for rear cable hooks that add depth |
| 2U compressor or EQ | 2U | 14 in to 16 in | Many modern 2U units are deeper than their width suggests once connectors are counted |
| 2U reverb or multi-effect | 2U | 16 in to 18 in | Digital reverbs and multi-effects are frequently the deepest thing in a home rack |
| Vintage tube preamp or compressor | 1U to 3U | 16 in to 19 in | Deep transformers, rear heat sinks and large connectors. Buy the deepest rack you can live with |
| Power amplifier head | 3U to 4U | 17 in to 20 in | Heavy as well as deep, so check the load rating as well as the depth |
| 3U plus rackmount mixer | 3U to 8U | 18 in to 22 in | Most rackmount mixers need close to the full depth of a touring frame |
If your gear spans a wide depth range, sort it into shallow and deep and place the deep units in the rack spaces that offer the most clearance. Slanted cabinets like the Odyssey CRS12 make this a real decision, because 13 inches at the top and 16 inches at the bottom is not one number.
Answering a question that comes up constantly in audio forums: a rack large enough for six rack spaces of preamps, compressors and EQs is a 12U open frame or cabinet with at least 16 inches of depth. Anything shallower than about 14 inches will start refusing gear within a year.
How to Choose a Studio Rack for Outboard Gear
Form factors and who each one suits
Open frame stands are for fixed rooms where gear is touched, not moved. You get the deepest usable space, the best airflow and full access to the back, and you give up physical protection and appearance. Rolling casted frames are open frames that also move, which suits mobile rigs and shared rooms.
Carpeted and plywood cabinets are for rooms where the rack is visible and rarely moves. They protect gear, damp resonance and look deliberate, at the cost of some depth and ventilation. Road cases are the same idea taken further, and they are for gear that actually travels.
Wall-mounted and angled desktop racks solve a room problem rather than a gear problem. Use them when floor space or desk space is the constraint, and check the depth carefully because both formats are often shallow. Separately, if you own 500-series modules, note that this is a different chassis format: it will not fit a standard 19-inch rack at all, and it needs its own carrier or a rack dedicated to it.
Four steps to size a rack before you buy
First, count rack space from your gear list. Add the height of every unit in U, then add one rack space of blank per gap you want to keep open. Three blank panels spread through a rack help airflow far more than a single gap at the bottom.
Second, measure your deepest unit including connectors, and add two to three inches for cable bend radius. That number sets your minimum rackable depth and should eliminate half the racks on your shortlist.
Third, total the weight of the gear and compare it against the load rating with at least double the margin. Outboard transformers are heavy, and the rating on an open frame is not the same as a static load rating on a domestic shelf.
Fourth, count the hardware. Decide now whether you are getting rack screws and cage nuts with the rack, because several models in this guide do not, and that turns a one-afternoon build into a two-delivery afternoon.
Power, hum and heat in a dense analog rack
A rack concentrates power supplies into a small space, and that is where hum usually starts. A single surge-protected power distribution unit mounted at the back of the rack keeps mains connections in one place and gives you a single switch for the whole chain.
For analog gear, keep mains and signal cables running on opposite sides of the rack and tie them off so they do not lie parallel for long distances. If a channel hums only when the compressor engages, suspect the power path before you start recapping anything.
Heat is the other half. Open frames vent from every side. In an enclosed cabinet, leave the empty rack spaces unfilled or fit vented blank panels, and give any tube or valve outboard genuine clearance at the top and rear. A rack with airflow does not need a fan; a sealed rack with warm gear does.
Where the rack goes in the room
Position matters as much as the rack itself, because a rack in the wrong corner will still colour your mixes. Keep outboard gear away from untreated corners and away from anything that radiates heat, and give it the same breathing room you would give a monitor position.
The desk is the other half of the decision. Our studio desk roundup covers the sizes and depths that hold a rack within reach, and if the room is untreated enough to colour what you hear, an isolation booth will do more for your outboard chain than another compressor will.
What to fill the empty rack space with
Blank rack panels are the first thing to buy, and they are not filler. They close the gaps that let hot air rise through the cabinet and they stop unused holes from collecting dust.
A 1U vented shelf takes the gear that is not properly 19-inch rackable, a small mixer or a desktop interface, so you can keep it in the rack instead of on a shelf next to it. A 1U lockable drawer holds patch leads, adapters and spare screws, which is where a small rack loses most of its usable depth.
A second patch bay in the middle of the chain lets you re-route without unplugging half the rack, and it is the single accessory that makes a dense analog rack faster to work with.
How We Picked and What We Checked
Every rack here was judged on four things: usable rackable depth, the load rating or the absence of one, what hardware actually arrives in the box, and whether reviews describe problems with fit, finish and assembly. We ignored appearance until the numbers were in, then used it to separate racks that suit the same build in different rooms.
Where a load rating is not stated by the manufacturer we have said so rather than estimating one, and where a measurement differs between a product’s headline and its detailed specification we have used the more conservative figure and flagged it. Depth figures are rackable depth, not outside dimensions, wherever the manufacturer states both.
One category is missing from this guide and it matters: 500-series lunchbox carriers. They are a different chassis format that will not mount in a standard 19-inch rack, so including one would have meant presenting a chassis as a rack. If your modules are 500-series, that carrier is a separate purchase decision, and the depth guidance above is for conventional 19-inch outboard gear only.
We may earn a commission from links on this page, and that does not change the order of the picks. Products are ranked on suitability for outboard gear in a real studio, not on any commercial relationship.
Frequently Asked Questions
What are the best audio equipment racks?
The best audio equipment racks for outboard gear depend on depth and room. Our top pick is the Gator GR-12L 12U rack case for its 19.25 inch rackable depth and included rack screws. The AxcessAbles RK12U 12U open frame is the best value, with an 18 inch depth and a 550 pound load rating. The Odyssey CRS12 scores highest on owner satisfaction at 4.7 thanks to its slanted face, and the Gator Frameworks Elite 2U is the right answer for a two-unit desktop chain.
Is a 19-inch rack standard?
Yes. The 19-inch EIA-310 standard is the universal format for professional audio equipment, video, IT and network gear. Rack rails are 19 inches wide between the mounting holes, and equipment occupies whole rack units where 1U equals 1.75 inches or 44.45mm. Almost every preamp, compressor, EQ and reverb in an outboard chain is built to it.
What is 12U in inches?
12U is 21 inches tall, because one rack unit is 1.75 inches or 44.45mm. A 12U rack has 21 inches of mounting height for equipment, though the outside height of a cabinet is slightly more once the panels and top are added. Check the stated rack space count rather than the overall height when comparing sizes.
What are the standard sizes for studio racks?
The common studio rack sizes are 4U, 6U, 8U, 10U, 12U, 16U and 21U, with 24U and larger used for touring racks and console rooms. For outboard gear, 12U is the usual home studio size and 8U is enough for a compact chain. A full chain of preamps, a compressor, an EQ and channel strips typically needs 10U to 12U before blank panels.
How deep should a studio rack be?
Plan for at least 16 inches of rackable depth for typical outboard gear, and 18 inches or more if you own vintage tube preamps, large reverbs or power amplifiers. Measure the deepest unit including its connectors and add two to three inches for cable bend. A 12 or 13 inch rack is fine for wireless and shallow 1U gear, but it will refuse most 2U outboard hardware.
Do studio racks come with screws?
It varies, and this is a common surprise. The Gator GR-12L includes 64 rack screws, the AxcessAbles RK12U includes 34 screws with a blank panel and a tool, and the VEVOR 12U includes 40 M5 screws with 12 cage nuts. The Gator GR-STUDIO-12U wooden cabinet includes neither screws nor instructions, and its hole size does not match common rack screws, so budget for your own fasteners.
How much weight can a studio rack hold?
It depends entirely on the frame. The AxcessAbles RK12U steel open frame is rated to 550 pounds and the VEVOR 12U to 500 pounds, while the Gator Frameworks Elite 2U desktop rack is rated to 100 pounds. Racks with no published rating should be treated as light duty, and you should keep at least double the total weight of your gear in reserve.
Should I get an open frame or an enclosed studio rack?
Get an open frame in a fixed room where you constantly re-patch, because airflow and 360-degree access matter more than protection with analog gear that runs warm. Get an enclosed cabinet or road case in a visible room, a shared space or anywhere the rack is moved. Outboard gear with heavy transformers benefits from the resonance damping of a carpeted or plywood cabinet.
The Verdict for Your Outboard Rack
The Gator GR-12L is the winner of this roundup, and the reason is the one that matters most: 19.25 inches of rackable depth, threaded field-replaceable steel rails, removable covers front and back, and 64 rack screws in the box. It accepts the outboard gear that shallow studio racks turn away, and it has the largest owner base of anything we tested at 2026 with 847 reviews averaging 4.5.
Pick the AxcessAbles RK12U if you want an open frame you can work on from every side and do not care how it looks. Pick the Sound Town STMR-S12UWT if the rack goes in a van. Pick the VEVOR SPT-605-12 if you want casters and an 18 inch depth and have an evening spare for assembly. Pick the Gator Frameworks Elite 2U if your entire chain is two units.
Whatever you choose, measure the deepest piece of gear you own before you order, count your rack space, and check what arrives in the box. Those three steps prevent almost every disappointing rack purchase, and they will still be true in 2026.
