A swing set bracket is the steel connector that joins the top beam of a DIY wooden A-frame to the angled 4×4 legs, so you never have to weld the joint yourself. The bracket slips over the beam and each leg, then bolts clamp the whole thing square. Getting that joint right is the difference between a frame that stands for a decade and one that racks sideways after one summer. This roundup covers the best swing set brackets for DIY builds we could find across ten kits, from the most-reviewed set on the market to small repair brackets for one corner of an old frame.
There are four hardware categories in this space, and most confusion comes from mixing them up. A-frame end brackets sit at the two top corners of the frame. Middle brackets add a third or fourth swing station partway along the beam. Swing hangers are the part the seat actually hangs from. Leveling hardware handles sloped ground. Just one of the ten kits below bundles hangers with the brackets, and only one ships a full nut-and-bolt set for through-bolting.
We leaned on the builder consensus that dominates forums for this topic. A single r/Carpentry thread about a portable frame is where the BETOOLL 2-pack first surfaced for us, and Eastern Jungle Gym’s Easy 1-2-3 kit is the most-repeated recommendation across r/DIY and r/BeginnerWoodWorking threads. That matters because the failure mode is consistent: almost nobody complains about the steel, and nearly everybody complains about lumber fit. If you want the short version of the fit problem, our swing set accessories guide covers what to add once the frame is standing.
Every bracket here was evaluated on the same six things: steel gauge and whether the joints are fully welded, how closely the published lumber dimensions match what your yard actually delivers, what hardware arrives in the box, the coating type, the published rating and review volume, and how the joint behaves once it is loaded. We did not rate load capacity beyond what manufacturers publish, because most of these kits print no load number at all.
Top 3 Best Swing Set Brackets for DIY Builds (October 2026)
BETOOLL A-Frame 2 Brackets
- Heavy gauge steel with 100% welded joints
- 28 wood screws and 28 washers included
- Fits a 4x6 beam and 4x4 legs
Eastern Jungle Gym Easy 1-2-3
- 10 pounds per bracket and one-piece welded
- 28 lag bolts and washers included
- Zinc powder-coated green
ECOTRIC A-Frame Brackets
- 14 pre-drilled lag bolt holes
- 14 lag bolts and washers included
- 10 pounds per bracket
- 3-5/8 inch openings
All 10 Best Swing Set Brackets for DIY Builds in 2026
| Product | Specifications | Action |
|---|---|---|
| BETOOLL A-Frame 2 Brackets |
|
Check Latest Price |
| Eastern Jungle Gym Easy 1-2-3 |
|
Check Latest Price |
 Swing-N-Slide EZ Frame Bracket |
|
Check Latest Price |
| ECOTRIC 2 Pcs A-Frame Bracket |
|
Check Latest Price |
 HANDYGO Swing Set Brackets |
|
Check Latest Price |
 Highpro A-Frame 2 Brackets |
|
Check Latest Price |
 VEVOR A-Frame Middle Brackets |
|
Check Latest Price |
 ABUSA Brackets and Hangers Kit |
|
Check Latest Price |
 MIXXIDEA 2 Swing Set Brackets |
|
Check Latest Price |
 BeneLabel A-Frame 2 Brackets |
|
Check Latest Price |
How We Picked These Brackets
Weld quality came first. Spot welds are the first thing to fail at a swing’s peak load, and every steel kit in this lineup except one claims fully welded joints. We checked whether that claim matches the bracket’s published weight, since a heavy bracket is usually a thick one.
Second was hardware completeness, because a half-supplied kit means a second hardware run mid-build. Third was lumber fit, which we took from the manufacturers’ own published opening dimensions rather than the nominal lumber size, because those two numbers rarely match. Finally we weighted published ratings and review volume, since a few hundred reviews tell you much less than several thousand.

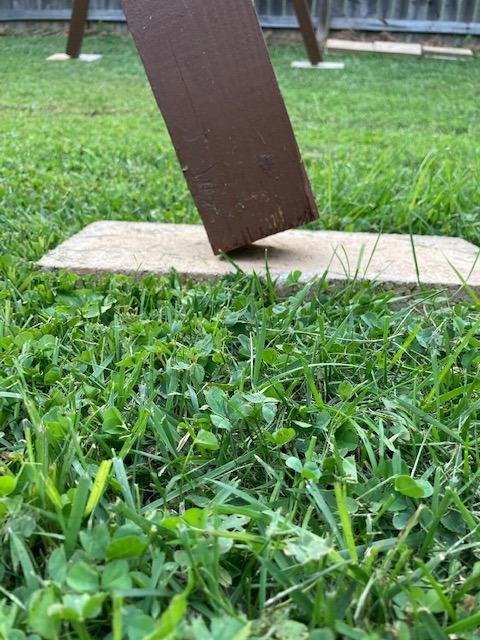

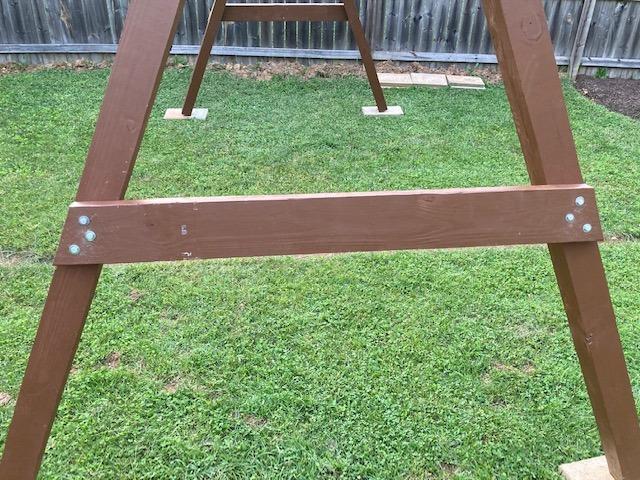

1. BETOOLL A-Frame 2 Brackets, Heavy Gauge Welded Steel
BETOOLL A-Frame 2 Brackets Swing Set Bracket with Mounting Hardware (Green)
Steel with fully welded joints
Fits a 4x6 beam and 4x4 legs
28 wood screws and 28 washers
Pros
- Heavy gauge steel with fully welded joints
- Two brackets cover a standard A-frame
- All 28 screws and washers included
- Top-down assembly with pre-drilled holes
Cons
- Slots are tight so lumber may need planing
- Beams over 114 inches can bend between brackets
- Supplied screws can corrode faster in humid climates
This is the kit we came back to. The brackets are heavy gauge steel with fully welded joints, not spot welds, and the pair weighs enough that two people can raise the finished frame without a struggle. Buyers consistently report an A-frame going together in an afternoon with basic tools.
The fit is the whole story here. The bracket openings measure 3-5/8 inch by 5-5/8 inch and 3-5/8 inch by 3-5/8 inch, and the manufacturer explicitly asks you to plan or sand the lumber to seat it. That snug fit is also the reason the frame does not move under load, so it is a feature as much as a chore.
One specification matters more than any other here: keep the top beam under 114 inches. BETOOLL warns that a longer beam can bow between the two brackets under load, which is exactly the kind of failure that shows up as a soft, uneven swing. Their recommended build is one kiln-dried 4×6 at 114 inches and four 4×4 legs at 96 inches, finishing at 12 feet long by 8 feet deep by 7 foot 8 inch high.
The box includes 28 wood screws and 28 washers, so nothing else is needed for the joint itself. Assembly order matters: secure the brackets to the beam first, then slide the legs in with the frame flat on the ground, top down, and pre-drill before tightening.
What we liked about the BETOOLL frame
Welded joints and included hardware in the same box make this a clean one-afternoon project. The 4.8 rating across more than 3,700 reviews reflects a design that simply works when the lumber is prepared.
It is also the bracket most often recommended as a portable-frame option by builders, including on r/Carpentry, which is a good sign for anyone building a set they intend to move or reconfigure.
Where it falls short
The tight slots demand a planer, chisel or rubber mallet before assembly. Fresh pressure-treated lumber is often wider than the finished dimension the bracket expects.
The included screws are the weak link in wet climates, where owners report faster corrosion on the supplied fasteners. Swapping to exterior-grade hardware costs little and removes the problem.
2. Eastern Jungle Gym Easy 1-2-3 A-Frame Brackets, Built for Adult Weight
Eastern Jungle Gym Easy 1-2-3 A-Frame 2 Brackets for Swing Set, Green
10 pounds per bracket, one-piece welded steel
Zinc powder-coated green
28 lag bolts and 28 washers
Pros
- Heaviest brackets here at 10 pounds each
- One-piece design with welded seams
- All 28 lag bolts and washers included
- Frame shows no movement under adult weight
Cons
- Pressure-treated lumber can swell during seating
- No written assembly instructions
- Supplied lag bolts can rust in humid climates
This is the most reviewed kit in the group, with more than 6,400 ratings, and it is the one most often named in r/DIY and r/BeginnerWoodWorking threads. At 10 pounds per bracket, these are the heaviest steel brackets we looked at, which is why they hold a frame steady when an adult swings on it.
The construction is a solid one-piece design with welded seams rather than a folded or spot-welded shell. Owners building their first frame report finishing the whole A-frame in a few hours, and many add a 2×4 cross piece for extra rigidity.
The included hardware is complete: 28 zinc-coated 5/16 inch by 3 inch lag bolts and 28 washers. Lumber is not included, and the recommended build is one 4×6 at 120 inches with four 4×4 legs at 96 inches, which lands at the same 12 by 8 by 7 foot 8 inch finished footprint as the BETOOLL design.
There is no written assembly manual in the kit, so plan on working from the product page and the habits experienced builders share: assemble the frame upside down, raise it with two people, then anchor the legs before anyone swings.
Why adults can use this frame
Bracket weight and weld quality are what carry an adult load, and this pair leads the lineup on both counts. Reviews specifically describe no visible movement in the joint under adult weight, which is the thing most homeowners are worried about.
If you want to compare finished sets rather than brackets, our best swing sets roundup covers what pre-built options give up when you build instead.
Where the Eastern Jungle Gym kit gets awkward
Pressure-treated lumber swells in wet weather and can be tough to seat without sanding or a rubber mallet. Budget a few minutes of dressing the wood before assembly.
The supplied lag bolts are reported to rust through in humid climates such as Florida, and there are no written instructions in the box. Both are easy fixes that cost almost nothing.

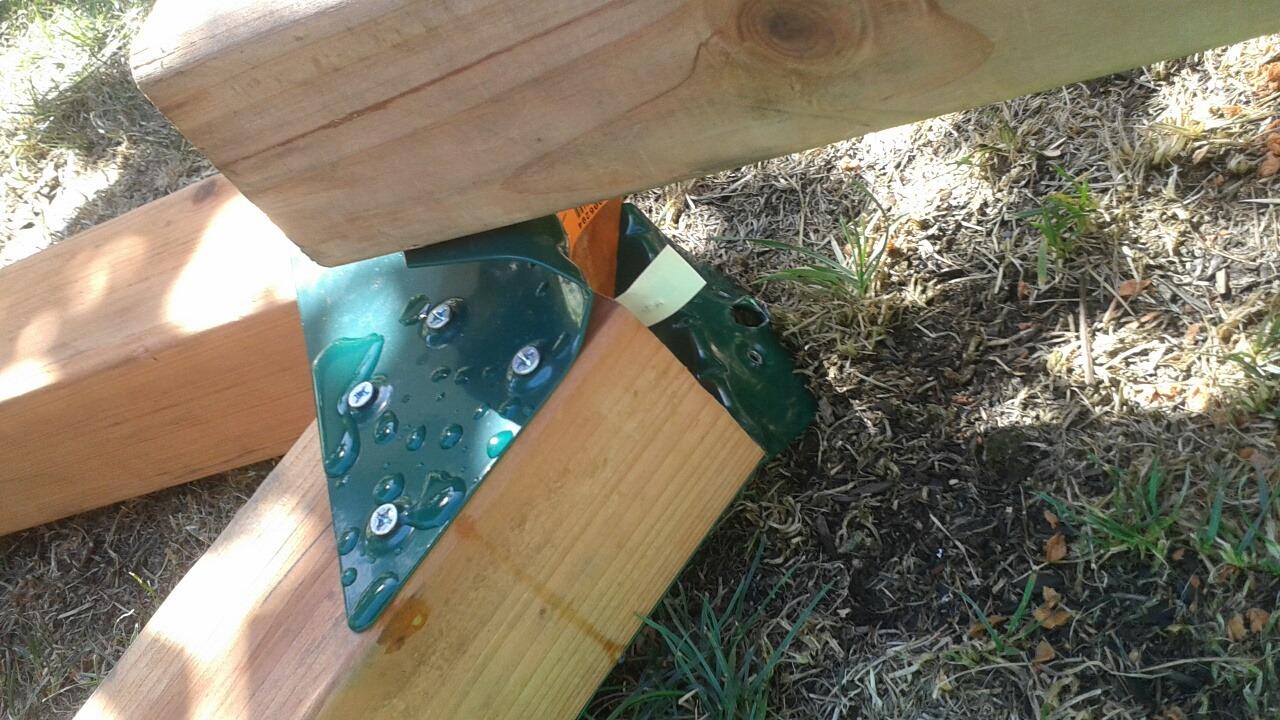

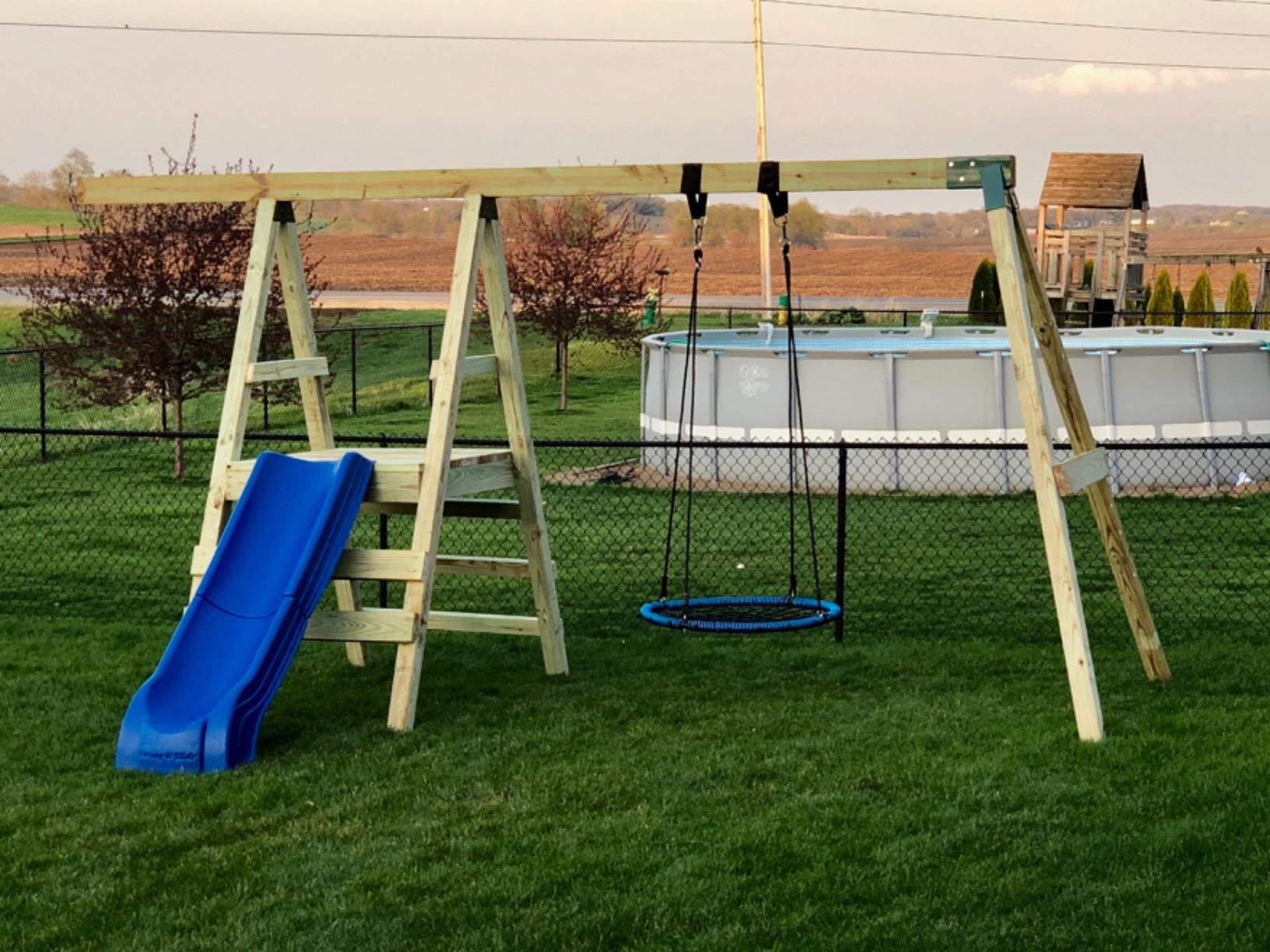

3. Swing-N-Slide EZ Frame Bracket, the Repair and Rebuild Pick
Swing-N-Slide WS 4467 EZ Frame Bracket for Swing Set Swing Beam (Includes 1 Bracket), Green
Single metal angle bracket, 10.4 ounces
10 by 4 by 2 inches
Doubles as a leg-angle cutting template
Pros
- Acts as a protractor for marking leg angles
- Light enough to handle solo
- Removes twisting from older frames
- Useful for combining with tower platforms
Cons
- Only one bracket per purchase
- You need four for a standard A-frame
- Directions assume a shorter build
This is not a two-bracket frame kit, and treating it as one is the single most common buyer mistake. It is a single metal angle bracket sold one per unit, and you need four of them, plus separate EZ Frame Brace supports, to stand up a full A-frame.
What it does better than anything else here is act as a template. Builders use the bracket itself as a protractor to mark the leg cut angle before taking the saw to the lumber, which removes the guesswork that otherwise makes a homemade frame lean.
At 10.4 ounces and 10 by 4 by 2 inches, it is trivially easy to handle and position. Reviewers use these to straighten frames that twist, to rebuild storm-damaged sets, and to tie a swing beam into an existing tower platform rather than starting from scratch.
The 4.5 rating across 744 reviews reflects a tool that solves a narrow problem well. Buying four at once, plus braces, is the way to use it for anything structural.
Where this bracket earns its place
Repairs and rebuilds. If one corner of an existing frame is loose or racking, replacing that joint with a proper angle bracket is far cheaper than replacing the whole top assembly.
It is also the right choice if you want to control the leg angle yourself. Marking four identical cuts from the same template produces a square frame, which is what stops racking over time.
Where the single-bracket format bites
Quantity confusion is the number one complaint. Buyers assume two arrive and end up short, and the listing copy also mixes in text about a vinyl-dipped seat that is not part of this product.
The directions assume a shorter build, so righting a taller frame with them can fail. Treat the template function as the real feature and follow your own plan for the frame size.

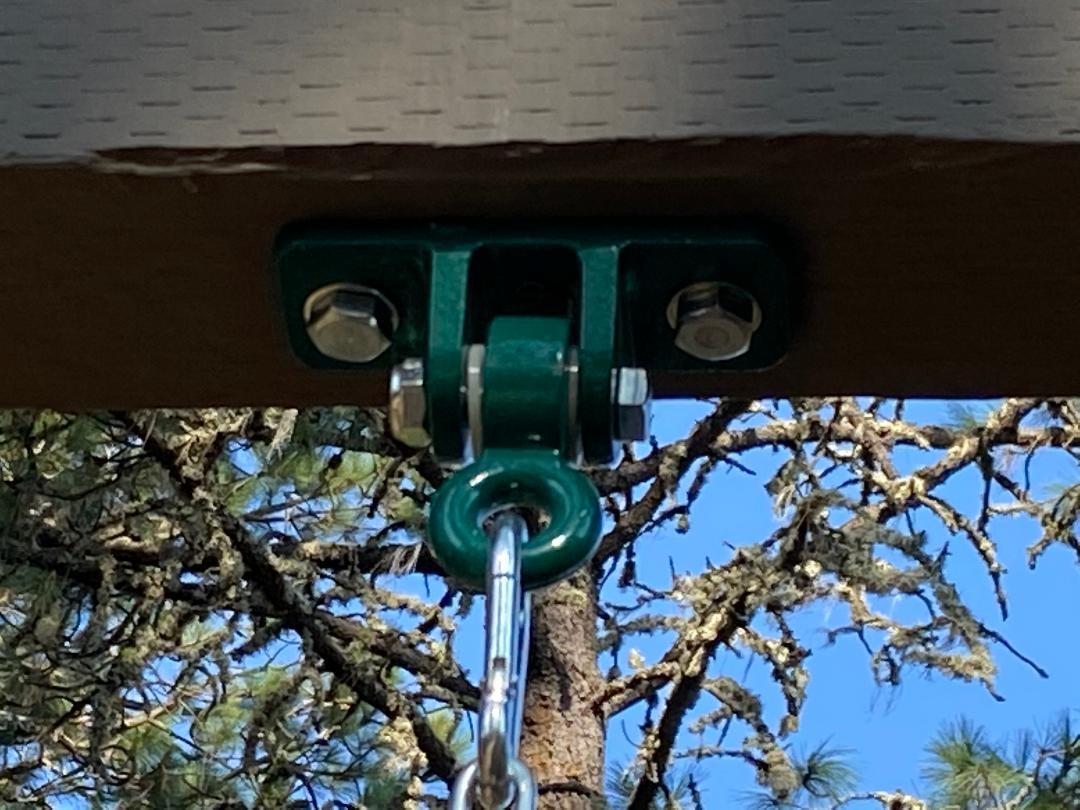

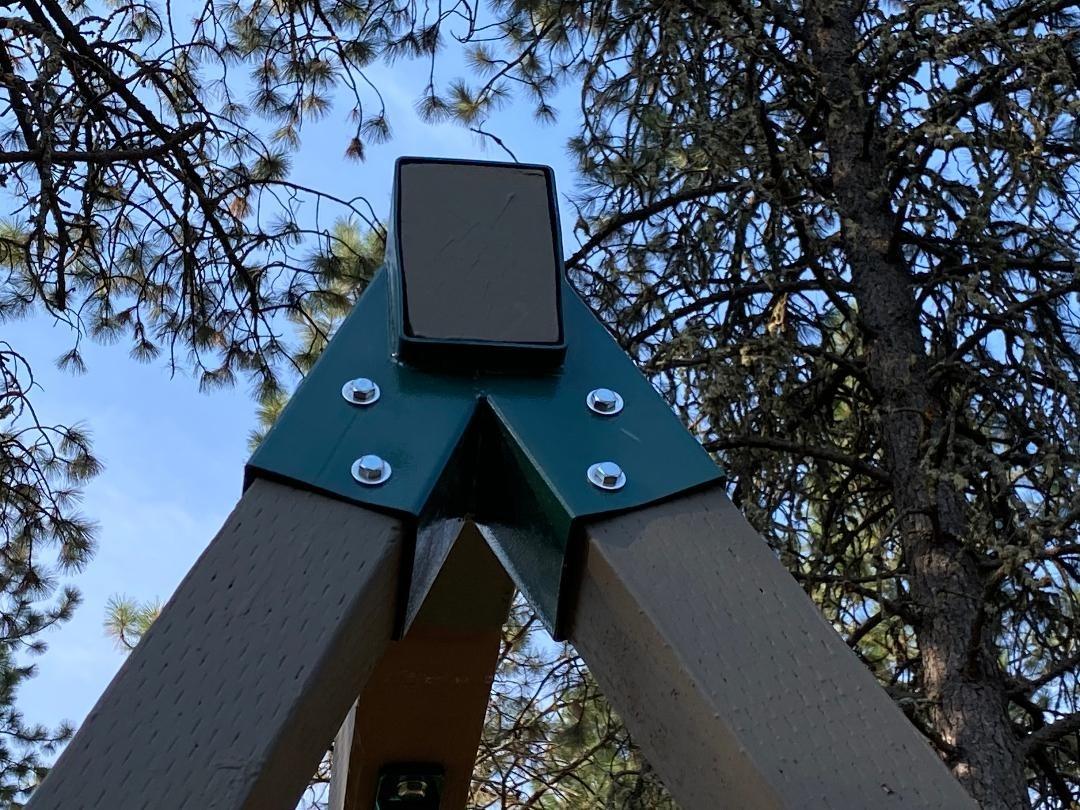

4. ECOTRIC A-Frame Brackets, the Best Value Pick
ECOTRIC 2 Pcs A-Frame Swing Set Bracket Heavy Duty Steel Green w/Mounting
10 pounds per bracket in steel
14 pre-drilled lag bolt holes
14 lag bolts and washers included
Pros
- 14 pre-drilled holes for repeatable bolt placement
- Hardware included in the box
- Handles very high weight once cross-braced
- Clean welds and even powder coat
Cons
- Bracket length falls short of advertised size
- Lumber often needs planing to fit
- Posts can wiggle without shims or cross bracing
ECOTRIC is the pick if you want a two-bracket kit with more bolt positions than the entry-level options. Each bracket carries 14 pre-drilled holes, which lets you place lag bolts accurately and repeatably instead of eyeballing a two-hole pattern.
Owners report these hold very high weight once the frame is assembled and cross-braced with a 2×4, and the 4.8 rating sits alongside a much lower review count than the two leaders, so treat the strong score as encouraging rather than proven at scale.
The fitment spec is unusually honest. The bracket opening measures 3-5/8 inch by 5-5/8 inch against a true kiln-dried 4×6 of 3-1/2 inch by 5-1/2 inch, and the manufacturer tells you to measure your lumber before buying rather than after opening the box.
Hardware is included: 14 three-inch lag bolts and washers. The instruction not to force wood into the slot is worth following, since a planer produces a far better seat than a mallet and a bad mood.
What makes this the value pick
More bolt holes than most competitors, hardware in the box, and 10-pound brackets at 4.8 stars. If you want extra fastening points without moving to a reinforced design, this is the bracket to buy.
Package size is listed at 18.11 by 12.6 by 11.42 inches, so it is bulky in the box but nothing unusual for a steel frame kit.
Where the ECOTRIC brackets lose points
The most cited drawback is that the brackets measure shorter than advertised, which can leave side-to-side play at the top of the frame. Reviewers resolve this with 2×4 cross bracing and ground anchors.
Lumber still needs planing or grinding for the snug slots, and posts can still move slightly without added shims. Neither is a defect, but both are steps you should plan for.

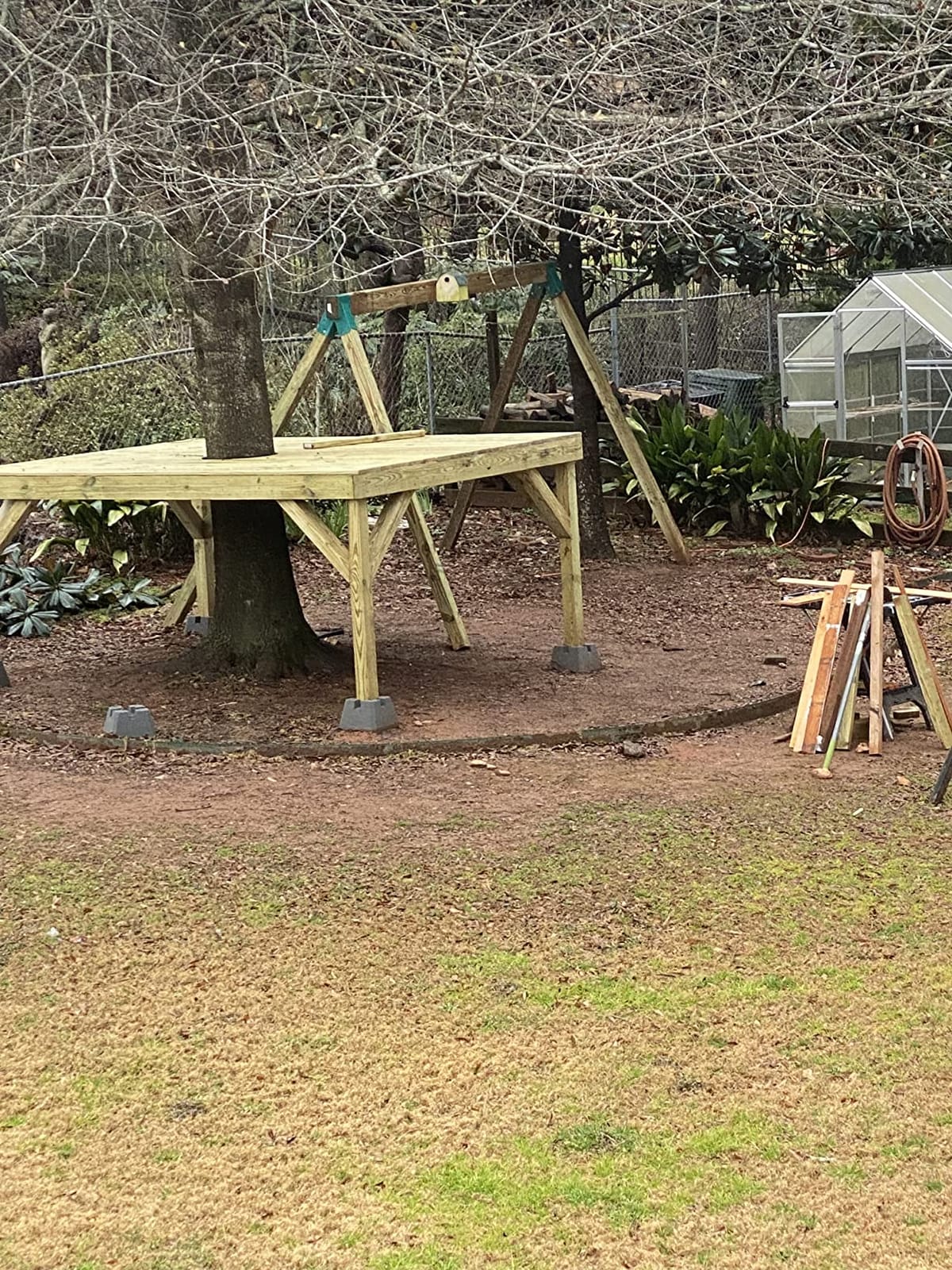

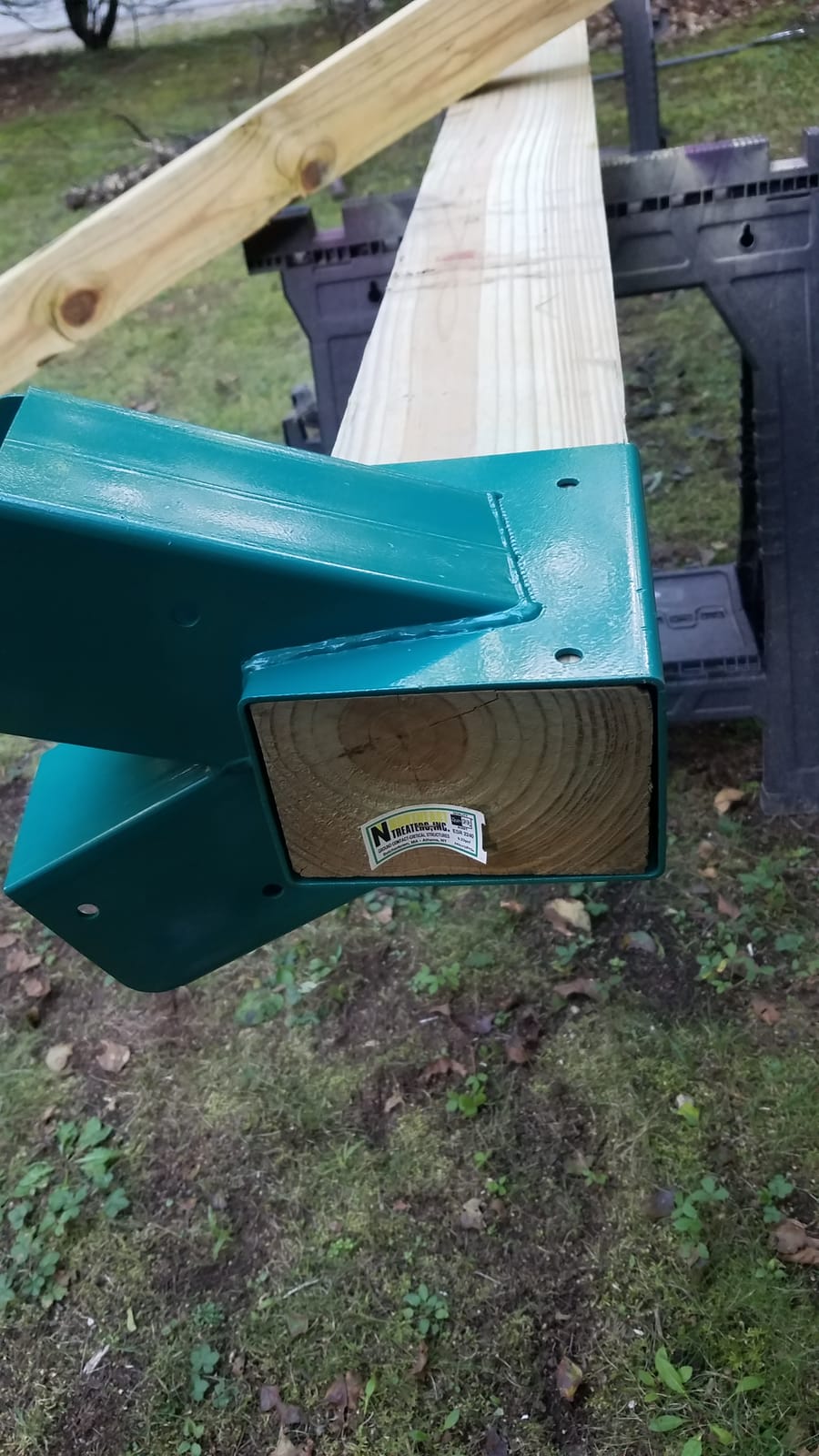

5. HANDYGO Swing Set Brackets, Built for a One-Day Finish
HANDYGO Swing Set Brackets – 2 DIY Wooden Swing Hardware Bracket, Playground Equipment Parts, with Mounting Accessories, for Outdoor Play, Green
16.9 pounds of solid steel
28 wood screws and 28 washers
Green powder-coated finish
Pros
- 16.9 pounds of solid steel with clean welds
- 28 screws and washers supplied
- Powder coat holds up without rusting
- 30-day warranty with free returns
Cons
- Bolt holes do not line up opposite each other
- Fresh pressure-treated lumber needs planing
- Sized for a single seat rather than two
HANDYGO lands in the middle of the pack on paper and near the top in practice. The pair weighs 16.9 pounds with clean welds, and owners describe a snug fit that produces a frame with no wobble once the bolts are tightened.
Several reviewers report adults swinging on the finished frame with no movement, which is a good sign for a kit listed with a 300-gram weight field that plainly is not a load rating. Judge the steel, not that number.
The stated lumber fit is 3.8 by 5.8 inch true dimensions on the 4×6 beam and 3.85 by 3.85 inch on the 4×4 legs, which is roomier than most kits here and generally easier to seat. The 28 wood screws and 28 washers cover the joint completely.
A 30-day unconditional return window and accessible customer service make this the lowest-friction kit to order, which is why it suits a single weekend build.
Why builders finish fast with these
Roomier openings mean less planing, and the hardware is all in one box. Owners who built a first set often come back and build a second with the same brackets, which is the strongest repeat-purchase signal available.
The powder coat is doing real work here too. It resists corrosion without the pinholes that thinner sprayed finishes develop.
Where the HANDYGO bolt pattern bites
The bolt holes do not line up opposite each other, so you cannot through-bolt with a nut on the back. You are limited to lag screws driven from one face.
It is also listed for a single seat rather than a two-seat beam, and the snug fit still means fresh pressure-treated lumber needs planing or a mallet before assembly.

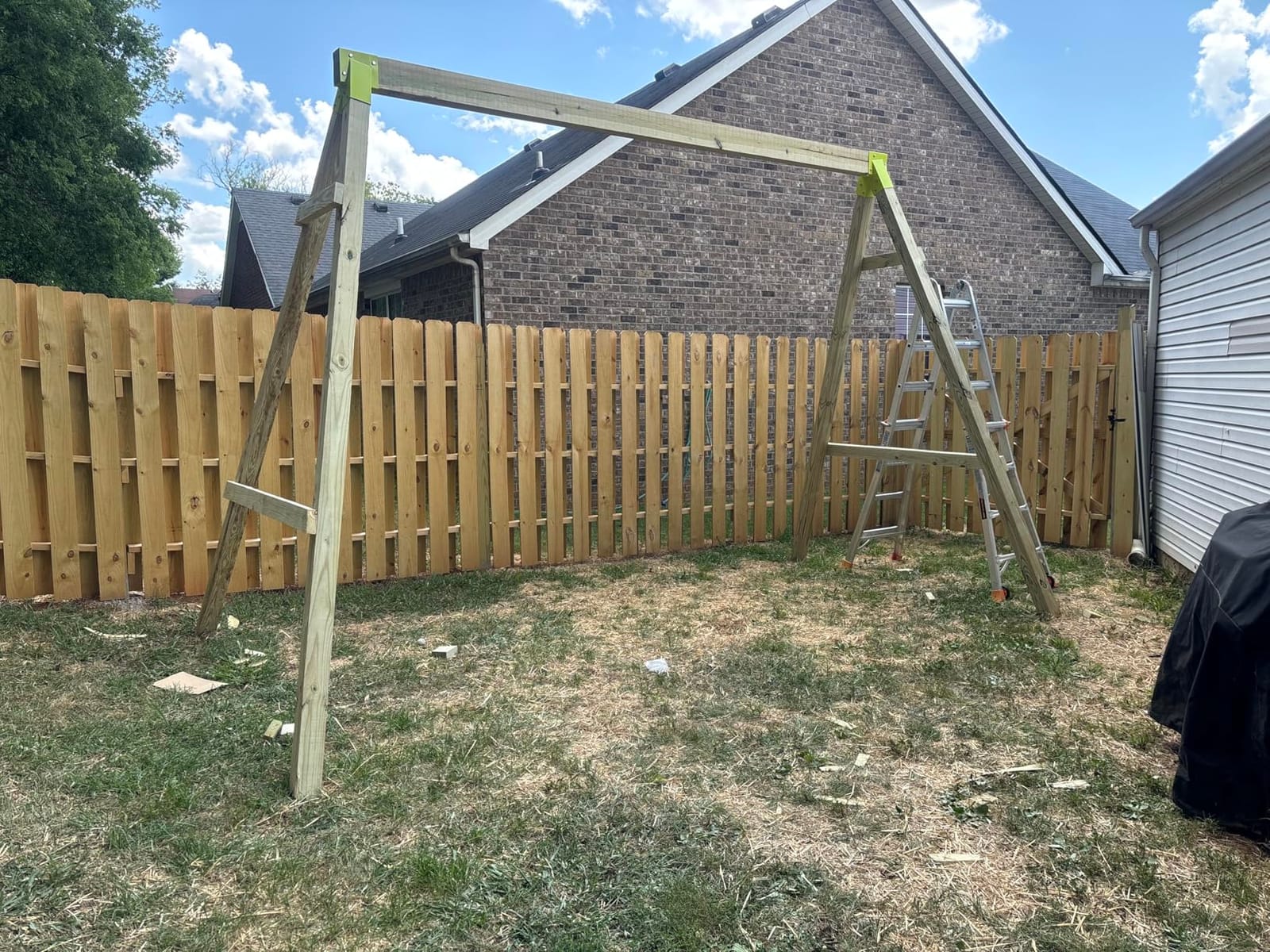

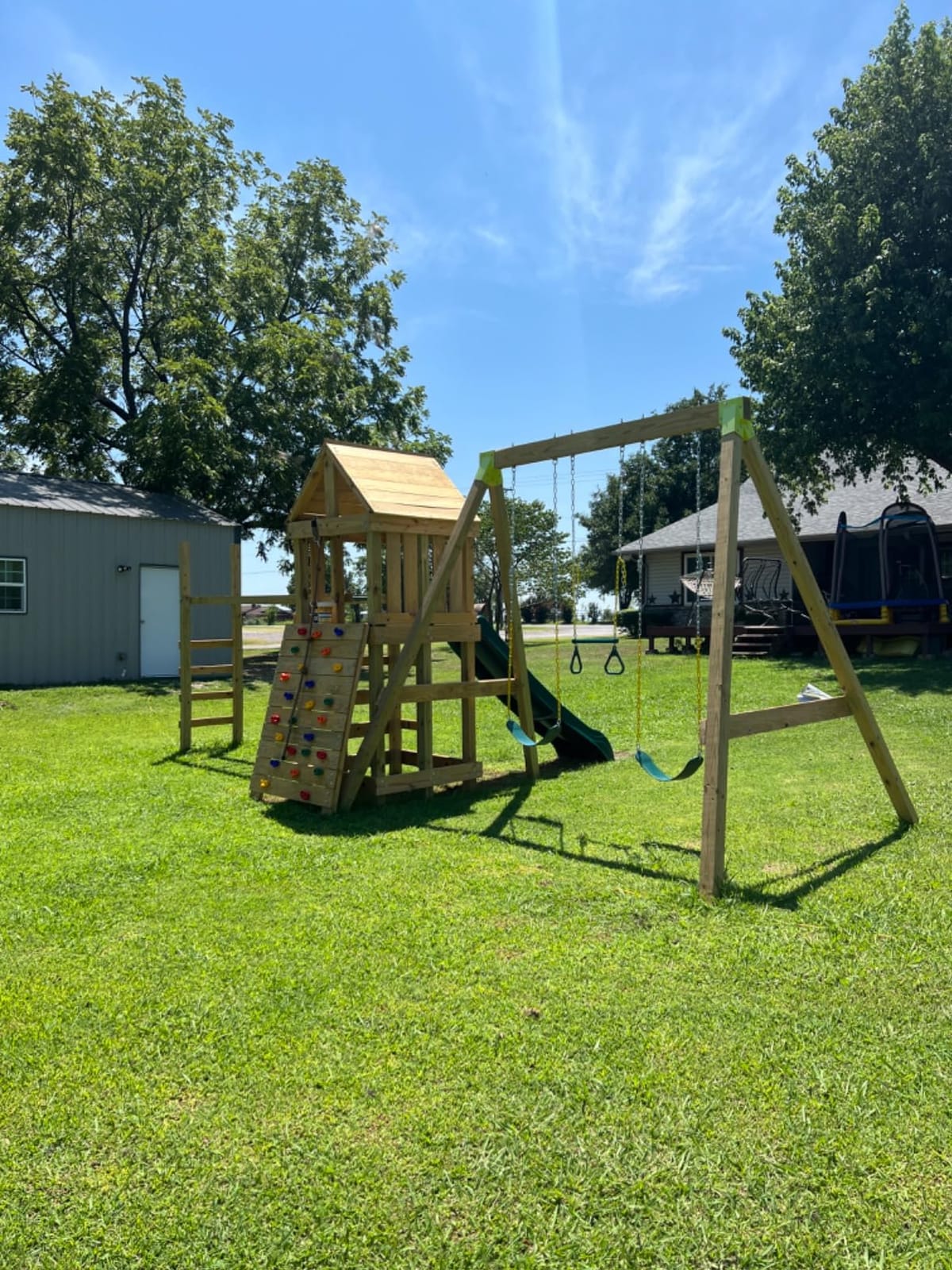

6. Highpro A-Frame Brackets, Welded Joints on a Leaner Kit
Highpro Swing Set Brackets-A-Frame 2 Swing Set Brackets with All Mounting Hardware
Heavy-duty steel with fully welded joints
28 zinc-coated lag bolts and washers
Two-seat compatible
Pros
- Fully welded joints rather than spot welds
- Complete hardware set in the box
- Listed for two seats
- Green powder coat resists corrosion
Cons
- Listed dimensions are unreliable
- Side-to-side movement without ground anchors
- One-year manufacturer warranty only
Highpro is the pick for anyone who wants fully welded joints and two-seat compatibility at a lighter 15.3 pounds per pair. The joint construction is the selling point here, and the manufacturer states plainly that it beats spot welds for load capacity.
Reviewers highlight the value against prefab kits, and several have used these to join multiple frame sections into a longer run of swings, which is a use case most kits in this roundup never get tested for.
The hardware is complete: 28 zinc-coated 5/16 inch by 3 inch lag bolts and 28 washers. Assembly runs beam first, then legs, then bolts, with a 2×4 cross piece recommended for stability.
The fit warning is the important line on the listing. Pressure-treated lumber swells and shrinks with moisture content, so the manufacturer expects you to shave the corners with a chisel or rubber mallet before the wood goes in.
What works well here
Welded joints, complete hardware and a two-seat rating in one box is a genuinely useful combination for a family build. The powder coat handles outdoor exposure without complaint in reviews.
It is also a sensible choice if you plan to extend the set later, since owners have successfully chained sections with these brackets.
Where the Highpro frame needs help
Listed dimensions are unreliable, so measure your lumber before ordering. Expect to trim every board that goes into the slot.
Owners report side-to-side movement at the top of the swing arc without ground anchors, and the manufacturer warranty runs one year, the shortest of any kit here.
7. VEVOR A-Frame Middle Brackets, the Only Kit With Full Nuts and Bolts
VEVOR A-Frame Middle Swing Set Brackets, Heavy Duty Carbon Steel Swing Set Hardware with Mounting Hardware, DIY Swing Set Bracket Swing Set Kit for 4×4 Legs & 4×6 Beam, Green (2 pc)
Carbon steel, 15.8 pounds
Rated up to 500 pounds
16 hex bolts, 16 nuts, 32 washers
Pros
- Only kit here shipping bolts
- nuts and washers
- Carbon steel resists rough handling
- Predrilled holes align across the bracket
- Good for multi-section builds
Cons
- Lumber fit is loose until trimmed
- Hole pattern is one-sided
- Spray coat is thinner and no warranty
VEVOR is the outlier in this lineup on fasteners, and for some builders that is the deciding feature. It is the only kit that ships a full M8 hardware set: 16 galvanized hex bolts, 16 galvanized nuts and 32 washers, so you can through-bolt the joint instead of driving lag screws into one face.
It is also the only kit here that publishes a load figure, rated up to 500 pounds, which makes it easier to reason about than the alternatives that print no capacity number at all.
The carbon steel construction takes abuse. Reviewers praise the heft of the brackets and how they hold up to sledgehammer-level assembly, and several builders have used them to join several sections together rather than building a single A-frame.
Recommended lumber is two 4x4x96 inch legs at a true 3.7 by 3.7 inch and one 4x6x114 inch beam at a true 3.7 by 5.7 inch, measured to 7 by 9 by 8 inches at the bracket.
Why the nuts and bolts matter
A through-bolted joint clamps both faces of the steel, which resists the twisting that causes racking. Every other kit here limits you to single-face lag screws, and the 4.7 rating reflects how well buyers like the result.
The 500-pound rating is the only published number in the roundup, so if you need a documented capacity for an adult swing, this is the one to build with.
Where the VEVOR layout frustrates
Despite the nuts, the hole pattern is one-sided, so long opposing lag bolts cannot be used. You are choosing between the hardware and the layout rather than getting both.
Actual lumber dimensions run off nominal, so 4x4s can feel sloppy until trimmed, and the green spray coat is thinner than a powder coat with no warranty behind it.

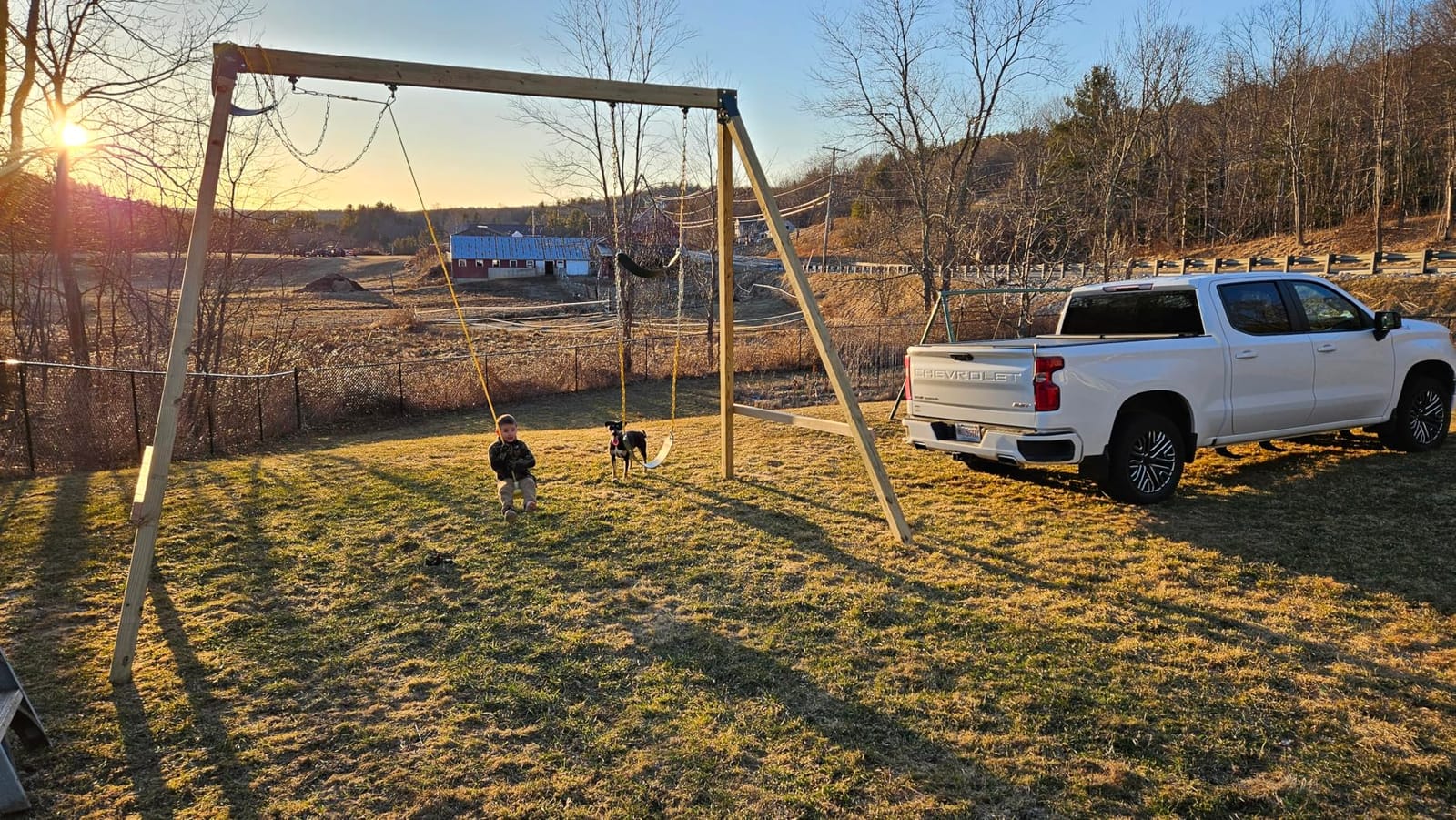

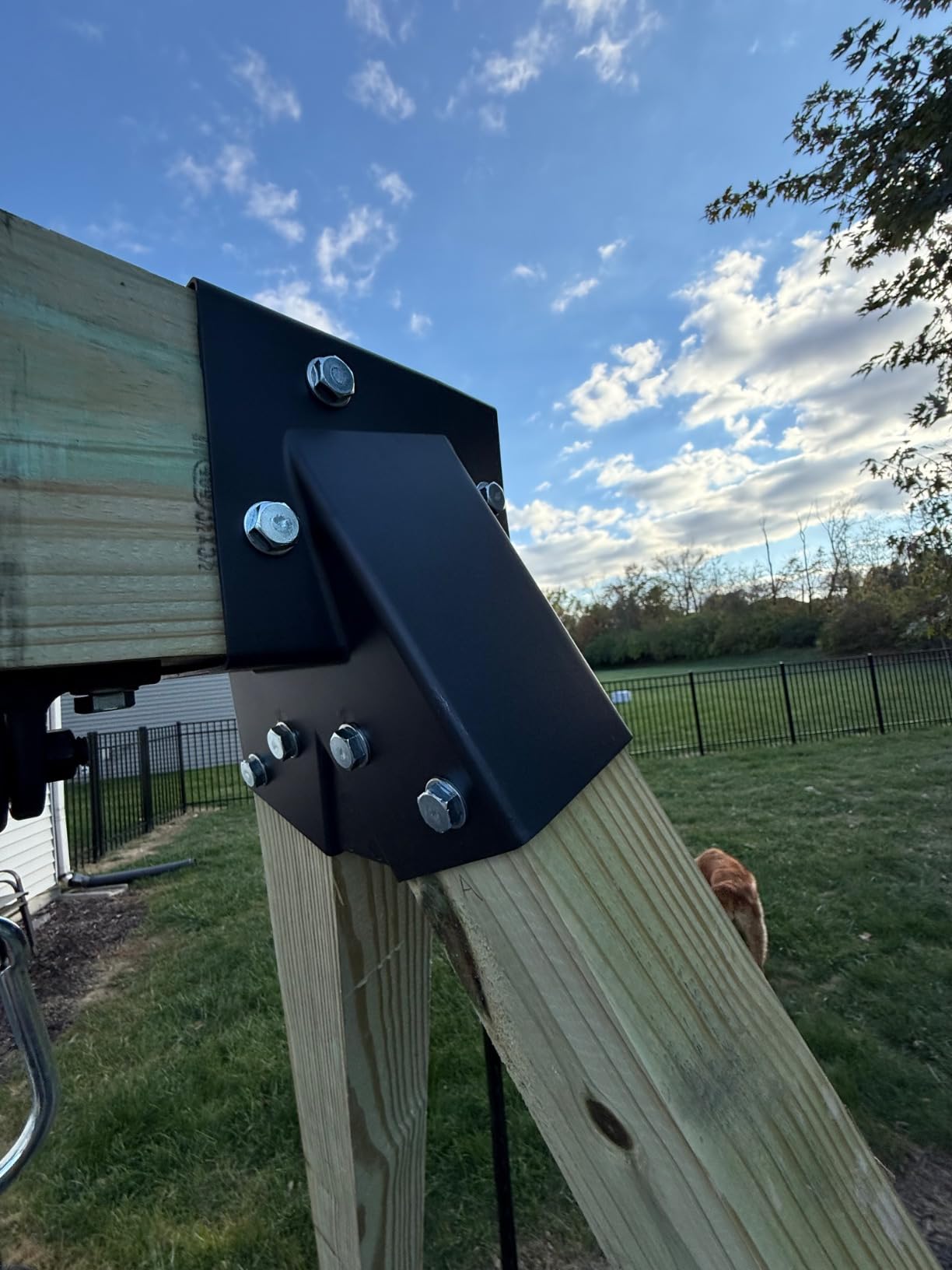

8. ABUSA Brackets and Hangers, the All-in-One Kit
ABUSA Heavy Duty Swing Sets Brackets Including 2 Green A-Frame Swing Set Brackets and 4 Swing Hangers for Playground Equipment Mounting Parts Hardware Included (Light Green)
Two brackets plus four swing hangers
Cast aluminum alloy, one-piece
28 bolts and 28 washers
Pros
- Only kit bundling four swing hangers
- Bearing-style hangers run silently
- Free spare brackets within one year
- Attractive finish for garden projects
Cons
- Cast aluminum can crack during fitting
- Far too tight for a nominal 4x6
- Lowest rating in the lineup
- Costs more without added strength
ABUSA is the only kit here that completes the frame in one purchase. You get two A-frame brackets plus four swing hangers, so you are not hunting down hanger hardware separately after the frame is up.
That makes it attractive for a single-weekend project, and the hangers use a silent bearing style that produces no chain noise. The finish is described as water-proof and dust-proof, and free spare brackets are available within a year.
Now the warning. These brackets are cast aluminum alloy rather than steel, and a meaningful share of buyers report the body cracking or shattering while fitting or bolting it, which they rightly treat as a safety concern. The 4.1 rating is the lowest in this roundup, with 14 percent one-star reviews.
Fit is the second issue. The stated true top beam size is 5.5 by 3.5 inch against 3.5 by 3.5 inch legs, and the fit for a nominal 4×6 is consistently described as too tight, requiring a mallet and substantial material removal.
Who should consider this kit
Someone building a porch swing, a garden frame or a decorative structure where appearance and silent hangers matter more than ultimate strength. The bundled hangers alone would cost you a separate shopping trip.
Buyers who carefully sized and shaved their lumber report a quiet, attractive finished frame, so the design is not inherently flawed in the right hands.
Where the cast aluminum worries us
Cracking cast aluminum under installation torque is the deal-breaker for a structure holding swinging children. Never force the wood or strike the bracket to seat it.
It also costs more than comparable steel kits without adding strength, and the manufacturer itself warns against striking or forcing installation.
9. MIXXIDEA 2 Swing Set Brackets, the Multi-Purpose Mount
MIXXIDEA 2 Swing Set Brackets for Swing Set A-Frame Heavy Duty with All Mounting Hardware, (Green)
Heavy gauge steel, 15 pounds
Fully welded joints
12 pre-drilled screw holes
Pros
- Heaviest gauge steel in the group after the leaders
- Bracket proportions larger than most rivals
- 45-degree leg stations fit 10-foot posts
- Usable for tree mounts and deer stands
Cons
- Supplied screws snapped under an impact driver
- 4x6 hard to source in some regions
- Listing states no lumber dimensions
MIXXIDEA is the one to buy if the bracket will do more than one job. Owners use the same pair for tree mounts, deer stands and shooting platforms, not just swing frames, which is a genuine advantage if you only own one set of brackets.
Reviewers rate the steel gauge and powder coat highly, and like that the brackets test-fit snugly on a 4×6 crossbeam with 45-degree leg stations suited to 10-foot 4×4 posts.
Each bracket is pre-drilled with 12 screw positions and open from both ends, so lumber slides in rather than being threaded. The joint is described as fully welded, and the pair weighs 15 pounds at 4 by 6.7 by 12 inches.
Two practical warnings: the included screws are reported to snap when driven with an impact driver, and the listing states no lumber dimensions at all, so you are fitting blind until the box arrives.
Those trade-offs are the whole review. Everything else about this kit, including the welded steel and the coating, draws consistent praise.
What works in its favor
Bracket dimensions are larger and better proportioned than many competing kits, and the 45-degree leg stations suit 10-foot posts. The thick powder coat also handles multi-purpose outdoor use without complaint.
If you are mounting a beam between trees or building a stand, the same hardware covers all three projects.
Where the MIXXIDEA kit comes up short
The included screws are the weak point. Bring your own exterior-grade fasteners rather than trusting them, especially with an impact driver.
A 4×6 beam is hard to source in some regions, and the fit can be loose on plain 4×4 legs, so measure before committing to a build day.
10. BeneLabel A-Frame Brackets, the Reinforced Gusset Design
BeneLabel A-Frame 2 Swing Set Brackets, Heavy Duty Steel Swing Set Hardware with Mounting Hardware, DIY Swing Set End Bracket Swing Set Kit for 2 (4×4) Legs & 1 (4×6) Beam, Green
Powder-coated steel, about 21 pounds per pair
32 wood screws and 32 spacers
Laser-welded joints
Pros
- Reinforced triangle at the load point
- Heaviest pair in this lineup
- Most complete hardware set with spacers
- Laser-welded powder-coated steel
Cons
- Listed age range of 10-20 years is odd
- Lumber not included and true-size stock required
- Bulky 12 by 11 by 20 inch package
BeneLabel is the heaviest pair in this roundup at roughly 21 pounds, and it is the only design that adds a triangular reinforcement at the load point. That gusset is the specific feature owners cite when they explain why the finished frame feels rigid.
The hardware package is also the most complete of the two-bracket kits, with 32 wood screws and 32 metal spacers. Spacers let you set a consistent gap between bracket and wood, which is useful when your lumber runs slightly under the finished dimension.
Construction is powder-coated steel with laser-welded joints, described as resistant to wear and scratches. The recommended build is one kiln-dried 4×6 at 120 inches and four 4×4 legs at 96 inches, finishing at 12 by 8 by 7 foot 8 inches.
One oddity to note: the manufacturer lists an age range of 10 to 20 years, which does not match how most families use a backyard set. Weigh the steel and the gusset, not that line.
Where the reinforcement pays off
The added triangle at the support point resists deformation under repeated loading, which is the failure mode that shows up as a slowly sagging joint after a few seasons of hard swinging.
For a set that will carry adult weight, the extra steel mass and the spacer hardware give you more ways to control the fit than the lighter kits offer.
Where the spacers do not help
Spacers solve loose lumber, not tight lumber. If your boards measure over the bracket opening you will still need to remove material.
The 12 by 11 by 20 inch package is awkward to handle alone, and the listed age range may confuse anyone shopping for a young child’s set.
Bracket Types Explained: What Part of the Set Do You Need?
Most DIY mistakes start with buying the wrong category of hardware, so here is the plain definition. An A-frame end bracket is the steel angle at each top corner where the beam meets a pair of splayed legs. You need two for a standard frame, and nine of the ten kits above are exactly this.
A middle bracket bolts to the side of the beam partway along its length and creates a third or fourth swing station. If you plan to add swings later, buy the two end brackets now and confirm the middle station hardware matches your beam height. VEVOR’s kit is named for this use, though the other kits bolt to a beam face in the same way.
Swing hangers are the separate hardware the seat hangs from, and they are not usually in the bracket box. Most builders here add them separately, or pick up a bundled kit. A leveling bracket or foot handles a sloped yard by letting a leg reach different ground heights, and none of the ten kits in this roundup include them.
One more category worth naming: the brace. A 2×4 cross piece between the legs is the single most recommended addition across builder forums, and every steel kit’s own instructions suggest it. It costs a few board feet and does more for frame rigidity than any bracket upgrade.
Lumber Fit: Why Your 4×6 Measures 3.5 by 5.5 Inches
Lumber is sold by nominal size and milled to a smaller actual size, which is why a 4×6 actually measures about 3.5 by 5.5 inches. Brackets are machined to a specific opening, and the gap between those two numbers decides whether your build goes smoothly or badly.
Here are the published openings from the kits above. BETOOLL, ECOTRIC and the Eastern Jungle Gym bracket all open at 3-5/8 by 5-5/8 inch for the beam and 3-5/8 by 3-5/8 inch for the legs, which expects true dimensions of 3-1/2 by 5-1/2 and 3-1/2 by 3-1/2. VEVOR and BeneLabel quote true sizes of 3.7 by 5.7 and 3.7 by 3.7, so a smaller opening and more trimming. HANDYGO is the roomiest at 3.8 by 5.8 and 3.85 by 3.85.
The practical rule: buy your lumber first, measure it with a tape, and only then order brackets. If you have already ordered, plan on a planer, a chisel or a rubber mallet. Forcing pressure-treated wood into a steel slot splits the board; easing it in is a five-minute job.
A standard cut list for a 12 foot frame is one top beam at 114 to 120 inches, four 4×4 legs at 96 inches, and one 2×4 cross piece. Add a burial allowance of at least 2 feet to each leg if you are setting them in concrete, which is why a 96 inch leg and a 120 inch leg produce the same finished height at different bury depths.
Swing Spacing, Beam Length and Anchors
Swing spacing is where DIY frames get crowded. The general rule most builders follow is a minimum of 2 feet between swing centers for toddler belts, and considerably more for a full-length seat. A 12 foot beam comfortably carries two swings with generous clearance at each end, and three is tight unless the beam runs past 14 feet.
Hang the beam’s center of balance at the middle of the frame. Mounting hangers off-center is the most common reason a homemade set feels like it is tipping forward, and no bracket design corrects for it.
Anchors decide whether the frame stays put. Concrete footings are described consistently in builder forums as the reliable option, with a minimum of 2 feet of post set in concrete. Ground spikes and augers work on flat, firm soil but are what r/woodworking threads identify as the usual reason frames rack over time, and one thread there notes that brackets should be limited to an 8 foot frame if you skip concrete. If you go without concrete, add diagonal braces and a 2×4 cross piece, which builders call your best friends for frame rigidity.
Fall clearance matters as much as the joint. Keep an open use zone around the swing arcs with no fences, planters or hard surfaces, and check the guidance for the ages in your household rather than extrapolating from a toddler rating to an adult swinging the same beam.
How to Install A-Frame Brackets
1. Measure and cut your lumber to the bracket’s published opening size, not the nominal name. Dress every board that resists the tape measure.
2. Lay the frame face down on flat ground. Bolt both brackets to the top beam first, working from the center outward so the beam stays straight.
3. Slide the four 4×4 legs into the brackets, splaying each pair to match the bracket’s leg angle. Most kits publish a finished height, and matching it keeps the beam level.
4. Pre-drill pilot holes for every lag screw, then tighten in a criss-cross pattern so the joint clamps evenly. Snag the wood with no pilot holes and you will split it.
5. Add the 2×4 cross piece between the legs and any diagonal braces you want, both while the frame is still on the ground.
6. Raise the frame with a second person, set the legs, and anchor before anyone swings. Concrete footings at a minimum 2 feet of depth are the reliable choice.
7. Hang the swings last, centered on the beam with your chosen spacing, and re-check level before the first push.
Frequently Asked Questions
Is it cheaper to buy a swing set or build your own?
Building usually costs less in total because you reuse tools and choose your own lumber grade, and a bracket kit is a small share of the spend compared with the frame, swings and concrete. The trade-off is time: a DIY A-frame takes most of a weekend plus curing time for footings, while a pre-built set is ready the same day. Build it yourself if you already own tools and want a size and height that retail sets rarely offer.
What are the best anchors for a swing set?
Concrete footings with posts set at least 2 feet deep are the most reliable option and the one builders reach for when a frame starts to rack. Ground spikes and auger anchors are faster and cheaper, but they work best on flat, firm soil and need diagonal braces to resist side movement. Whichever you choose, anchor the legs before the frame takes any swinging load, and add a 2×4 cross piece between the legs.
How far apart should swing hangers be placed on a swing set?
Allow at least 2 feet between swing centers for toddler belt seats, and more for a full-length toddler seat or an adult swing. A 12 foot beam fits two swings with clear space at each end, while three swings need a longer beam, generally past 14 feet. Keep both hangers symmetric around the center of the beam, because mounting off-center makes the frame feel like it is tipping forward.
How do I build a frame swing set?
Cut a top beam and four legs to the dimensions your bracket publishes, accounting for the fact that a nominal 4×6 measures about 3.5 by 5.5 inches. Bolt the brackets to the beam with the frame on the ground, slide the splayed legs in, pre-drill pilot holes, and tighten the lag screws in a criss-cross pattern. Add a 2×4 cross piece, raise the frame with a second person, set the legs in concrete at a minimum of 2 feet, then hang the swings centered.
What type of timber is best for a swing set?
Pressure-treated 4×4 is the standard choice for ground-contact legs because it resists rot, and kiln-dried pressure-treated stock gives the most predictable fit in a steel bracket. Cedar and similar rot-resistant woods suit visible parts where children and bare skin contact the frame. Buy true-dimension kiln-dried lumber where possible, measure it before ordering brackets, and expect to shave fresh treated boards that arrive oversized.
Final Verdict
The BETOOLL A-Frame 2 Brackets take the top spot for a simple reason: fully welded heavy gauge steel, all 28 screws and washers in the box, a 4.8 rating across more than 3,700 reviews, and a published beam-length limit that tells you exactly where the design stops working. That is the best swing set brackets for DIY builds pick we would hand a first-time builder.
Buy Eastern Jungle Gym’s Easy 1-2-3 kit if adults will be swinging and you want the heaviest steel in the roundup. Pick ECOTRIC for the most bolt positions at a solid rating, VEVOR if you want to through-bolt and need a published load figure, and the Swing-N-Slide angle bracket if you are repairing one corner instead of building a frame. Whatever you order, measure your lumber first, add the 2×4 cross piece, and anchor the legs before the first push.
