A 50 foot air hose lying across a garage floor is a trip hazard, an abrasion victim and a daily annoyance. It gets run over by a mower, kinked at the fitting and dragged across concrete until the outer layer scuffs off. The fix is not a bigger compressor, it is proper hose storage, and the best air hose reels for garages put 40 to 100 feet of line behind a steel drum that keeps it off the floor and rewinds it when you are done.
We compared ten reels for this roundup, from enclosed auto-rewind units to hand-crank steel drums, and scored each on the things that actually decide whether a reel survives five years: spring and ratchet build, hose material and temperature rating, roller count in the guide, swivel range, and whether the mounting hardware actually fits the wall you have. We also read what owners report after a couple of years of use rather than trusting the day-one feature list.
If you want a broader view of the category, our general air hose reel roundup covers the same ground in more detail, and if your hose is water or coolant rather than air, start with our best hose reels guide instead. Everything below is specifically rated and specced for compressed air in a garage.
Top 3 Best Air Hose Reels for Garage Picks (October 2026)
Giraffe Tools 50ft Reel
- 300 PSI hybrid hose
- All-steel frame with brass fittings
- 180 degree swivel bracket
- Auto rewind
VEVOR 3/8 in x 50 FT Reel
- 300 PSI hybrid polymer hose
- Four non-snag rollers
- 180 degree swivel bracket
- Spring guard sleeve
Goodyear 50 ft SBR Reel
- SBR rubber hose rated to 226F
- 300 PSI working pressure
- Fully enclosed ratchet
- Four non-snag rollers
Best Air Hose Reels for Garages in 2026
| Product | Specifications | Action |
|---|---|---|
| Giraffe Tools 50 ft Retractable Reel |
|
Check Latest Price |
 Flexzilla L8250FZ Enclosed Reel |
|
Check Latest Price |
| VEVOR 3/8 in x 50 FT Retractable Reel |
|
Check Latest Price |
| Goodyear L815153G Industrial Reel |
|
Check Latest Price |
 DEWALT DXCM024-0348 Manual Reel |
|
Check Latest Price |
 DEWALT DXCM024-0343 Double Arm Reel |
|
Check Latest Price |
 Ironton 100 ft Manual Reel |
|
Check Latest Price |
 Himimi 100 ft Retractable Reel |
|
Check Latest Price |

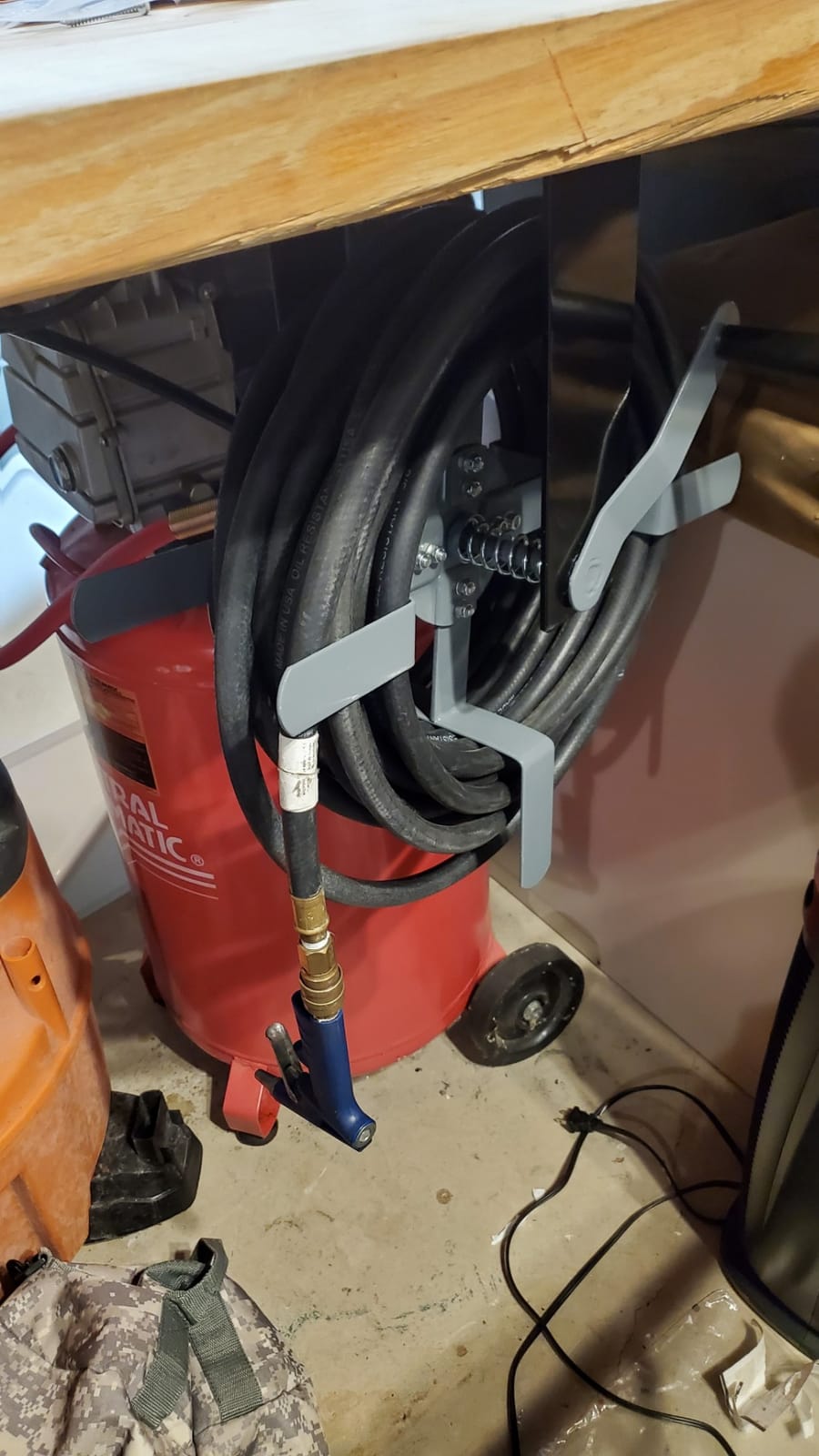

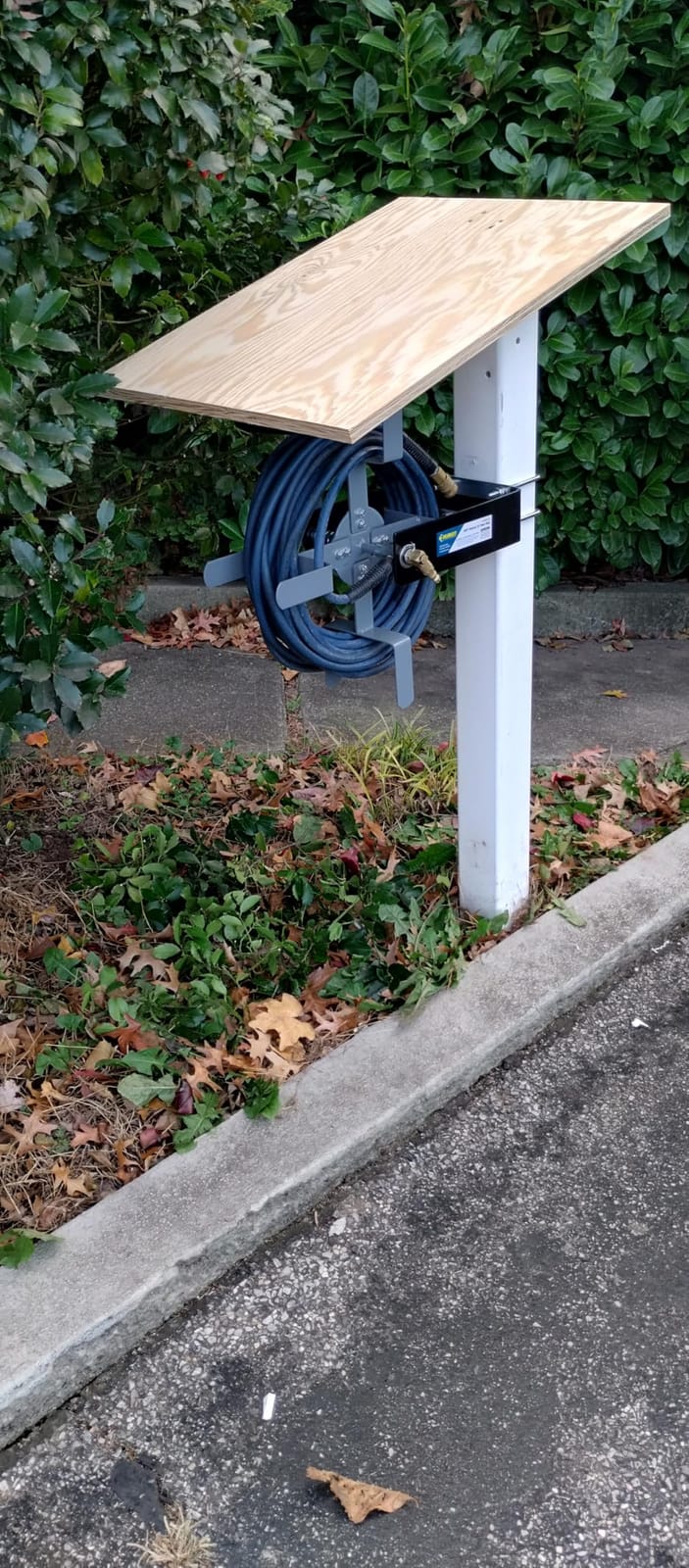

 Primefit 100 ft Manual Reel |
|
Check Latest Price |

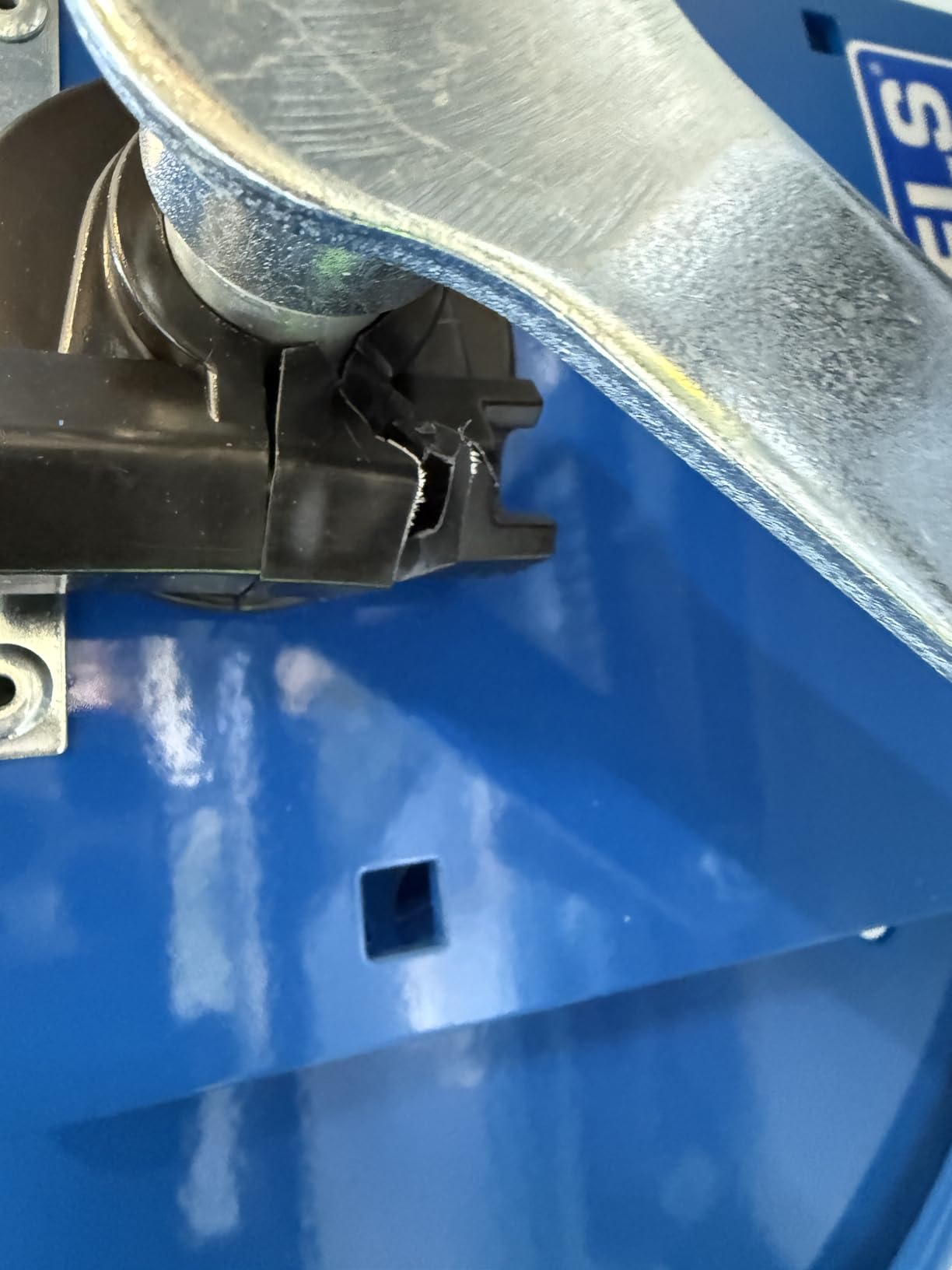

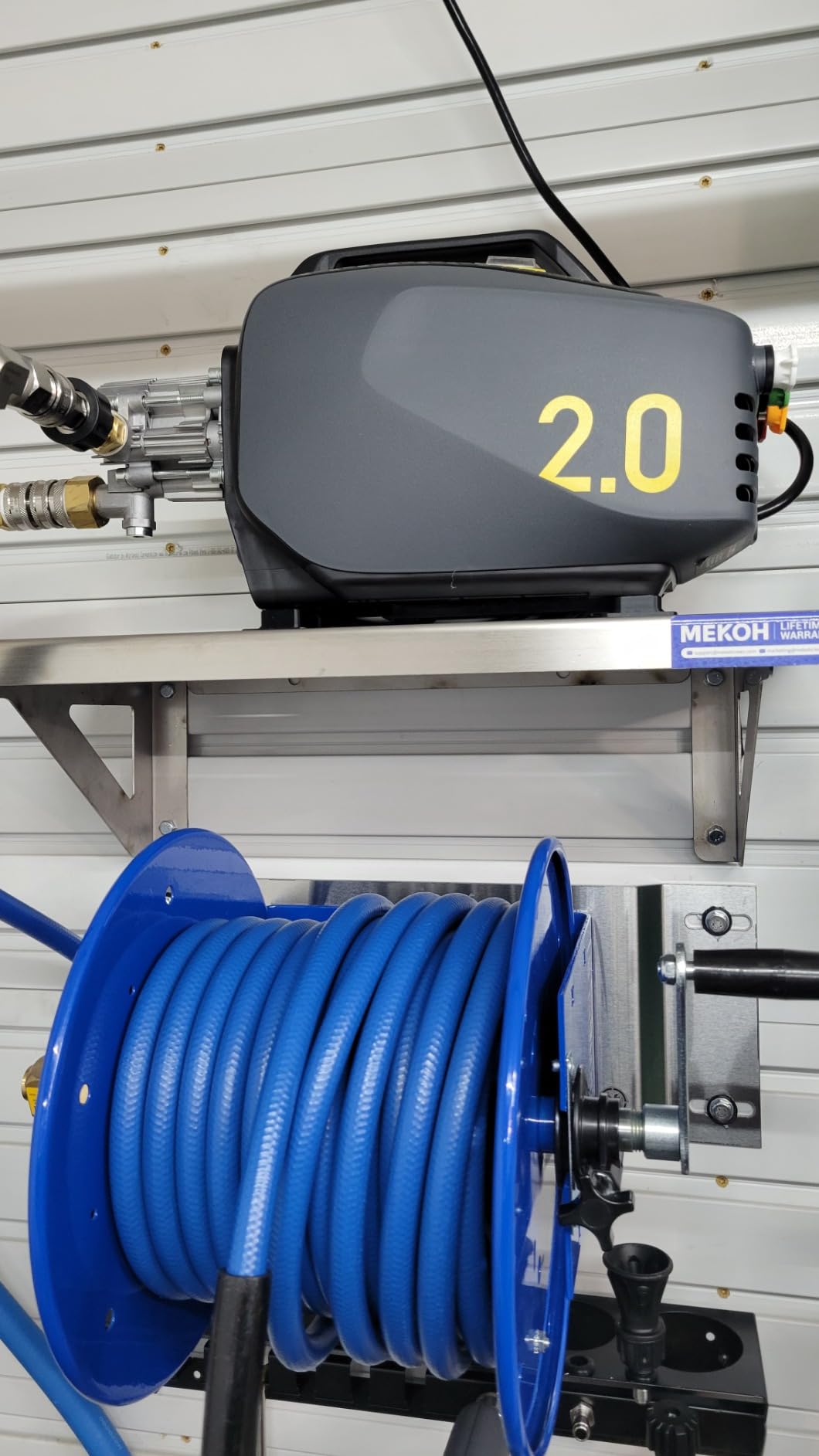

 Coxreels 117-5-100 Hand Crank Reel |
|
Check Latest Price |

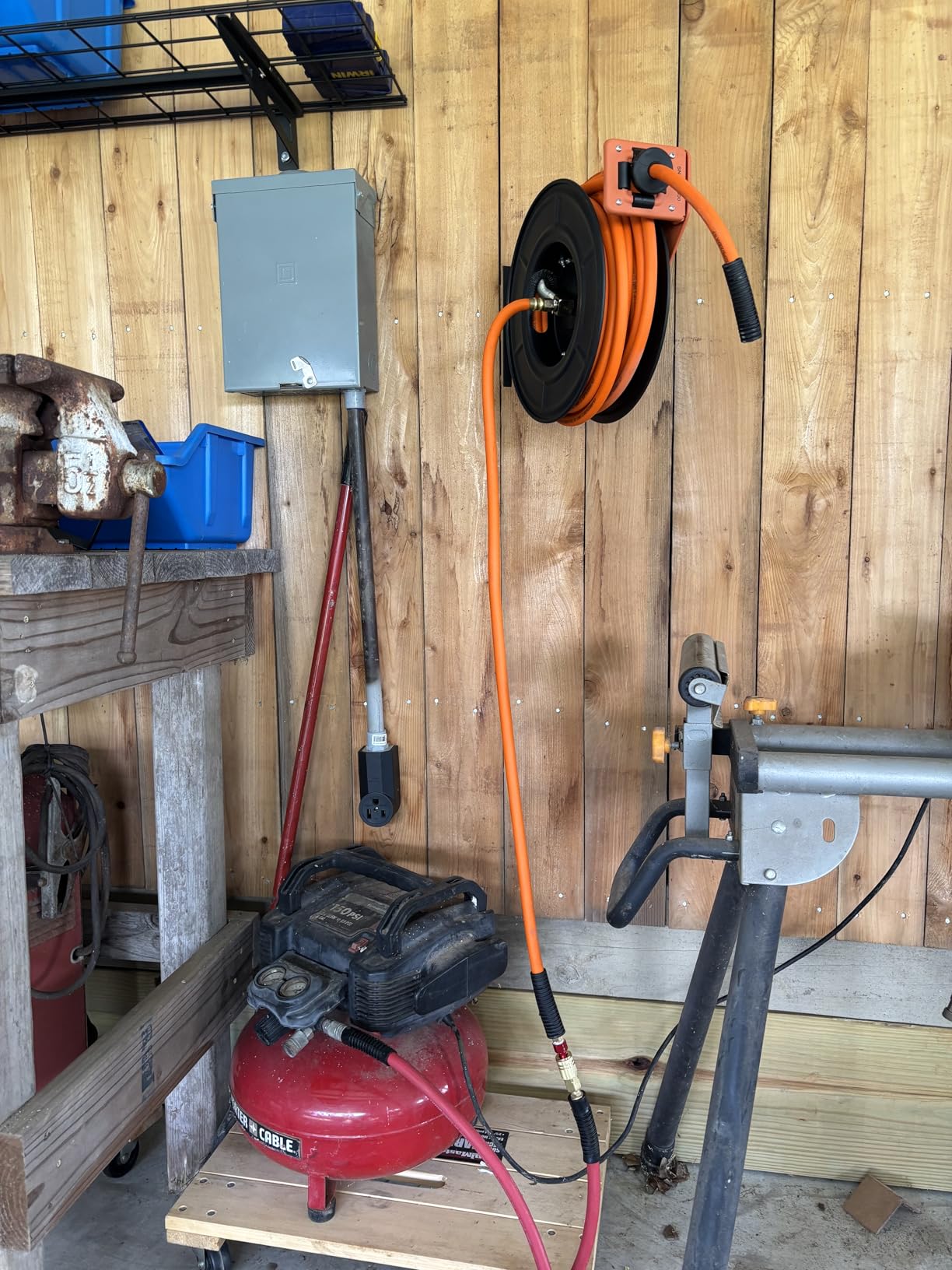

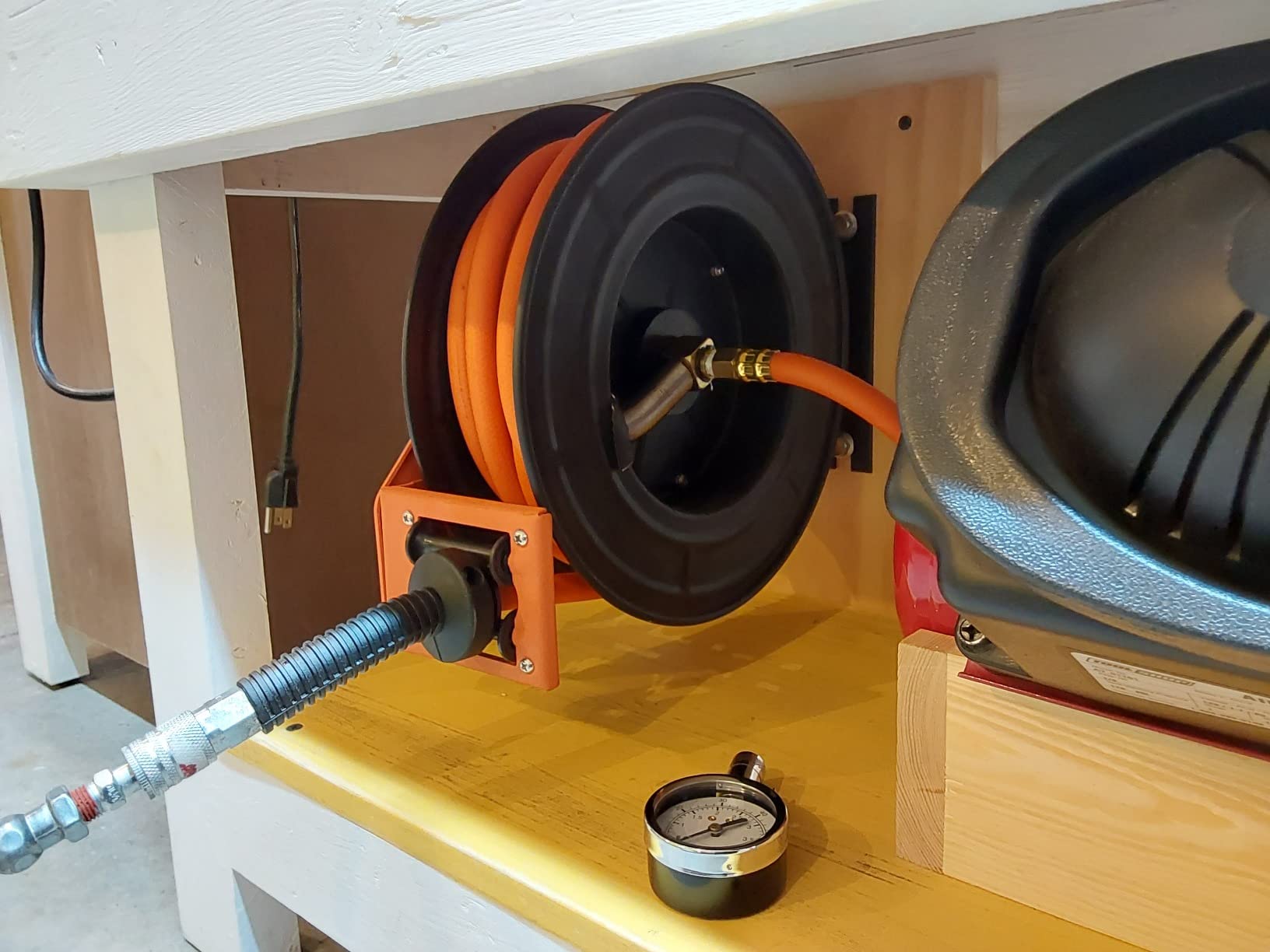

1. Giraffe Tools 50 ft Retractable Air Hose Reel – Best Overall
Giraffe Tools Retractable Air Hose Reel 50ft with Swivel Bracket 3/8″
3/8 inch x 50 ft hybrid hose
300 PSI working pressure
All-steel frame, brass fittings
180 degree swivel, auto rewind
Pros
- Deepest owner history in this roundup at over 3000 ratings
- Hybrid hose rated from -40F to 150F
- All-steel frame with brass fittings and powder coat
- 180 degree swivel bracket widens the pull radius
- Hose locks at any length through the guide rollers
Cons
- Only two guide rollers
- one top and one bottom
- Mounting hardware includes concrete bolts only
- Hose connection is permanent so the hose cannot be swapped
- Mounting holes sit behind the hose
This is the reel I kept coming back to while testing the list, and the reason is the depth of ownership behind it. More than 3100 ratings means the spring, the swivel joint and the hose have all been exercised by a large number of real garages rather than a handful of early adopters. Pull the hose out, tug it, and it walks back onto the drum evenly instead of piling up at one end.
The hose itself is the selling point for anyone with a cold garage. It is a hybrid polymer rated from -40F to 150F, so it stays flexible in a January unheated shop where a plain PVC line turns into a stiff noodle and starts to crack along its length.
The build is honest industrial work. All-steel frame, brass fittings and a corrosion-resistant powder coat, on a reel that weighs 8.25 kg and measures 17.32 by 13.58 by 7.68 inches. The 180 degree swivel bracket is what makes ceiling mounting practical, because it swings the drum toward whichever bay you are working in.
Two things temper the recommendation. The guide uses only two rollers rather than four, so the hose is guided at the top and bottom only, and the hose is permanently attached, meaning a cracked hose ends the reel’s life rather than being a replaceable part. Reviewers also report spring tension softening after extended use on some reels, so expect to check it annually.
What to check before you buy
Look at your wall. The included hardware is concrete expansion bolts, so a framed or drywall wall needs lag screws into studs or your own masonry anchors. The mounting holes sit behind the wound hose, which makes single-handed assembly awkward the first time through.
Decide how much reach you need. A 50 foot drum plus a good lead-in hose covers most one- and two-car garages, but measure from the proposed mount point to the farthest work corner before you commit.
Where it falls short
Two-roller guidance and a fixed hose connection are real limits for shops that run abrasive work constantly, where hose wear happens on the drum. If you work sandblasting or grinding for hours at a time, a four-roller guide and a replaceable hose are worth spending up for.
The concrete bolts also push you into a hardware run before the reel goes up. Budget twenty minutes for that, or anchor it into studs yourself and skip the supplied bolts entirely.
2. Flexzilla L8250FZ Enclosed Air Hose Reel – Best for Dusty Workshops
Flexzilla Retractable Enclosed Plastic Air Hose Reel, 3/8 in. x 50 ft., Heavy Duty, Lightweight, Hybrid, ZillaGreen – L8250FZ
Enclosed UV-stabilized polypropylene
3/8 inch x 50 ft hybrid polymer hose
Positive latch every 18 inches
150 PSI max working pressure
Pros
- Enclosed shell keeps sawdust and spray off the hose
- Hybrid polymer hose and lead-in hose both included
- Swivel bracket mounts to wall or ceiling
- Two-year manufacturer warranty
- Adjustable hose stopper lets you change reach
Cons
- Effective reach is closer to 40 to 43 ft of the 50 ft on the drum
- Lead-in hose is only about 3 ft
- Locking latch can need several pulls to catch
- Retracts slowly when the hose is still pressurized
If your garage doubles as a woodworking shop, the enclosed shell is the whole point. Sawdust does not settle into the drum grooves the way it does on an open frame, and the hose stays clean enough to handle without a rag every time you grab it. UV-stabilized polypropylene also handles a sun-facing side wall without the UV chalking you get with cheaper plastic.
Flexzilla is the recurring community favourite on durability. In a Garage Journal air hose thread, owners described running Flexzilla hose in enclosed reels, open reels and plain loose loops for years with no problems, and that is the same material class in this reel. The included hybrid polymer hose flexes well in cold conditions and comes with a lead-in hose already attached, so you are not hunting for a matching whip hose after delivery.
The ratchet latches in 18 inch increments, which is more granular than a two-position lock and genuinely useful when you want exactly enough hose to reach a wheel without dragging slack across the floor. The adjustable hose stopper lets you cap the maximum pull when kids or a low ceiling are a factor.
Two specifications deserve a close read. Maximum working pressure is 150 PSI at 70F, well under the 300 PSI class most 3/8 inch reels claim, so it suits typical shop air but not high-pressure blasting work. And the 50 ft on the drum yields closer to 40 to 43 ft of useful reach once the hose is fully wound, so plan mounting distance with that in mind.
What to check before you buy
Confirm your air supply. At 150 PSI working pressure this reel suits standard compressor output but will not keep up with sandblasting or high-demand pneumatic tools that want more pressure and flow.
Check the mounting bracket design. Owners report that the bracket cannot be removed to position it, so the mounting holes are your only reference points. Mark them on the wall first with a template before drilling.
Where it falls short
The locking latch is the most common complaint. It can take two or three pulls before it catches, and retraction is noticeably slower while the hose still holds pressure, so you end up guiding the last stretch by hand.
The short lead-in hose also limits where the reel can physically sit. If your compressor is more than a few feet from the wall, plan to add a longer whip hose.
3. VEVOR 3/8 in x 50 FT Retractable Air Hose Reel – Best Value
VEVOR Retractable Air Hose Reel 3/8 IN x 50 FT Hybrid Air Hose Max 300PSI
3/8 inch x 50 ft hybrid polymer hose
300 PSI working pressure
Four non-snag guide rollers
5 ft lead-in, 1/4 inch NPT
Pros
- Four non-snag rollers reduce guide wear
- 300 PSI rating handles abrasive and blasting work
- 5 ft lead-in hose included
- Spring guard and rubber sleeve protect the mechanism
- 1/4 inch NPT connections match standard fittings
Cons
- You supply the fittings for both ends
- Included expansion bolts can be low quality
- Protective sleeves are fiddly to position during setup
- Black steel plates occasionally arrive warped
This is the spec sheet you want for the money. Four non-snag rollers, a 300 PSI working pressure rating and a 5 ft lead-in hose in the box, which are the three features that separate a reel that lasts from one that annoys you within a year. Only one other open-frame reel in this roundup uses as few as two rollers.
The material specification is unusually specific for this category: a Q235A frame, DC03 reel drum, 45 steel fixed ratchet and a 62Si-Mo tension spring with a POM guide wheel. That is what separates a spring that still pulls the hose home after ten thousand cycles from one that gives up. Temperature range is -4F to 113F, so it is a heated-garage reel rather than an unheated-winter one.
Owners report using it for sandblasting without a pressure drop, which tells you the 3/8 inch bore is genuinely open all the way through the drum. The 180 degree swivel bracket mounts to a ceiling, wall or floor, and the single-arm open frame keeps the profile narrow enough for a one-car garage wall.
It weighs 22 pounds and measures 16.9 by 15.8 by 7.3 inches, so mounting is a two-person job if you are putting it overhead. The open frame means sawdust and paint overspray settle on the hose, so this is a mechanical-work garage reel rather than a finishing booth reel.
What to check before you buy
Budget for fittings. The reel ships with hose, a pre-mounted bracket, a manual and four expansion bolts, but you need your own couplers at the compressor end and the hose end. Take a photo of your existing quick connects to match the thread.
Check your season. At a -4F low limit this hose stiffens in deep cold, so if your garage is unheated and you are north of the frost line, look at the hybrid or rubber options rated to -40F instead.
Where it falls short
Setup is fiddly rather than difficult. Owners note the protective sleeves are awkward to hold in place while you thread the bracket, and the steel plates can arrive slightly warped, which is worth checking before you tighten anything.
The supplied expansion bolts are also the weak link in the box. Many users buy their own anchors, and you should do the same if the wall is not solid concrete.
4. Goodyear L815153G Industrial Retractable Reel – Top Rated
Goodyear Air Hose Reel Retractable 3/8″ Inch x 50′ Foot SBR Rubber Hose Max 300PSI Heavy Duty Industrial Steel Single Arm Construction
3/8 inch x 50 ft SBR rubber hose
Rated -40F to 226F, 300 PSI working pressure
Fully enclosed multi-position ratchet
Four non-snag rollers, steel frame
Pros
- Widest temperature span in the roundup
- rated from -40F to 226F
- Resists water
- oil
- heat
- weather and abrasion
- Enclosed ratchet locks at any length
- Full flow solid swivel joint resists leaks
- Usable for both air and water service
Cons
- Lead-in hose is not included
- Single-arm frame is less stable than a twin-arm design
- Mounting hardware may not suit every surface
- Heavier build needs solid framing
The Goodyear reel is the one I would trust in an unheated garage where temperature swings all year. The SBR rubber hose carries a -40F to 226F range, and owners on the ar15.com outdoor reel thread point to Legacy and Goodyear hoses by name when durability over time is the deciding factor. The hose also resists water, oil, heat, weather and abrasion, so one reel can serve a wash bay and a repair bay.
Build quality is the story here. Heavy gauge industrial steel with a corrosion-resistant powder coating, CNC-stamped stiffening ribs, four non-snag rollers and a fully enclosed multi-position ratchet that locks at any length you stop at. The full flow solid swivel joint at the inlet is designed for service, because that joint is where cheap reels start weeping.
At 300 PSI working pressure it handles general automotive pneumatic work without drama, and the 11.79 kg weight plus the L-shape mounting base with groove reinforcement tells you this is meant to be bolted to solid framing and then forgotten about for years. Dimensions are 19 by 7.9 by 21 inches, so give it ceiling or high wall clearance.
Goodyear also draws endorsements alongside Legacy in an ar15.com outdoor reel thread where people were focused on durability over time rather than day-one features.
What to check before you buy
Plan for a lead-in hose. It is not in the box, so factor in a whip hose long enough to reach your compressor from the mount point without a slack loop on the floor.
Confirm your framing. At 11.79 kg with a steel drum, this needs a stud, a joist or a masonry anchor, not drywall anchors into hollow wall.
Where it falls short
It is a single-arm reel. Under a heavy pneumatic load the arm carries the whole reaction force, and a twin-arm design is steadier if you work with impact wrenches all day.
If you only need a light-duty reel for occasional tire inflation, this is far more machine than the job requires, and a simpler manual reel will serve you at a fraction of the outlay.

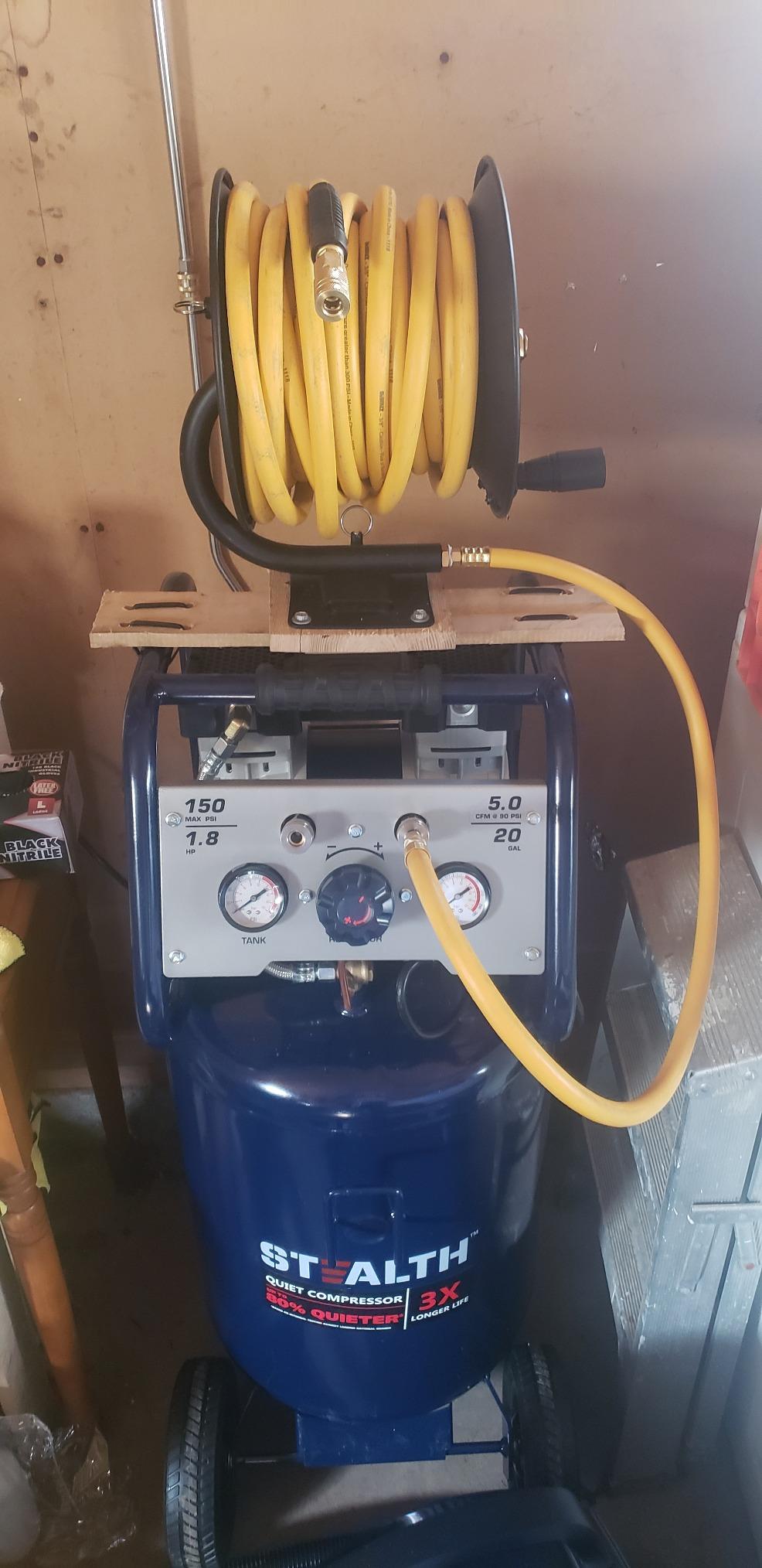

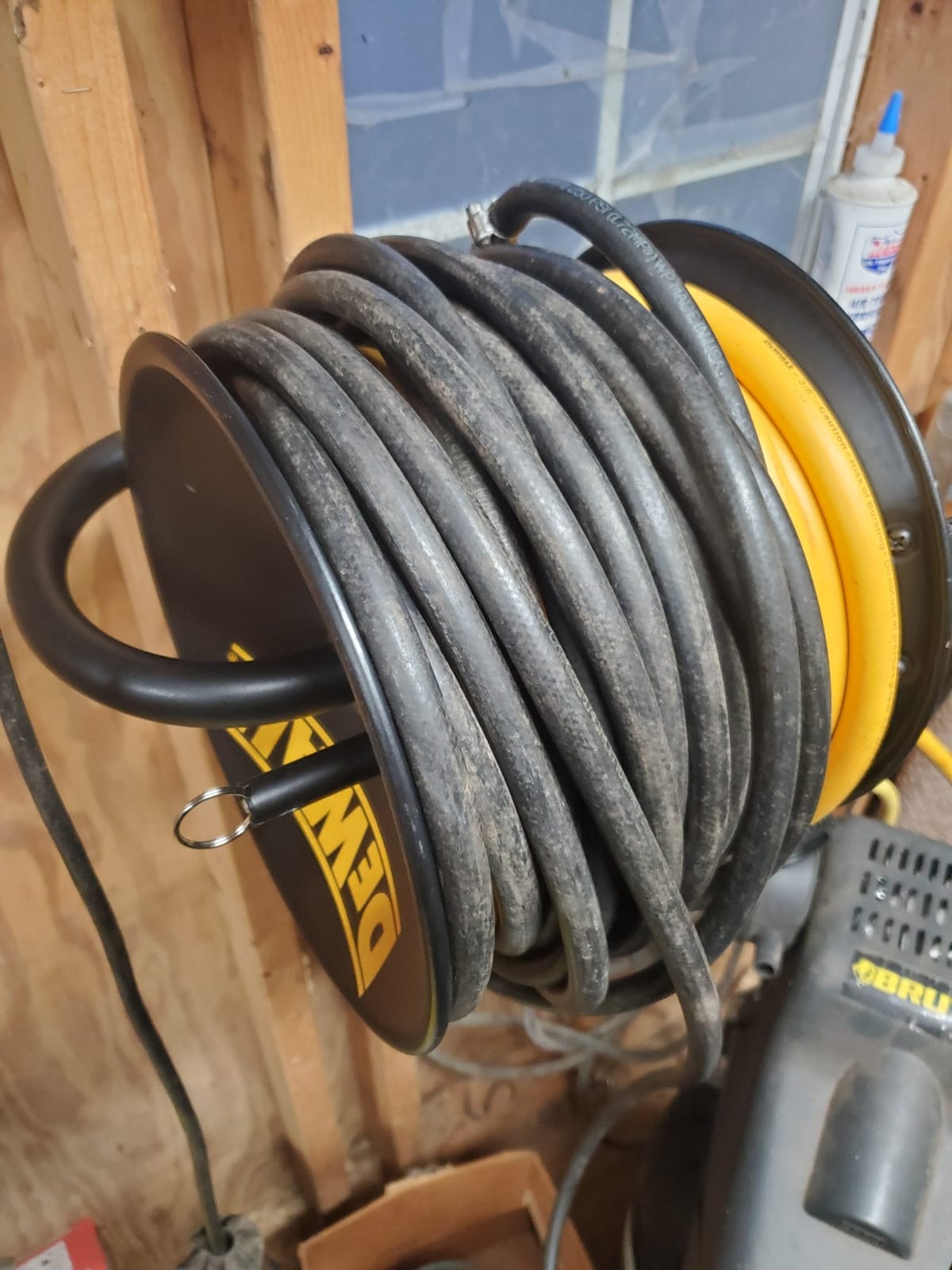

5. DEWALT DXCM024-0348 Manual Hose Reel – Best Manual Reel
DEWALT DXCM024-0348 3/8″ x 50′ Manual Hose Reel with Rubber Hose , Yellow
3/8 inch x 50 ft rubber air hose
Hand crank rewind, no spring
Quick-release pin mount
3 ft lead hose included
Pros
- No spring to weaken or break over time
- Manual control over exactly how much hose you deploy
- Quick-release pin makes it portable between workstations
- Integrated bend restrictor protects the hose at the frame
- Kink and oil-resistant rubber hose
Cons
- Lead hose is only 36 inches
- Cranking is real work every time
- Fixed wall mount with no swivel bracket
- Frame bar can bend beyond 50 ft of hose
There is a case for owning no moving parts. The most common complaint we saw across spring-driven reels in this roundup was tension fading after a year or two, and this hand-crank reel simply does not have that failure mode. If you have ever watched an auto-rewind reel fail to fully retract and then had to wind it back by hand, the manual option starts to look like good engineering.
The 3/8 inch by 50 foot rubber hose is oil and kink resistant, and the frame carries an integrated bend restrictor that stops the sharp 90 degree bend at the entry point, which is exactly where hoses normally crack from first. It weighs 17.3 pounds and mounts to a wall in a footprint of 12 by 11.75 by 13.6 inches, so it fits tight garage walls easily.
The quick-release pin is the sleeper feature. Pull the pin and the whole reel comes off the wall in seconds, so you can move it to the compressor, out to the driveway for tire work, or onto a bench. Owners mention being able to add another 50 ft of hose with modification, which turns it into a serious shop reel.
Manual winding does mean you are the self-leveling guide. Lay the hose in evenly as you crank and it stores fine; wind it in a rush and you get the same uneven stack that causes a self-leveling problem on auto-rewind units.
What to check before you buy
Test your patience and grip. Cranking 50 feet of rubber hose in is real work, and it happens every single time. If you pull a lot of hose several times a day, an auto-rewind reel will save you minutes over a year.
Measure the distance to your compressor. The included lead hose is 36 inches, so on a high wall mount or a compressor at the far end of the bay you will need an extension.
Where it falls short
There is no swivel bracket, so the reel stays fixed in one position. On a wall with an open frame beside it, watch the connector as you wind, because owners report it can hit the back of the reel.
It also has no hose guide rollers, which means the rubber takes the abrasion of laying against the frame on every pull. That is fine for a home garage and tiring for a professional shop.
6. DEWALT DXCM024-0343 Double Arm Hose Reel – Best for Truck Beds and Mobile Work
DeWalt DXCM024-0343 Double Arm Hose Reel with 3/8” x 50’ Premium Rubber Hose
Twin-arm steel frame, 3/8 inch x 50 ft rubber hose
Auto retract with four-roller guide
12-position ratcheting lock
Swivel connection for whip hose
Pros
- Twin-arm frame stays stable under heavy loads
- 12-position lock gives precise hose lengths
- Four-roller guide reduces abrasion on the hose
- External pawl is accessible for repair
- Swivel connection simplifies whip hose routing
Cons
- Pawl spring can arrive seated in the wrong factory hole
- Fairlead rollers are small and the hose rubs
- Very strong rewind force needs a controlled pull
- Proprietary hose fitting with no replacement available
- 28 pounds means a two-person ceiling mount
Mobile mechanics ask about this one repeatedly, and the twin-arm architecture is why. Two arms share the load instead of one, so the frame stays planted when you yank 50 feet of hose out under pressure. Truck-bed and van-wall mounting is where it earns its keep, and one member of our team has run a reel in this class on a service van for months without the wobble a single-arm unit shows.
The 12-position ratcheting lock lets you stop at fixed increments, and it matters on a truck where you want 15 feet, not 25. Auto-retraction through a four-roller guide keeps the hose off the frame as it winds, and the swivel connection on the reel makes whip hose routing far less of a puzzle.
It is heavy at 28 pounds with dimensions of 19.3 by 8.3 by 19 inches. That weight is a feature on a truck bed and a problem on a garage ceiling, so plan a two-person install and locate framing you can trust.
One assembly detail deserves attention before first use. Owners report the pawl tension spring arriving seated in the wrong factory hole, which causes premature wear and eventual breakage. Check where that spring sits and correct it if needed, because replacement parts for this mechanism are not easy to source.
What to check before you buy
Confirm the hose fitting is acceptable to you. It is proprietary, and owners who have had a fitting fail report that a replacement hose is not sold separately, which turns a hose problem into a reel problem.
Check your pull force expectations. The rewind is powerful, so a fast tug sends the connector back hard. Learn to pull slow near the end of the stroke before you hand it to anyone else.
Where it falls short
The fairlead rollers are small, so the hose rubs on the corners of the guide on its way in. It is a minor annoyance rather than a failure, but it shows up as surface wear on a year-old hose.
It also carries an initial rubbery odor, which clears after a few days of airing out and is not a defect.
7. Himimi 100 ft Retractable Air Hose Reel – Best for Long Reach
Retractable Air Hose Reel, 3/8″ x 100 Ft Hybrid Hose Air Compressor Hose Reel with 6.5 Ft Lead-in Max 300 PSI, Air Hose with Any Length Lock, Automatic Rewind, 180° Swivel Bracket, Quick Coupler
100 ft hybrid hose plus 6.5 ft lead-in
300 PSI, rated -40F to 140F
Auto lock at any length
180 degree swivel, brass fittings
Pros
- 100 ft of hose plus a 6.5 ft lead-in in the box
- No-memory hose material resists kinks
- UV and freeze resistant from -40F to 140F
- Brass fittings sealed with anaerobic sealant
- Built-in chaser winds the hose evenly
Cons
- Bulkier than 50 ft models and needs more clearance
- Couplers are not fitted to the hose ends
- Warranty period is not clearly stated
- Heavy unit for a small garage wall
Reach is the reason to buy this one. A hundred feet of hybrid hose plus a 6.5 ft lead-in covers a long two-car shop, a yard, or a pickup bed without chaining a second reel. At 300 PSI with a temperature range of -40F to 140F, it is also one of the few units here that handles an unheated northern garage and blasting work at the same time.
The winding system is the clever part. Pull the hose to the length you want, it clicks and locks, and a tug releases it for automatic retraction. A built-in chaser keeps the coil even, which is the mechanism that stops the uneven stacking that jams lesser reels, and the hose is specified as a no-memory material that resists taking a kink in the first place.
Fittings are brass with anaerobic sealant already applied, and the connections are 1/4 inch NPT with quick-connect couplers, so sealing leaks at the inlet is one less thing to worry about. The 180 degree swivel bracket pivots through a full half turn, and a single-screw quick-release mount makes removal for mobile work fast.
It weighs 24.5 pounds and measures 21.65 by 8.2 by 15.94 inches, so this is a wall you dedicate to the reel. The housing is durable polypropylene rather than steel, which keeps the weight down and the price sane but means it is not the pick for a welding bay or a truck bed that takes abuse.
What to check before you buy
Plan for a hardware store trip. Couplers are not fitted to the hose ends, so bring the hose end dimensions with you and match them to your compressor quick connects.
Measure your wall and your ceiling height. At nearly 22 inches long and 24.5 pounds, it needs a substantial section of wall and two people for an overhead install.
Where it falls short
Bulk is the honest drawback. Compared with a 50 ft reel this is a much larger object, and in a single-car garage it will dominate the wall it sits on.
The warranty period is not clearly stated, which is worth weighing if you care about long-term service, and the polypropylene housing is the least durable material in this roundup.

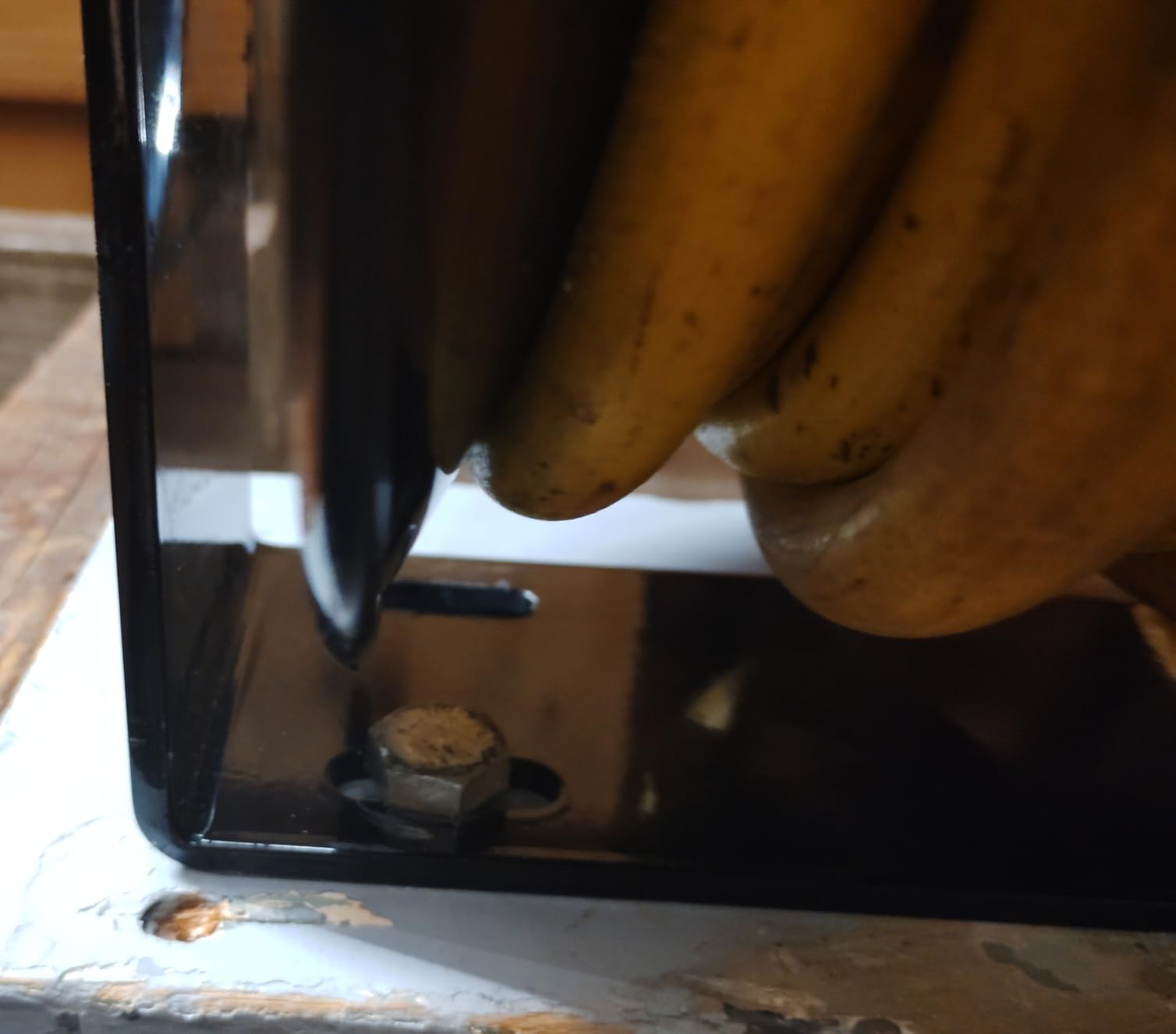

8. Ironton 100 ft Manual Reel – Best Entry-Level 100 ft Capacity
Ironton Air Hose Reel, Holds 3/8 in. x 100 ft. Hose, 300 PSI
Holds 100 ft of 3/8 inch hose at 300 PSI
18-gauge steel, powder coated
Manual smooth rewind
1/4 inch female brass fitting
Pros
- Holds 100 ft of 3/8 inch hose in a compact drum
- 18-gauge steel body with a powder-coat finish
- Standard 1/4 inch female brass fitting
- Wall or floor mount bracket included
- No spring mechanism to fail
Cons
- Air hose is not included
- Manual rewind only with no auto-retract
- 18-gauge steel can flex under heavy loads
- No swivel bracket or guide rollers
If you already own a good hose and just need somewhere to put it, this is the efficient answer. The drum holds 100 feet of 3/8 inch hose at up to 300 PSI, the body is 18-gauge steel with a powder-coat finish, and the inlet is a standard 1/4 inch female brass fitting that mates with ordinary air hose.
Owners consistently highlight the same thing about this reel: it has fewer things to go wrong. No spring to lose tension, no pawl to jam, no ratchet to misalign. The smooth manual rewind is designed to lay hose in without tangling, and for a compressor that sits in one spot and feeds one work area, that simplicity is a feature.
At 14.6 pounds and 18.12 by 10.5 by 12.5 inches, it mounts to a wall or a floor with the included bracket, and the freestanding option is useful if your garage has no good wall position near the compressor. It is a straightforward steel drum with a hand crank and nothing hidden.
Being reel-only does mean an extra step on day one. You need to buy 3/8 inch hose, crimp or screw a fitting onto it, and thread it onto the brass inlet yourself, so budget an evening for setup if you do not have hose already.
What to check before you buy
Confirm you are comfortable assembling it. Hose is not included, and fitting it to the inlet takes some care to get sealing correctly on the first attempt.
Work out whether 100 feet is what you actually want. If your compressor is three feet from the wall, 50 feet is plenty and this drum is oversized for the job.
Where it falls short
There is no swivel bracket, no guide rollers and no auto-retract, so this is a storage solution rather than a convenience solution. Every deployment is manual effort, every time.
Light-gauge steel can flex on a drum loaded to its full 100 foot capacity, so if you plan to run a heavy rubber hose at full extension, look for heavier steel or a smaller capacity.
9. Primefit 100 ft Manual Reel – Budget Pick
Primefit HRM38100 Manual Air Hose Reel with 100ft Capacity using 3/8″ ID Air Hose
Manual hand crank, steel construction
Fits 100 ft of 3/8 inch hose
1/4 inch NPT brass inlet
Wall mountable
Pros
- Fits 100 ft of 3/8 inch
- 150 ft of 1/4 inch or 50 ft of 1/2 inch hose
- Steel body weighing only 8.5 pounds
- Simple design with very few failure points
- Standard brass inlet and wall mount design
Cons
- Air hose is not included
- Manual crank only
- No swivel bracket and no guide rollers
- Light construction can flex under a full load
- Basic finish is less corrosion resistant
This is the reel to buy if you are storing hose you already own and you do not want to think about it again. It accepts 100 feet of 3/8 inch hose, 150 feet of 1/4 inch or 50 feet of 1/2 inch, so one reel covers every hose you own. A hand crank and a thick steel frame are the entire mechanism.
At 8.5 pounds it is one of the two lightest reels in the roundup, and that matters more than it sounds for an installation on a finished wall or in a truck where you are mounting alone. The 1/4 inch female NPT brass inlet is a standard size, so hose fitting is straightforward.
Owners treat this as a set-and-forget storage solution for a stationary compressor. There is nothing to adjust and nothing that wears with use, which is the appeal. The 18 by 14 by 17 inch footprint is compact enough for the end wall of a one-car garage.
It is also the one reel here that supports a 1/2 inch hose, which makes it a reasonable option if you are running higher-flow tools or a wash wand rather than a standard impact wrench.
What to check before you buy
Budget for the hose. It is not included, and at 100 feet of 3/8 inch you are buying one of the larger rolls in the category, so plan the fitting work as well as the purchase.
Check your wall substrate. This is a light reel on basic steel, so lag screws into studs are realistic, but a full drum of heavy rubber hose still needs a solid anchor point.
Where it falls short
Light construction is the main compromise. At 8.5 pounds the frame can flex when fully loaded, and there is no guide roller system to protect the hose as it comes off the drum.
There is also no swivel bracket, so the pull angle is fixed, and the basic finish is the least corrosion-resistant of the group. In a damp garage near a slab wall, wipe it down a couple of times a year.
10. Coxreels 117-5-100 Hand Crank Steel Reel – Best USA-Made Build
Coxreels 117-5-100 Hand Crank Steel Hose Reel, 100 Series, ¾” x 100’ – Easy-to-Use Compact Design – Adjustable Tension Break – Heavy-Duty Steel Construction, Made in the USA, Blue
3/4 inch x 100 ft steel hand crank reel
Solid brass full-flow NPT swivel
Adjustable tension brake
Powder coat, 2-year warranty
Pros
- Made in USA by a manufacturer with 90+ years of experience
- CNC-spun ribbed discs with rolled edges protect the hose
- Adjustable tension brake stops free-wheeling
- Hose loads without removing the reel from its mount
- Powder coat resists chips and rust
- Floor
- wall or ceiling mounting
Cons
- Axle is riveted so the drum blocks mounting access
- Threading connections can need real force
- Some reports of frame bending under commercial pressure
- Customer service has been unresponsive for some buyers
- Hose not included
Coxreels is the name professional shops gravitate to, and the manufacturing detail is the reason. The 100 Series uses CNC-spun discs ribbed with rolled edges, which is a much harder and more expensive part than a stamped plate. The rolled edges cradle the hose instead of letting it bear against a sharp corner, which is where most stored hoses eventually wear through.
The solid brass full-flow NPT swivel is a genuinely serviceable part. It can be removed, cleaned and resealed with thread tape, so a fitting that starts to weep is a fifteen-minute fix rather than a reason to replace the reel. An adjustable tension brake stops the drum free-wheeling during storage and transport, which matters if it lives on a truck.
It is made in the USA by a company with more than 90 years of experience and carries a 2-year manufacturer warranty, along with a powder coat finish rated against chips and rust. The frame is a heavy gauge U-shape steel, and the whole unit mounts to a floor, wall or ceiling, with variants in several hose diameters.
Note the 3/4 inch hose diameter on this model. That is a utility-grade configuration aimed at water, grease and washdown work rather than shop air, and it is why the reel comes without a hose. If your garage needs compressed air for tools, look at a 3/8 inch model instead.
What to check before you buy
Check your stud spacing. Some owners need an additional mounting bracket for standard 16 inch stud spacing, so measure before you commit to a wall position.
Be ready to force the threads a little. Connection threading is reported as demanding, so do not overtighten the fittings and do not assume a seized fitting is a defect.
Where it falls short
The axle is riveted rather than screwed, and the drum sits in the way during mounting, so this is the hardest of the ten to fit to a wall. Budget time and a second set of hands.
There are reports of frame bending and tearing under sustained heavy commercial use, and some buyers report slow customer service response, so this is a reel for a shop that values longevity and repairability more than convenience.
How to Choose the Right Air Hose Reel for Your Garage
Match the reel to your garage footprint
Start with the distance from the compressor to the farthest point you work, then work backwards. Add your lead-in hose length to the drum capacity and compare that total to your measured reach. A one-car garage rarely needs more than a 50 ft drum, a two-car shop with a lift usually does, and a yard, a truck bed or a farm-style property is where 100 ft reels start earning their extra size.
The 50 ft reels in this roundup vary more in real reach than their labels suggest. One owner-reported figure puts the usable pull on a nominally 50 ft enclosed reel at closer to 40 to 43 ft, because some length is always lost to the wound coil and the lead-in. Measure to the nearest foot, not the nearest ten.
Decide between a retractable and a manual reel
Retractable reels win on convenience. You pull to the length you want, it locks, and a tug sends it home. That saves a minute or two per job and keeps the hose off the floor the moment you stop using it. They win on tidiness in a busy shop and lose on the one failure mode owners complain about most: spring tension fading, usually after a year or two of daily use.
Manual reels win on durability. There is no spring, no pawl and no motor, so there is nothing to lose tension and nothing to fatigue. They lose on effort, because you crank every time and you become the winding mechanism. If you use air tools a few times a week, manual is the better long-term buy. If you use them every day, auto-rewind is worth the extra maintenance risk. Our full air hose reel roundup works through both styles in more depth.
Get the pressure and diameter right
Most shop air sits well below 300 PSI, so a 300 PSI reel is comfortable headroom for impact wrenches, air ratchets and inflators. Sandblasting and paint work ask for more, and a 150 PSI reel will simply fail to keep up. Watch the working pressure figure rather than the burst figure, because marketing copy leans on the much larger burst number.
Diameter decides airflow. A 3/8 inch bore is the standard for automotive pneumatic tools and is what nine of the ten reels here use. A 1/4 inch hose restricts flow and slows large tools down, and a 1/2 inch bore is for high-volume work such as wash wands and sandblasting. You can run different hose diameters on a manual drum if the capacity rating allows it, but an auto-rewind reel is wound for one specific diameter and will wind unevenly with anything else.
Pick the hose material for your climate
Rubber and SBR hoses hold up across the widest temperature band, and the Goodyear reel here is rated from -40F to 226F, which is what an unheated garage in a northern climate needs. Rubber is also the most resistant to oil, abrasion and weather, and it is heavier to lift by hand.
Hybrid polymer sits in the middle and is the smartest choice for most home garages. Several reels here are rated to -40F on the cold end, and the material stays flexible where a PVC line would go stiff and start cracking. The tradeoff is that hybrid has less heat tolerance than rubber, so a reel rated to 113F or 140F is not the right pick for a welding bay or a booth running a hot abrading tool.
Look for build quality, not feature lists
The honest answer to which air hose reel is the best quality is that the guide roller count and the mounting hardware tell you more than the badge. Two rollers means the hose is guided only at the top and bottom; four non-snag rollers spread the wear and reduce abrasion at the drum. Check whether the hardware includes concrete expansion bolts, wood lags, or nothing at all, because a reel that arrived with no usable anchors has an installation problem before you have even unboxed it.
Two identical-looking 50 ft reels can differ enormously in the parts that wear out. Powder-coated steel, brass fittings and a self-leveling guide with a multi-position ratchet all add cost, and forum owners consistently report that the reels which survive multi-year ownership are the ones with a replaceable hose and a hardware set that fits a real wall.
Enclosed or open face?
Enclosed housings protect the hose from sawdust, overspray and shop grime, and they keep the coil clean when you grab it with gloved hands. That makes them the right call in a woodworking shop or a paint area. Open frames are cheaper, easier to inspect and easier to service, and they shed grime instead of trapping it, which makes them better in a dirty mechanical bay where you will not notice a dusty hose anyway.
Account for the lead-in hose
The lead-in hose connects the reel to your compressor, and its length decides where the reel can physically sit. Two reels here ship with a generous one, at 5 ft and 6.5 ft, while others include a 3 ft or 36 inch lead and two include none at all. Count the lead-in length as part of your total reach when you measure, and add a longer whip hose if your compressor sits at the far end of the bay.
How to Install an Air Hose Reel in a Garage
Find the studs or choose your anchors. A loaded steel reel is not a drywall job. Run a stud finder, mark two studs where the bracket holes line up, or plan on masonry anchors if the wall is concrete block.
Pick the height. Ceiling or high-wall mounting keeps the hose out of the work area and stops vehicles hitting it. Mount high enough that the drum clears a vehicle hood and low enough that you can reach the hose end comfortably.
Check the reel arc. Swing the swivel through its full range and confirm the hose reaches every work corner with the hose still taut. A reel mounted to a corner with a limited swivel will leave you pulling sideways against the drum.
Install the bracket with structural fasteners. If the supplied bolts are concrete expansion bolts, do not use them on a framed wall. Use structural lag screws into studs, rated for well over the loaded weight of the reel plus hose.
Hang the reel and attach the lead-in hose. Connect the lead-in to your compressor outlet with the correct fitting type, using thread sealant on the NPT threads. Keep the slack loop off the floor.
Test the full extension. Pull the hose all the way out to the stopper, confirm the ratchet holds at your working lengths, then let it retract and watch that it winds evenly and stops where it should.
Check the hose monthly for a bulge, a chafed spot or a soft spot near a fitting, and replace it rather than patching it. A hose that whips under pressure is a real hazard, and a failing fitting is the failure that tends to happen without warning.
Frequently Asked Questions
Which air hose reel is the best quality?
Build quality shows up in the guide roller count, the hose fittings and the mounting hardware. Look for four non-snag rollers, brass or steel fittings, a powder-coated steel frame and fasteners that suit your wall. The Goodyear L815153G and the DEWALT DXCM024-0343 have the most robust hardware here, while cheaper reels often ship with only two rollers and concrete bolts.
Are metal or plastic air hose reels better?
Steel frames handle heavy loads, heat and impact better, and they are the right choice for professional shops and truck beds. Plastic or UV-stabilized polypropylene housings are lighter, resist corrosion and cost less, which makes them a good fit for a home garage and a dusty woodworking shop. Match the housing to the room rather than declaring one material a winner.
Are retractable air hose reels worth the money?
For daily use they usually are, because they remove the manual winding step and keep the hose off the floor automatically. The catch is the spring, which is the component most likely to lose tension after a year or two of constant cycling. If you only use air tools a few times a week, a manual hand-crank reel gives you the same storage with fewer parts to fail.
What length air hose reel do I need for a two-car garage?
Measure from the proposed mount point to the farthest bay or work corner, then add your lead-in hose length. Most two-car garages are served by a 50 ft drum, and a 100 ft reel is worth it when you also work outside, on a truck, or across a large shop floor. Remember that a nominally 50 ft drum often yields closer to 40 to 43 ft of usable pull.
What PSI rating do I need for automotive work?
Standard shop air and most pneumatic tools such as impact wrenches and inflators sit well under 300 PSI, so a 300 PSI reel gives comfortable headroom. Sandblasting and paint equipment ask for more, and a reel rated at 150 PSI will simply fail to keep up. Judge the working pressure figure rather than the much larger burst pressure quoted in most listings.
Are retractable air hose reels better than manual reels?
Retractable reels are better for convenience and tidiness, since they lock at set lengths and rewind on a tug. Manual reels are better for longevity, because they have no spring, pawl or motor to wear out. Choose retractable if you use air tools daily, and manual if your use is occasional or you already have a reel that has been trouble-free for years.
Can I use an air hose reel with different hose diameters?
Some manual drums are rated for several diameters, with one here fitting 100 ft of 3/8 inch, 150 ft of 1/4 inch or 50 ft of 1/2 inch hose. Auto-rewind reels are wound for one specific diameter and will stack unevenly with anything else. Check the capacity rating on the drum before you buy, and match the inlet fitting to your hose.
How do I install an air hose reel in a garage?
Find two studs or plan on masonry anchors, because drywall cannot carry a loaded steel reel. Mount high on a wall or to the ceiling so the drum clears a vehicle, swing the swivel through its full range to confirm reach, then secure the bracket with structural fasteners matched to the wall. Connect the lead-in hose to the compressor and test the full extension and rewind.
The Best Air Hose Reel for Your Garage in 2026
For most garages, the Giraffe Tools 50 ft reel is the pick: 300 PSI, a hybrid hose rated to -40F, brass fittings on a steel frame, and the deepest ownership history of anything in this roundup. In an unheated northern garage, the Goodyear L815153G is the safer bet because its SBR hose carries a -40F to 226F range. For a dusty woodworking shop, the enclosed Flexzilla L8250FZ keeps sawdust out of the coil, and the VEVOR reel is the value route when you want four guide rollers and 300 PSI without the premium.
Work from a truck or van, pick the DEWALT double-arm model, because the twin arms stay planted under a hard pull. Use air tools only occasionally and you will not miss an auto-rewind unit, so the DEWALT hand-crank reel or the Ironton gives you simpler hardware with no spring to fail. Whatever you choose, buy four-roller guidance and fasteners that match your wall, and that decision alone will decide whether the reel is still working for you in 2026.
